Product details of the electrical cabinet air conditioner
Product Overview
Quick Thermal electrical cabinet air conditioner is the perfect example of the most exquisite craftsmanship in the industry. The product has satisfying functions that customers need and require. Except our professional service, our electrical cabinet air conditioner is also great in its quality.
Product Information
Quick Thermal's electrical cabinet air conditioner has more advantages over similar products in terms of technology and quality.
Product Design Feature

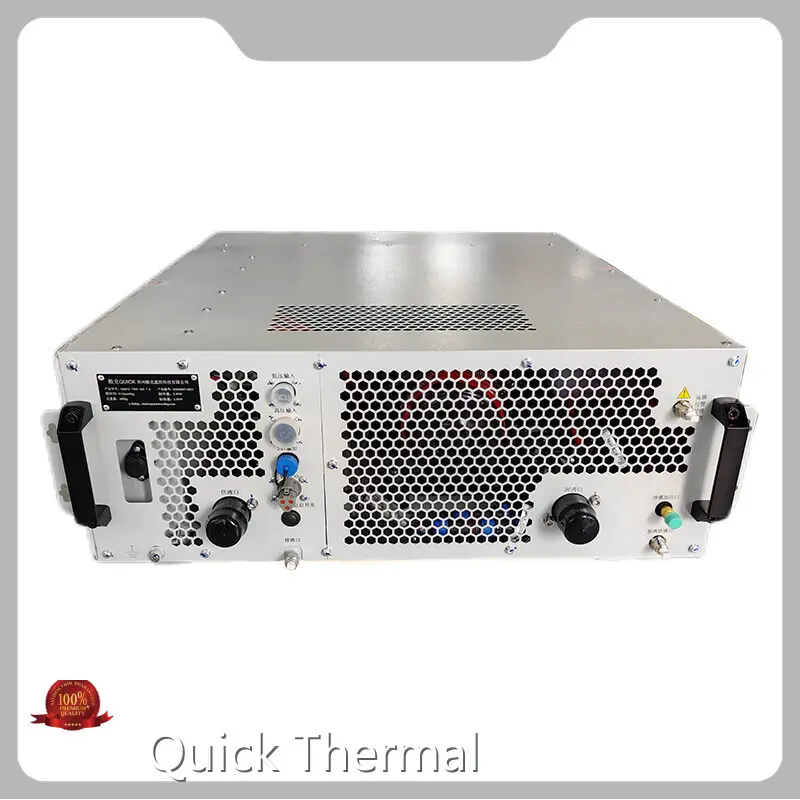

In terms of energy efficiency, the TWA 050 T A adopts advanced frequency conversion technology, equipped with a variable frequency compressor and a speed-regulating fan, which not only enhances the operational efficiency of the equipment but also significantly reduces energy consumption. This design makes the equipment more economical during long-term operation and also reduces the impact on the environment.
In addition, the RS-485 and CAN communication functions of the chiller provide the possibility of real-time remote monitoring for users, increasing the control flexibility of the equipment. Whether it is in a data center that requires precise control or a communication base station with specific remote management needs, the TWA 050 T A can meet these requirements.
The high reliability of the TWA 050 T A means that it can adapt to uninterrupted operation for 7*24 hours, which is crucial for ensuring the continuous operation of critical applications. And its lightweight and compact size make this chiller an ideal choice for mobile applications or small places, such as small data centers, laboratories, or medical facilities.
In summary, the compact design, energy-efficient frequency conversion technology, flexible communication protocol support, and high reliability of the TWA 050 T A air-cooled chiller make it an ideal solution for occasions with limited space but strict requirements for heat dissipation performance.
Product parameter
Name | Air Cooled Chiler |
Model | TWA 050/T/A |
Power Supply | 220V 50Hz |
Cooling Capacity | 5KW @W18/L35 |
Cooling Power Consumption | 2.3KW @W18/L35 |
Max Power Consumption | 3.5KW |
Max Work Current | 20A |
Supply water temperature | 18℃ |
Rated water flow | 2.1m³/h, External Lift: 8m |
Heater | 2KW |
Heating Power Consumption | 2.4KW |
Working Temperature Range | -30℃~+50℃ |
Max Noise Level | ≤70dB(A) |
IP Grade | IPX5 |
Net Weight | 80kg |
Refrigerant | R410A |
Dimensions | 245x700x900(mm,HxWxD) |
CE&RoHS Compliant | YES |
Surface Treatment | Outerdoor type powder coating, standardcolor: RAL7035 |
Communication Function | RS 485 MODBUS RTU/CAN |
Altitude | 0-4000m (Derating by 3%/1000m) |
Refrigerating medium | 50% Glycol water solution |
Company Information
Suzhou Quick Thermal Control Technology Co.,LTD plays a great role in global market for electrical cabinet air conditioner. We are highly critical about the materials and finishes of every electrical cabinet air conditioner. Our tenet is 'Integrity Management and Mutual Benefit'. Under this, we will spare no effort to provide customers with professional guidance and excellent service.
We are committed to guaranteeing the product quality and after-sales service. Welcome to contact us for cooperation!
