Quick Cabinet air conditioner 220VAC 5000W Remote control Battery

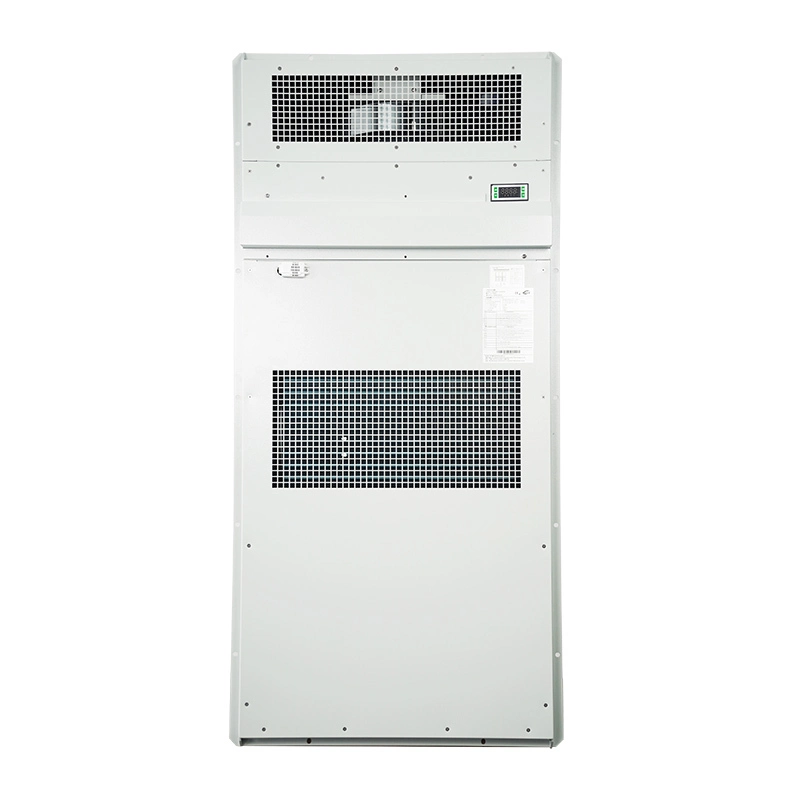

The 18825C TA050 E A outdoor cabinet air conditioners are designed to provide high-performance climate control solutions for harsh outdoor environments. They are developed for critical applications such as wireless communication stations, battery energy storage solutions, and industrial automation control units, ensuring equipment maintains optimal performance under extreme weather conditions. These air conditioning units can operate stably in a wide temperature range from -40°C to +55°C, with outstanding weather resistance and corrosion resistance.

    oops...!

    no product data.

    Go to homepage

    Product Design Feature


    The advanced electronic control technology of the 18825C TA050 E A integrates remote measurement, communication, and control functions, enabling automatic protection and comprehensive self-diagnostics. The automatic protection features include but are not limited to overheating protection, overcooling protection, and compressor protection, ensuring timely responses to abnormal conditions and preventing damage. The self-diagnostic capabilities monitor the system status in real-time, identifying and reporting potential issues promptly.


    The 18825C TA050 E A uses the environmentally friendly refrigerant R134a, reducing environmental impact while improving energy efficiency and reducing long-term operating costs. With an RS485 communication port supporting the MODBUS-RTU protocol, these air conditioning units can be easily integrated into existing intelligent control systems for remote monitoring and control. The LED display and field-changeable settings provide users with great flexibility and convenience.

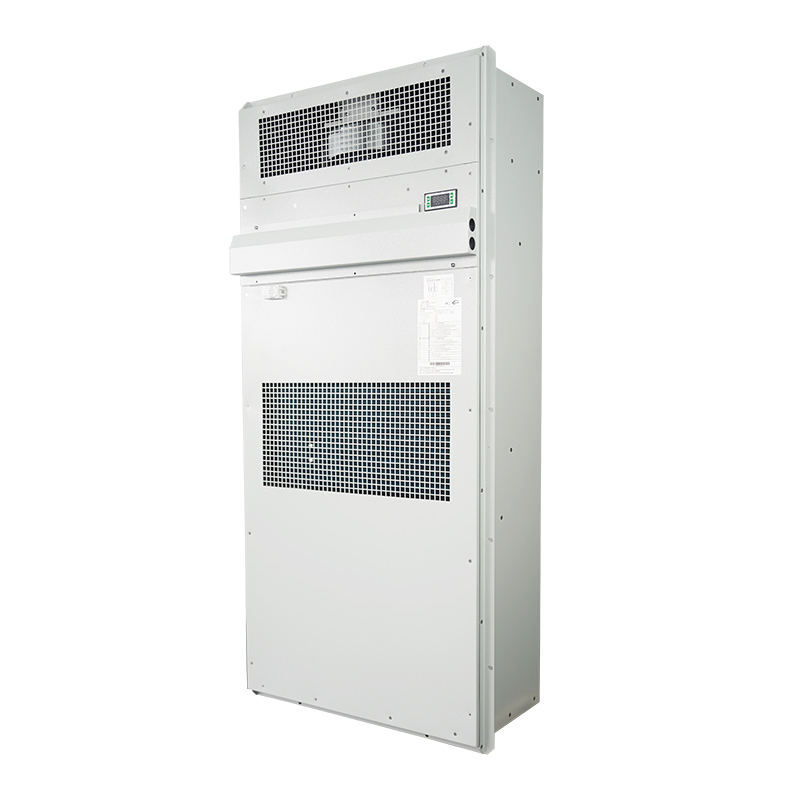

    DSC06820

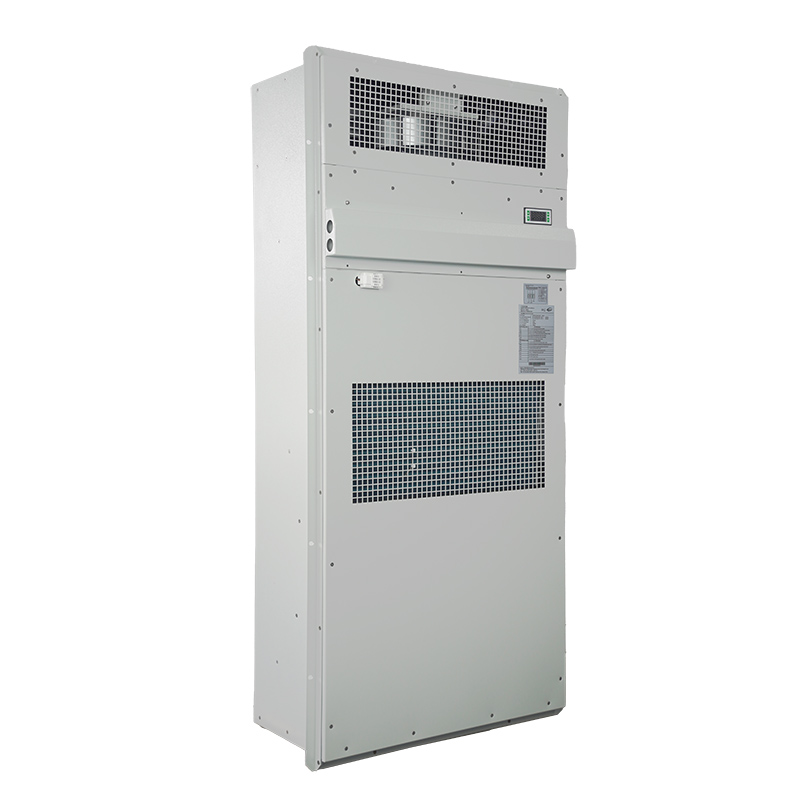

    DSC06818

    In addition, the 18825C TA050 E A features heating and humidity control functions, as well as dry contact alarm outputs, enhancing its application capabilities in variable environments. The high protection level IP55 and outdoor powder coating treatment ensure durability for long-term outdoor use. The design concept of the 18825C TA050 E A is to ensure stable operation under various outdoor conditions while providing user-friendly operation interfaces and flexible installation options.

    Product parameter

    Name Outdoor Cabinet Air Conditioner
    Model TA050/E/A
    Mounting Method Semi-embedded Mounting
    Power Supply GCEd eXI FEA A50Hz
    Cooling Capacity 5000W@L35/L35
    Power Consumption 2000W@L35/L35
    Cooling Capacity 3700W@L35/L55
    Power Consumption 2500W@L35/L55
    Internal Airflow 1410m /h
    Working Temperature Range 40℃~+55℃
    Max Noise Level 65dB(A)
    IP Grade IP55
    Net Weight 95kg
    Refrigerant R134a
    Dimensions 1350x620x300(mm, HxWxD)
    CE&RoHS Compliant YES
    Surface Treatment Outdoor type powder coating,standard color:RAL7035
    Heater 3000W
