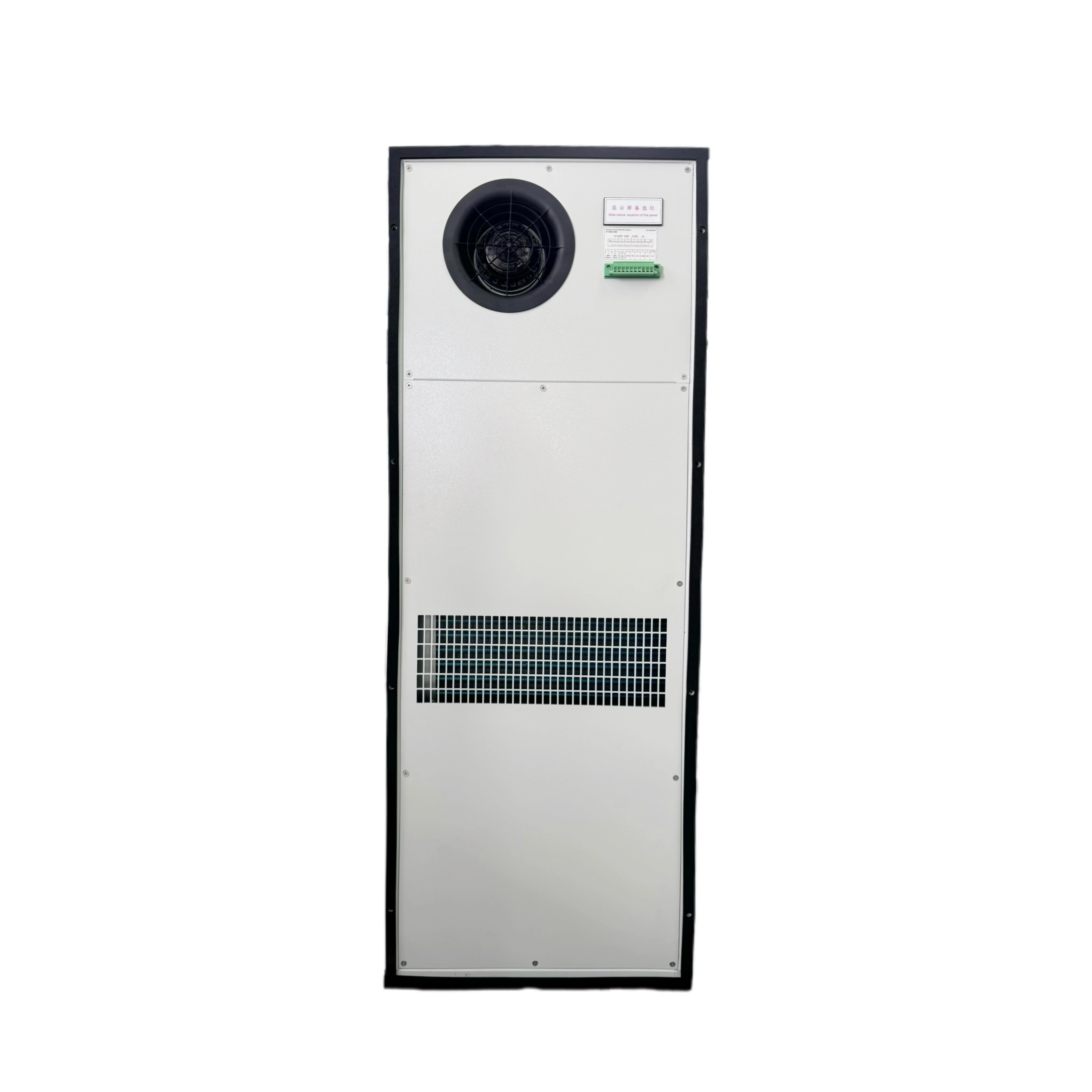

Quick Cabinet Air Conditioner Indoor 230V 2000W Built in condensed water evaporator Side Mounting
Product Design Feature
1. Remote Monitoring and Control: Equipped with RS485 communication port (MODBUS-RTU protocol) for remote measuring, communication, and control.;
2. Comprehensive Protection and Self-Testing: Multiple automatic protection functions and comprehensive self-testing capabilities to ensure reliable operation.;
3. High-Quality Components: Uses well-known brand components and strict process control to ensure high quality and reliability.;
4. Adaptability to Harsh Conditions: Suitable for harsh operating conditions (T3 classification) and uses environmentally friendly R134a refrigerant.;
5. User-Friendly Interface: LED display allows for easy on-site settings adjustment.;
6. Optional Features: Filter net is optional for enhanced air quality, and dry contact alarm output (NO/NC) is available.;
7. Built-in Evaporator: Integrated condensed water evaporator eliminates the need for external drainage.
8. Energy Efficiency: Designed for energy-efficient operation with low noise levels (max 65dB(A)).;
9. Flexible Installation: Side mounting design for easy integration into various enclosures.;
10. Compliance with Standards: Meets CE and RoHS standards, ensuring safety and environmental friendliness.;
Product parameter
| Name | Indoor Cabinet Air Conditioner |
| Model | TA 020 /S/A |
| Mounting Method | Side Mounting |
| Power Supply | 230VAC±15% 50Hz |
| Cooling Capacity | 2000W@L35/L35 |
| Power Consumption | 870W@L35/L35 |
| Cooling Capacity | 1200W@L35/L55 |
| Power Consumption | 1090W@L35/L55 |
| Internal Airflow | 650 m³/h |
| Working Temperature Range | -40℃~+55℃ |
| Max Noise Level | 65dB(A) |
| IP Grade | IP54 |
| Net Weight | 40Kg |
| Refrigerant | R134a |
| Dimensions | 1112x412x170(mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating, standard color: RAL7035 |
| Filter net | Optional |
| Condensed water evaporator | Optional |
