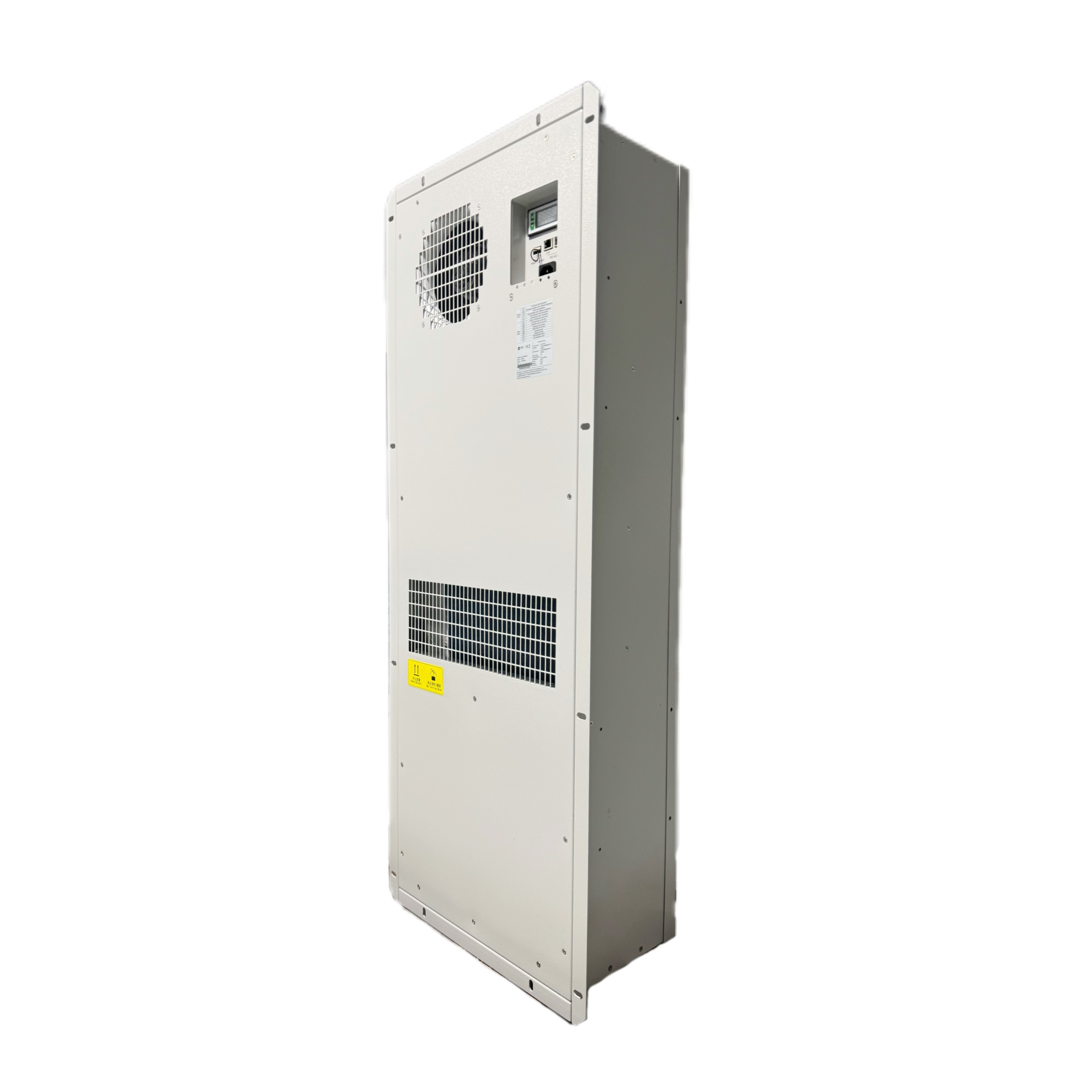

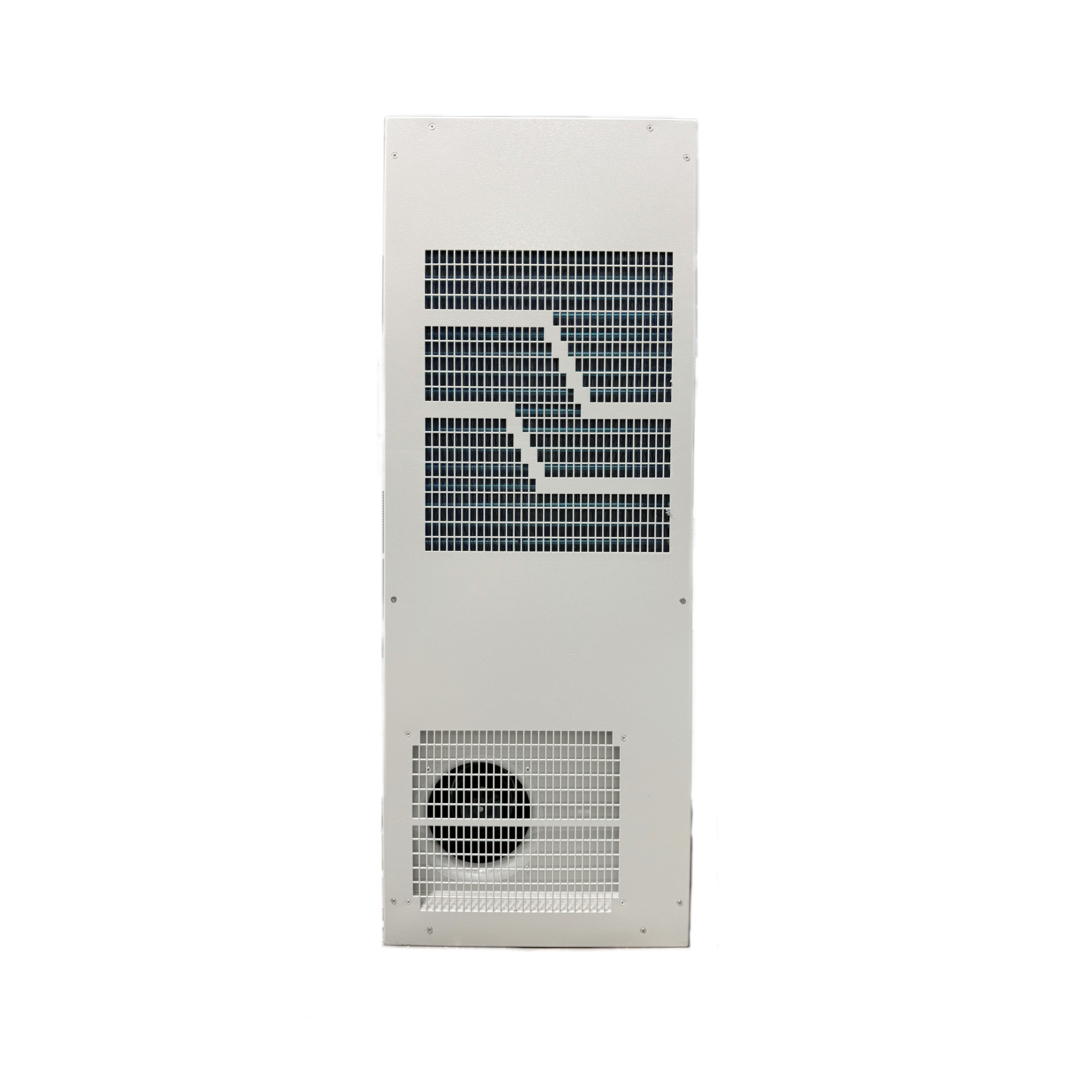

Quick Cabinet Air Conditioner Outdoor 230VAC 2550W Comprehensive fault self-diagnosis function
This is a highly efficient cooling device designed specifically for outdoor communication cabinets, battery cabinets, electrical cabinets, and industrial control cabinets that require heat dissipation. The product uses advanced processes and high-quality components from international brands, ensuring its excellent stability and reliability. It features remote measurement, remote signaling, and remote control capabilities, and can achieve multiple automatic protections and comprehensive fault self-diagnosis functions, thereby effectively reducing maintenance costs and improving the operational efficiency of the equipment.
Product Design Feature
1. High-Temperature Adaptability: The product is designed to operate effectively in T3 high-temperature conditions, ensuring stable performance in extreme outdoor environments
2. Environmentally Friendly Refrigerant: It uses R134a, an environmentally friendly refrigerant, complying with environmental standards and reducing its impact on the environment, aligning with sustainable development requirements
3. Multiple Protection Features: Equipped with multiple protection functions, it effectively prevents faults such as overloads and overheating, ensuring the safe operation of the equipment and extending its service life
4. Visual Human-Machine Interface: Features an intuitive visual human-machine interface, allowing users to easily monitor equipment status and perform operational settings, enhancing user convenience
5. RS485 Communication Interface: Supports an RS485 communication interface with the MODBUS-RTU protocol, facilitating data exchange and remote control with other devices, enabling intelligent management
6. LED Digital Display: Utilizes an LED digital display with field-settable parameters, allowing users to view and adjust equipment operating parameters in real-time, meeting various usage requirements
9. High Protection Rating: Achieves an IP55 protection rating, providing excellent dust and water resistance, effectively protecting internal components in harsh outdoor environments and ensuring stable operation
10. Low Noise Operation: Operates with a maximum noise level of 69dB(A), ensuring low noise levels during operation and minimizing interference with the surrounding environment, making it suitable for noise-sensitive areas
11. Semi-Embedded Installation: Employs a semi-embedded installation method, which is easy to install, space-saving, and facilitates maintenance and inspection, enhancing the flexibility and usability of the equipment
Product parameter
| Name | Outdoor Cabinet Air Conditioner |
| Model | TA 025/S/A |
| Mounting Method | Semi-embedded Mounting |
| Power Supply | 230VAC±15% 50Hz/60Hz |
| Cooling Capacity | 2550W@L35/L35 |
| Power Consumption | 880W@L35/L35 |
| Cooling Capacity | 2045W@L35/L55 |
| Power Consumption | 1120W@L35/L55 |
| Internal Airflow | 700 m³/h |
| Working Temperature Range | -40℃~+55℃ |
| Max Noise Level | 69dB(A) |
| IP Grade | IP55 |
| Net Weight | 50Kg |
| Refrigerant | R134a |
| Dimensions | 1116x415x205(mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating, standard color: RAL7035 |
| Heater | Option（800W） |
