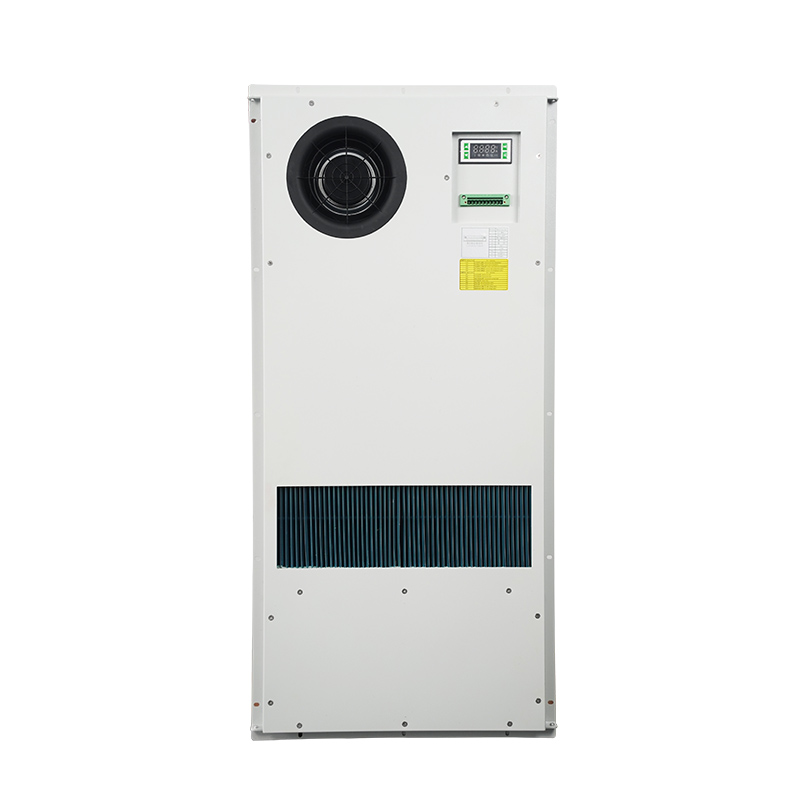

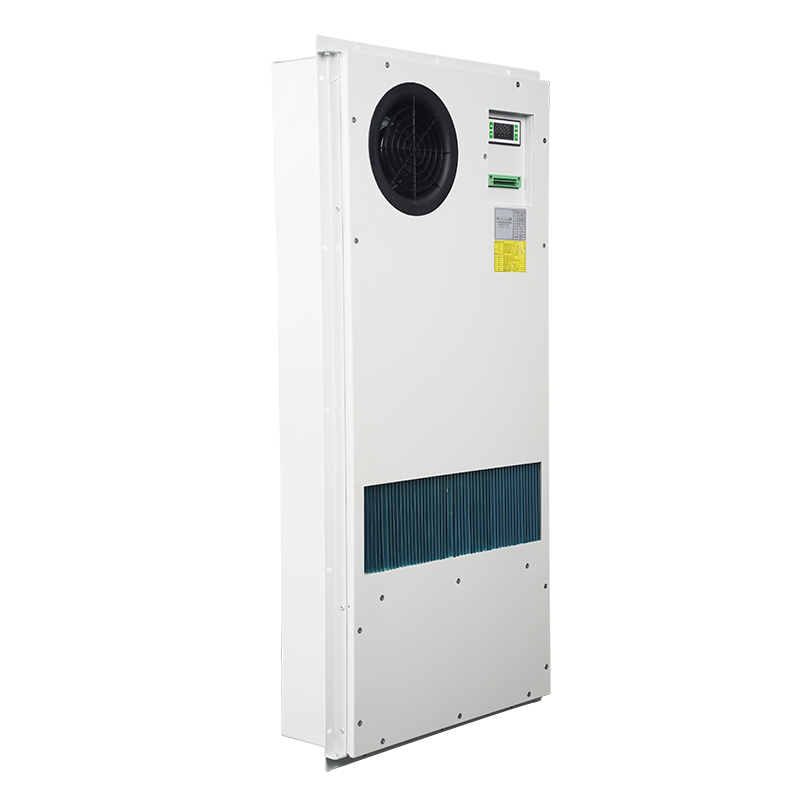

Quick Heat Exchanger 120W/K DC Driven Self-diagnostics Automatic Protection Low Noise
The 1219B TE 012 E D model DC cabinet heat exchanger is highly favored in the market for its excellent heat dissipation performance and low-noise operation. This heat exchanger utilizes a DC drive mechanism to ensure stability and quiet operation under various working conditions. Its self-diagnosis and automatic protection features further enhance the reliability and safety, making it an ideal choice for applications requiring moderate cooling solutions.
Designed with a compact form, this heat exchanger is particularly suitable for spaces with limited room but high heat dissipation requirements, such as small data centers or communication base stations. It not only saves space but also facilitates easy installation and deployment.
Product Design Feature
1. Intelligent stepless fan speed adjustment: Auto match cooling demand, low noise and power saving
2. Telecom-standard RS485 (YD/T1363.3): Realize remote measurement, signalling and adjustment
3. Ultra-long service life: ≥70,000 working hours or 10 years for outdoor telecom sites
4. Wide temperature adaptability -40℃~+65℃, optional 800W heating for low-temperature areas
5. Full fault self-diagnosis + switchable NO/NC dry contact alarm output
6. IP55 outdoor anti-corrosion structure, premium imported fan parts for high stability
7. Semi-embedded mounting, complete installation & protective cover design specifications
Application Scenarios
- Outdoor 4G/5G communication base station cabinets, wireless RRU equipment enclosures
- Off-grid solar-wind hybrid battery energy storage cabinets
- Industrial automation electrical control cabinets, charging pile control boxes
- Unattended outdoor power distribution terminal cabinets, monitoring equipment housings
Product parameter
| Name | DC Cabinet Heat-Exchange | |
| Code | 1219B | |
| Model | TE 012/E/D | TE 012/E/D/H08 |
| Mounting Method | Semi-embedded Mounting | |
| Power Supply DC | -48V±20% | |
| Rated current DC | 4.4A | |
| Start-up current DC | 5.3A | |
| Cooling Capacity | 120W/K | |
| Fans Power Consumption | 190W | |
| Fans | 2*R1G175 | |
| Internal Airflow | 850m³/h | |
| Rated voltage AC | NA | 220VAC±20% |
| Frequency AC | NA | 50～60±3Hz |
| Rated current AC | NA | 3.6A |
| Heater Power | NA | 800W |
| Working Temperature Range | -40℃~+65℃ | |
| Noise Level | 50~65dB(A) | |
| IP Grade | IP55 | |
| Net Weight | 25kg | |
| Dimensions | 994x416x192(mm,HxWxD) | |
| CE&RoHS Compliant | YES | |
| Surface Treatment | Outdoor type powder coating | |
| standard color:RAL7035 | ||
