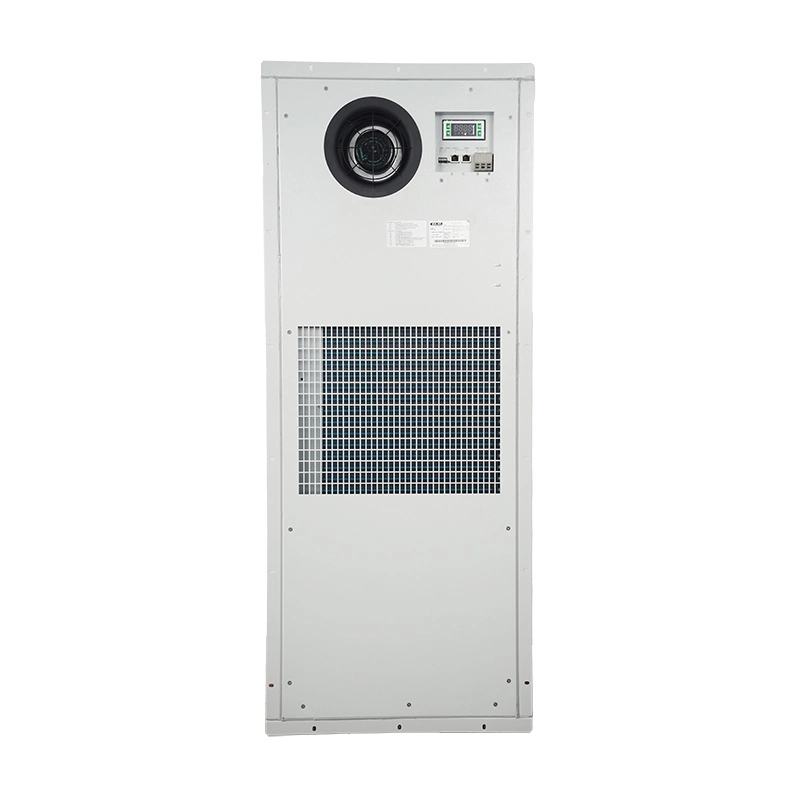

Quick Air Conditioner Outdoor 3000W Self-protective Semi-Embedded

Suzhou Quick Temperature Control Technology Co., Ltd. has introduced the 188530 TA030 E D model air conditioner, a high-performance direct current air conditioner designed for large outdoor cabinets and battery cabinets. It is tailored for applications requiring substantial cooling capacity, offering exceptional efficiency and performance.

    oops...!

    no product data.

    Go to homepage

    Product Design Feature

    This air conditioner has a broad power supply voltage range (DC44~59V) and a wide operating temperature range (-40℃ to +55℃), ensuring stable operation under extreme climatic conditions and reliability in various environments. With a cooling capacity of up to 3000W@L35/L35 and a low power consumption of 860W@L35/L35, it demonstrates its high energy efficiency.


    Measuring 1154x489x225mm and weighing 60kg, it is suitable for installation in large outdoor cabinets and battery cabinets. The internal airflow reaches 800m³/h, coupled with a maximum noise level of 65dB(A), ensuring efficient heat dissipation while maintaining a quiet environment.

    DSC06849
    DSC06851

    Furthermore, the 188530 TA030 E D model features an outdoor powder coating with a standard color of RAL7035, enhancing its durability and protection in outdoor environments. As the high-power model in the series, this 3000W air conditioner is specifically designed for outdoor cabinets that require significant heat dissipation, offering more installation flexibility with semi-recessed installation.


    Self-protection features ensure safety and reliability under various operating conditions. The design of this product focuses on high efficiency and high protection levels, making it an ideal choice for heat dissipation in heavy-duty outdoor cabinets, providing stable cooling support in both the sweltering heat of summer and the biting cold of winter.

    Product parameter

    Name Outdoor Cabinet Air Conditioner
    Model TA 030/E/D
    Mounting Method Semi-embedded Mounting
    Power Supply -48VDC
    Cooling Capacity 3000W@L35/L35
    Power Consumption 860W@L35/L35
    Cooling Capacity 1800W@L35/L55
    Power Consumption 1020W@L35/L55
    Internal Airflow 800m³/h
    Working Temperature Range 40℃~+55℃
    Max Noise Level 65dB(A)
    IP Grade IP55
    Net Weight 60kg
    Refrigerant R134a
    Dimensions 1154x489x225(mm,HxWxD)
    CE&RoHS Compliant YES
    Surface Treatment Outdoor type powder coating,standard color:RAL7035
