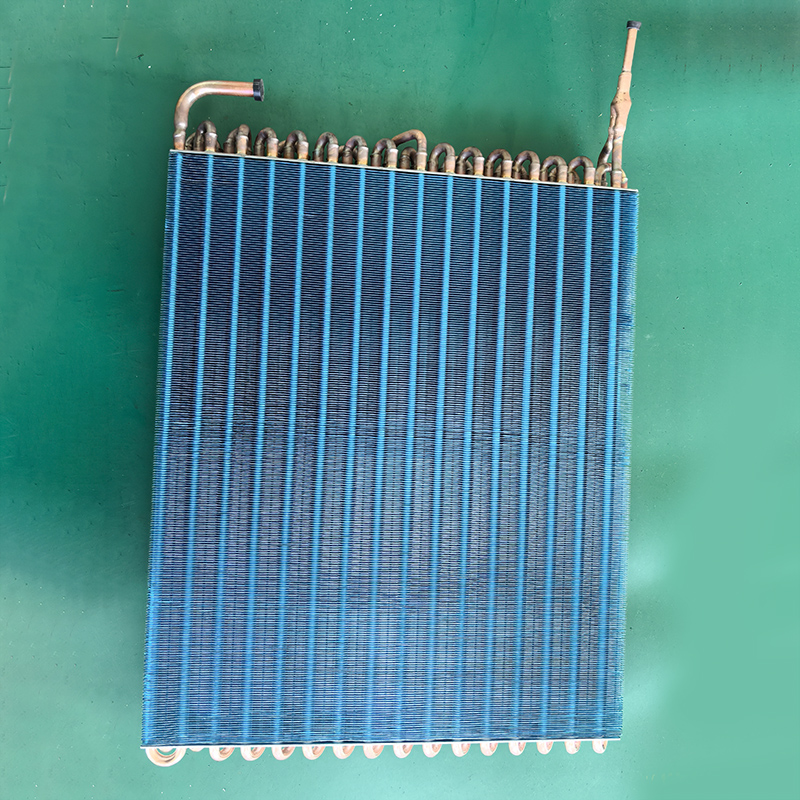

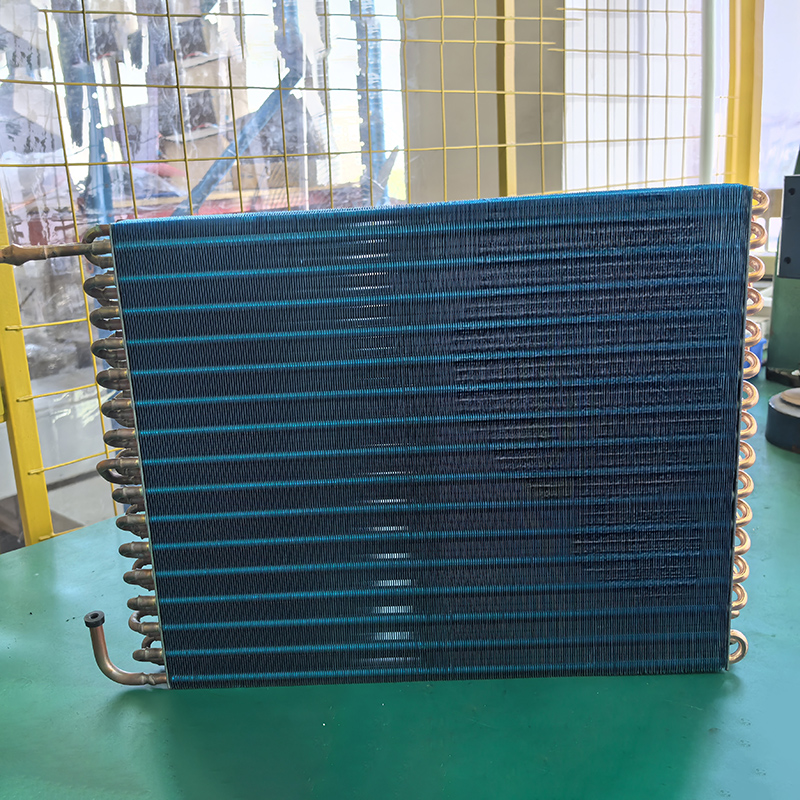

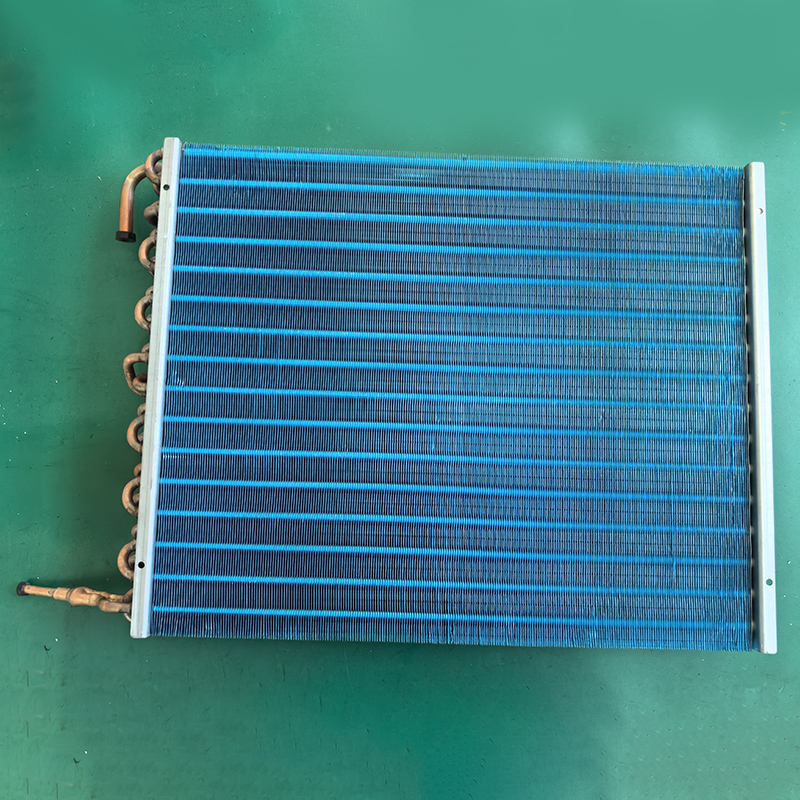

This air conditioner evaporator is renowned for its exceptional quality, meticulously crafted with copper tubes and aluminum fins. It is a type of finned tube heat exchanger, composed of components such as partitions, fin seals, and deflectors. These components are carefully arranged to form channel structures, which are then tightly integrated through brazing or welding processes to form the core of the heat exchanger. The evaporator is designed with flexibility, offering a variety of tube diameters ranging from 7mm to 15.88mm, as well as multiple material options including copper, aluminum, and stainless steel. It also features a range of fin types such as flat, window, louver, and smooth sine wave fins, with fin spacing from 1.8mm to 5.8mm to cater to diverse cooling requirements.
Product Design Feature
The evaporator is compatible with a wide range of refrigerants including R417A, R407C, R404A, R410A, R134A and R1234yf making it adaptable to various air conditioning systems. The manufacturer enforces a rigorous three-step quality control process to ensure that every stage, from raw materials to finished products, meets high standards. With over a decade of manufacturing experience, Quick has assembled a team of seasoned engineers and technicians who are committed to continuous innovation and improvement of the product.
Quick offers customization services, capable of producing products that meet specific customer requirements based on samples or drawings provided. This flexibility and attention to detail give the evaporator a significant advantage in terms of performance and reliability. Moreover, Quick focuses on the cost-effectiveness of its products, striving to provide competitive pricing while maintaining product quality, ensuring that customers receive value for their investment.
Product parameter
Product name | Condenser, evaporator, heat exchanger |
Materials | Copper tube aluminum fin, galvanized plate |
Tube O.D. | 7mm. 7.94mm, 9.52mm, 12.75mm, 15.88mm |
Aluminum fin | Hydroponic fin or bare fin |
Fin type | Flat fin, Window fin, louver fin, Smooth sine wave fin |
Fin space | 1.8--5.8mm |
Pitch of holes and rows | 19.05*12.7mm; 25.5*22mm; 25*21.65mm; 31.75*27.5mm; 38.1*33mm, ect. |
Application refrigerant | R417A/R407C/R404A/R410A/R134A, ect. |
Feature | Epoxy coating, electrophoresis, sandblasting |
