Company Advantages
· The production process of Quick Thermal electrical enclosure air conditioner has been standardized by using the advanced technology.
· electrical enclosure air conditioner has many outstanding advantages.
· Quick Thermal wins numerous customer's trust by reliable quality and electrical enclosure air conditioner.
Product Design Feature
1.、Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function
2、Strict process
control and famous brand components to ensure high quality and reliability of
this product
3、Fit for harsh
condition (T3), R134a refrigerant
4、Multiple
self-protection design & visible monitoring interface, RS485 communication
port (MODBUS-RTU protocol);
5、LED display, all the
settings can changed at the field;
6、Air conditioner with
heater function
7、Air conditioner with
humidity control function
8、Dry contact alarm
output,NO/NC optional;
Product parameter

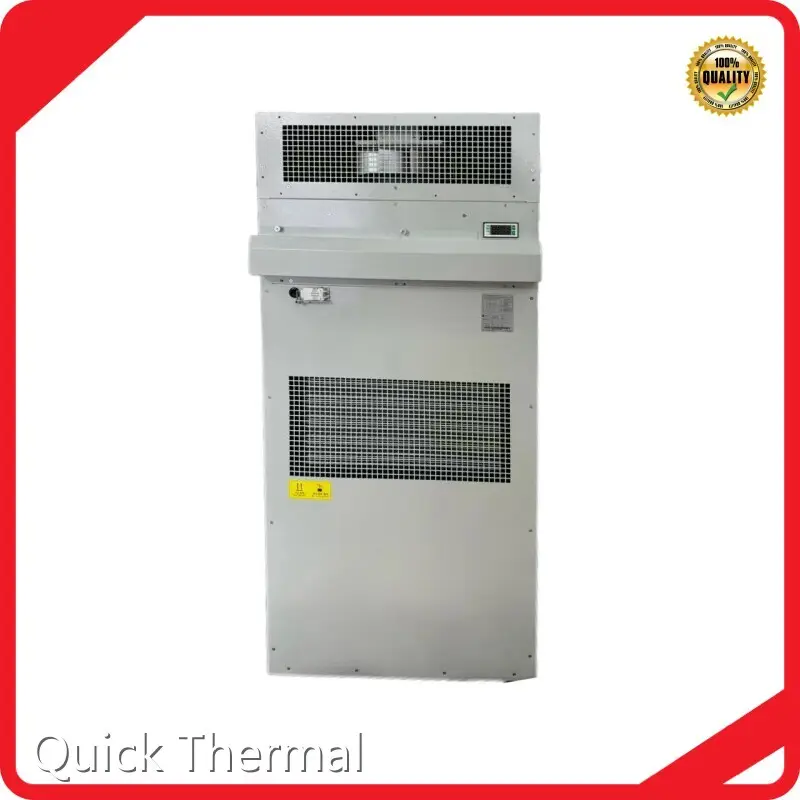

Name | Outdoor Cabinet Air Conditioner |
Model | TA050/E/A/H30 |
Mounting Method | Semi-embedded Mounting |
Power Supply | 220-240V±10% 50Hz |
Cooling Capacity | 5000W@L35/L35 |
Power Consumption | 2000W@L35/L35 |
Cooling Capacity | 3700W@L35/L55 |
Power Consumption | 2500W@L35/L55 |
Internal Airflow | 1410 m³/h |
Working Temperature Range | -40℃~+55℃ |
Max Noise Level | 65dB(A) |
IP Grade | IP55 |
Net Weight | 95Kg |
Refrigerant | R134a |
Dimensions | 1350x620x300(mm, HxWxD) |
CE&RoHS Compliant | YES |
Surface Treatment | Outdoor type powder coating, standard color: RAL7035 |
Heater | 3000W |
Company Features
· Suzhou Quick Thermal Control Technology Co.,LTD is a manufacturing company based in China. We have been providing quality electrical enclosure air conditioner throughout our region and beyond.
· Our employees make a difference. Well trained and knowledgeable, they emphasize the quality of products and services to provide consistent support to customers. They are not just our employees. They are partners. Our factory has some of the best machines. We have multiple machines and highly skilled personnel in each category to operate them, ensuring that we can meet our customers' scheduling needs. Our plant is equipped with numbers of high specification state-of-the-art production machine. Their ability of automated loading and unloading coupled with in-line inspection eliminates the need for human intervention and speeds up the production process.
· In Suzhou Quick Thermal Control Technology Co.,LTD, providing best service for customers is what we stick to.
Product Details
With the pursuit of perfection, Quick Thermal exerts ourselves for well-organized production and high-quality electrical enclosure air conditioner.
Application of the Product
The electrical enclosure air conditioner produced by Quick Thermal can be used in many fields.
Quick Thermal has a team of experienced professionals, mature technology and a sound service system. All this can provide customers with one-stop solutions.
Enterprise Advantages
Our company has a professional product research and development team, professional technical personnel, excellent management team with high overall quality, strong ability and rich experience. At the same time, we continue to carry out technical exchanges and cooperation with major universities, and employ many experts to provide technical guidance. It provides a good guarantee for the technical and management specifications of our products.
Through the application of online information service tools, our company implements clear management of after-sales service. With the improvement of the efficiency and quality of after-sales service, each customer could enjoy high-quality after-sales service.
Quick Thermal adheres to the business philosophy of 'detail determines quality and integrity continues market'. We always strive for survival by quality and achieve development through reputation. And the benefit is gained from management. We are committed to providing effective solutions for customers at home and abroad.
After years of struggling, our company has now turned into a leading enterprise in the industry. We have complete hardware facilities, extensive business operations and strong economic strength.
Quick Thermal's Air Condionner,Heat Exchanger,Air Conditonner and Heat Exchangers solutions for industries like telecom,electric power,elevators are popular in the domestic market. They also enjoy a relatively high reputation in Southeast Asia, Europe, America, and other countries and regions.
