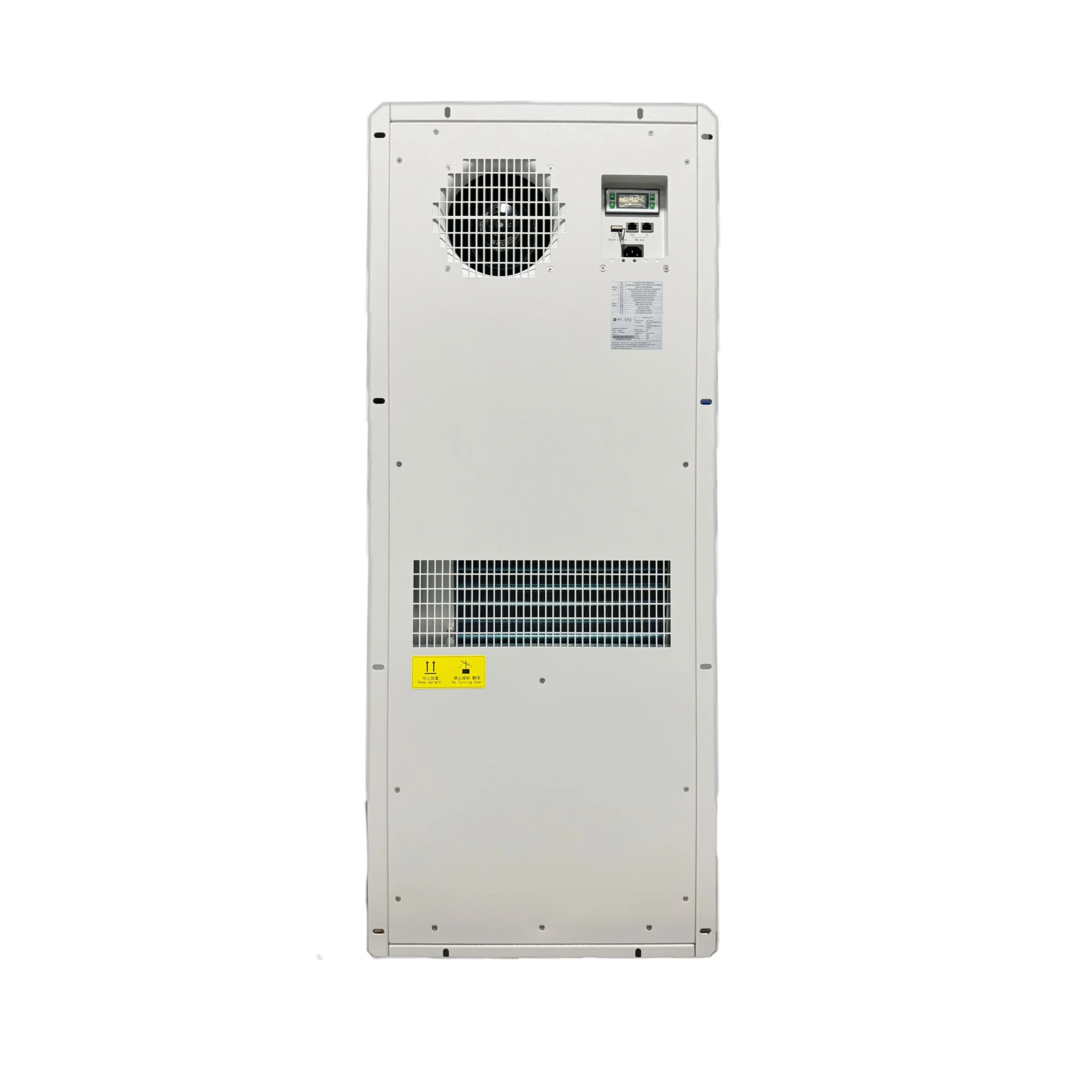

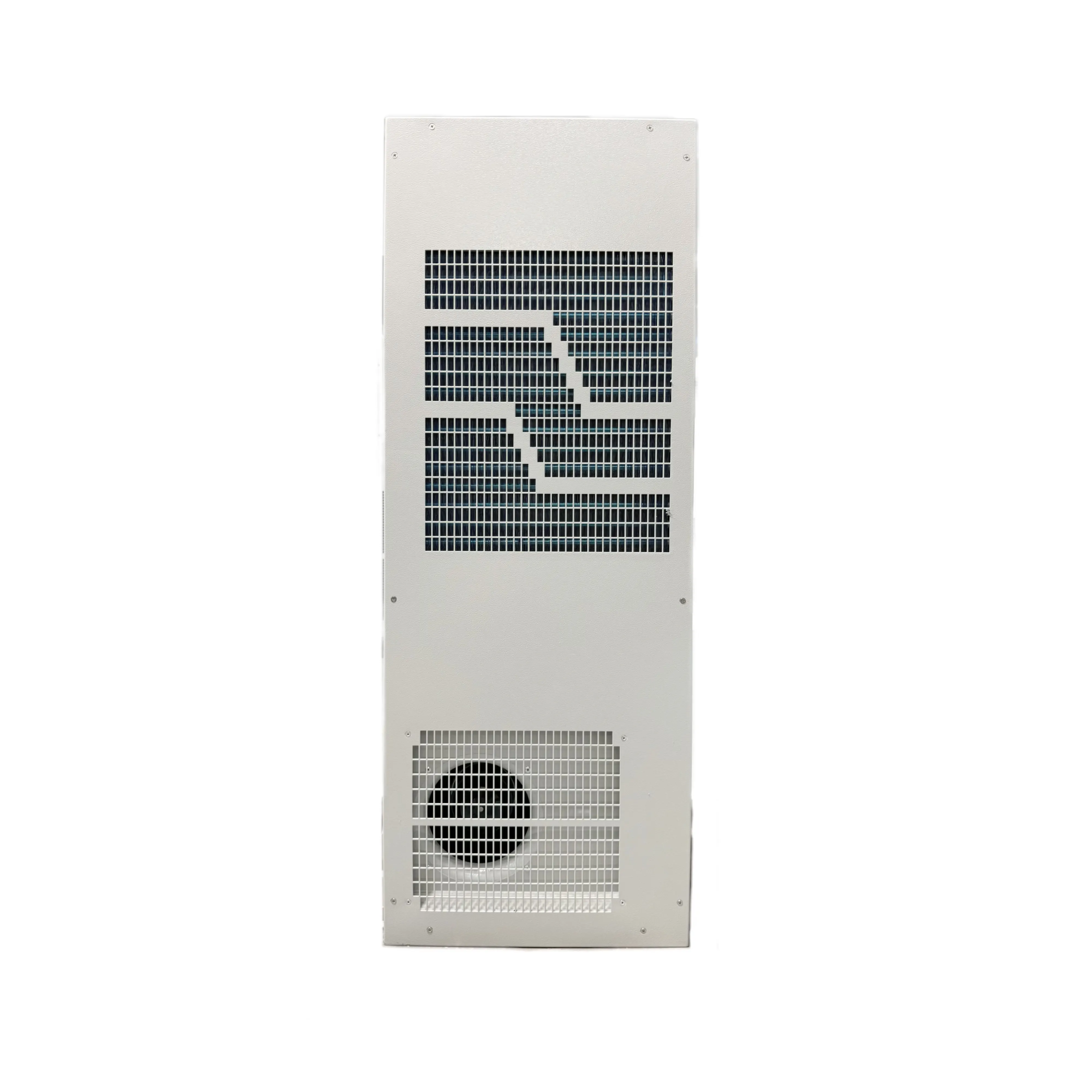

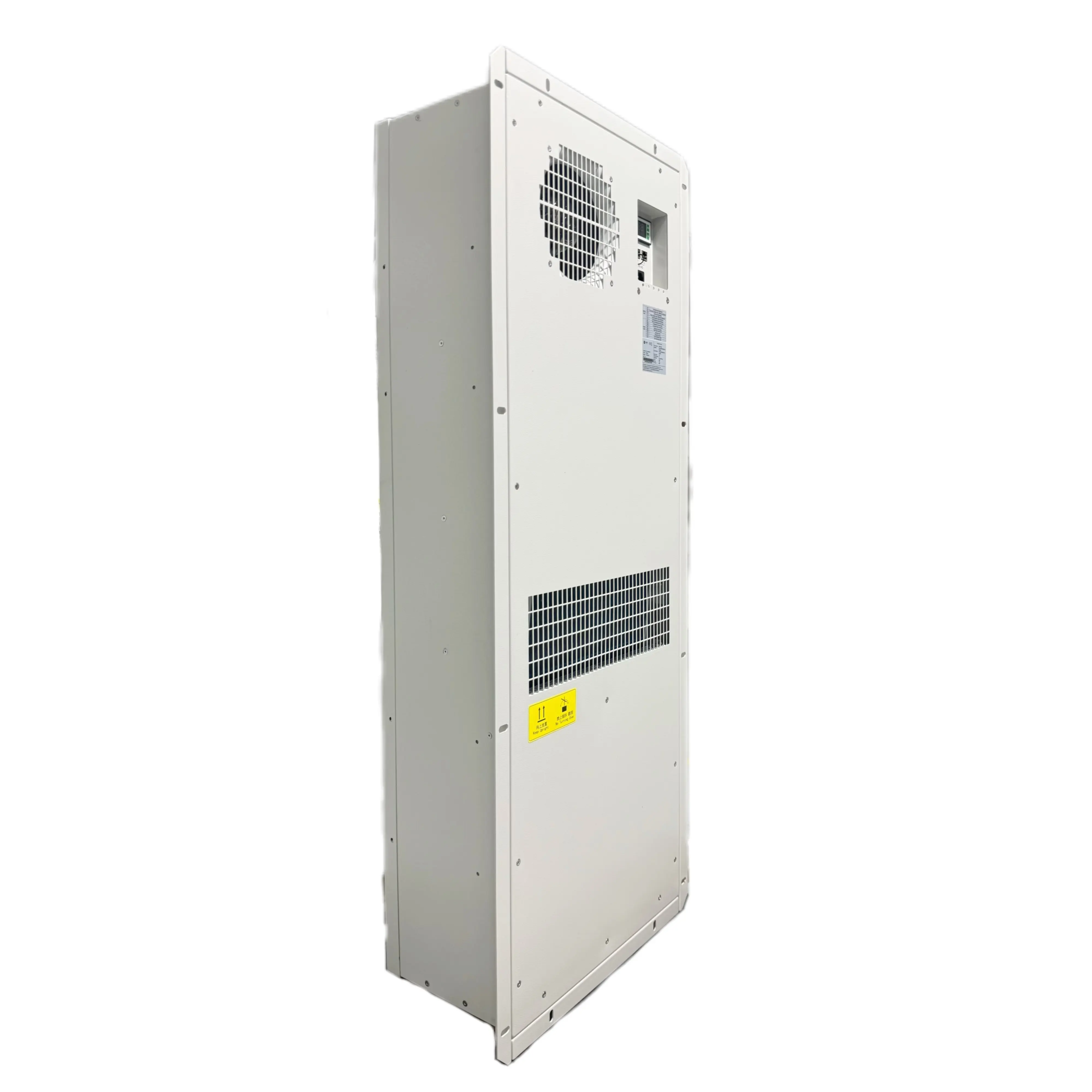

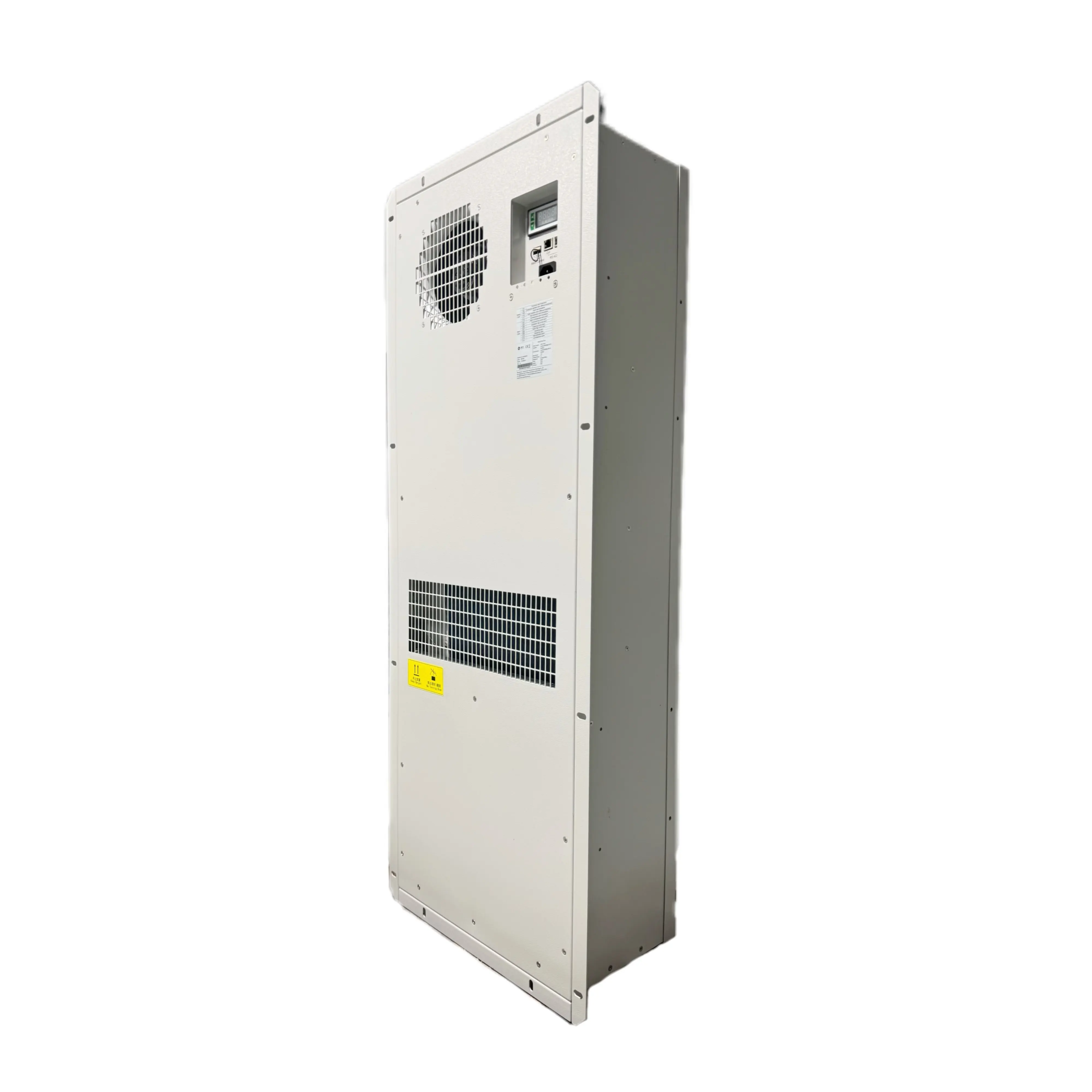

Quality Telecom Cabinet Air Conditioner
Product Design Feature
1. High-Temperature Adaptability: The product is designed to operate effectively in T3 high-temperature conditions, ensuring stable performance in extreme outdoor environments
2. Environmentally Friendly Refrigerant: It uses R134a, an environmentally friendly refrigerant, complying with environmental standards and reducing its impact on the environment, aligning with sustainable development requirements
3. Multiple Protection Features: Equipped with multiple protection functions, it effectively prevents faults such as overloads and overheating, ensuring the safe operation of the equipment and extending its service life
4. Visual Human-Machine Interface: Features an intuitive visual human-machine interface, allowing users to easily monitor equipment status and perform operational settings, enhancing user convenience
5. RS485 Communication Interface: Supports an RS485 communication interface with the MODBUS-RTU protocol, facilitating data exchange and remote control with other devices, enabling intelligent management
6. LED Digital Display: Utilizes an LED digital display with field-settable parameters, allowing users to view and adjust equipment operating parameters in real-time, meeting various usage requirements
9. High Protection Rating: Achieves an IP55 protection rating, providing excellent dust and water resistance, effectively protecting internal components in harsh outdoor environments and ensuring stable operation
10. Low Noise Operation: Operates with a maximum noise level of 69dB(A), ensuring low noise levels during operation and minimizing interference with the surrounding environment, making it suitable for noise-sensitive areas
11. Semi-Embedded Installation: Employs a semi-embedded installation method, which is easy to install, space-saving, and facilitates maintenance and inspection, enhancing the flexibility and usability of the equipment
Product parameter
| Name | Outdoor Cabinet Air Conditioner |
| Model | TA 025/S/A |
| Mounting Method | Semi-embedded Mounting |
| Power Supply | 230VAC±15% 50Hz/60Hz |
| Cooling Capacity | 2550W@L35/L35 |
| Power Consumption | 880W@L35/L35 |
| Cooling Capacity | 2045W@L35/L55 |
| Power Consumption | 1120W@L35/L55 |
| Internal Airflow | 700 m³/h |
| Working Temperature Range | -40℃~+55℃ |
| Max Noise Level | 69dB(A) |
| IP Grade | IP55 |
| Net Weight | 50Kg |
| Refrigerant | R134a |
| Dimensions | 1116x415x205(mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating, standard color: RAL7035 |
| Heater | Option（800W） |
Company Advantages
· In Suzhou Quick Thermal Control Technology Co.,LTD, you can have multiple choices for shapes of telecom cabinet air conditioner.
· Any deviation of the product will be immediately corrected by our QC experts.
· With these features, it has an extensive application prospect.
Company Features
· As a highly competitive enterprise, Suzhou Quick Thermal Control Technology Co.,LTD mainly deals with
· Suzhou Quick Thermal Control Technology Co.,LTD upgrades itself through the extensive deployment of advanced technologies and applications.
· Suzhou Quick Thermal Control Technology Co.,LTD always puts customers at first place and will actively help customers solve problems. Get an offer!
Application of the Product
Our telecom cabinet air conditioner can be used in multiple areas of multiple industries.
Quick Thermal is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
