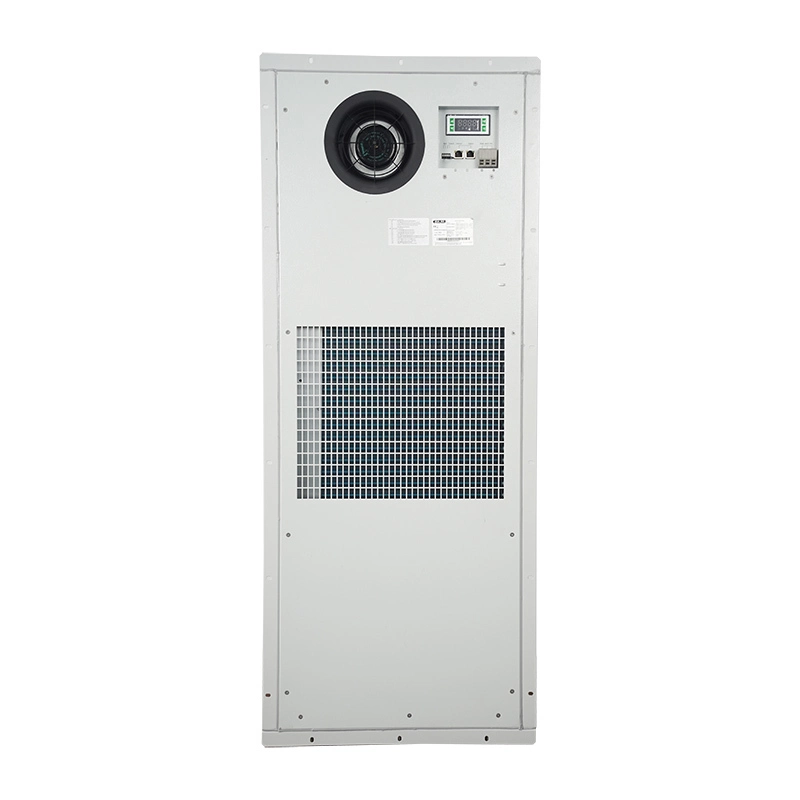

Suzhou Quick Temperature Control Technology Co., Ltd.'s 188540 TA040 E/D model air conditioner is the high-end product in the series, designed to meet the ultimate heat dissipation needs of large outdoor cabinets and industrial control cabinets. With a cooling capacity of 4000W and a low power consumption of 1300W, this air conditioner ensures stable temperature control performance in extreme working temperature ranges (-40℃ to +55℃).
Product Design Feature
The robust construction and heavyweight design, with dimensions of 1304x504x300mm and a weight of 80kg, reflect the reliability of this air conditioner as a large-scale cooling solution. An internal airflow of up to 1050m³/h, combined with a low noise level of 65dB(A), achieves a perfect balance between efficient heat dissipation and a quiet environment.
The TA040 E/D model features an outdoor powder coating, with the standard color RAL7035, significantly enhancing its durability in harsh outdoor environments. Moreover, multiple self-protection designs, an LED display, and an RS485 communication interface are equipped, providing users with convenient on-site operation and remote monitoring capabilities.
The main features of this air conditioner include
- High cooling capacity: 4000W cooling capacity to meet the heat dissipation needs of large outdoor equipment.
- Energy-efficient: Adopts energy-saving technology to reduce power consumption without sacrificing cooling performance.
- Long service life: Durable components adapt to harsh outdoor conditions, extending the service life and reducing the need for frequent replacements.
- Outdoor durability: The structural design withstands various weather conditions and is suitable for environments exposed to natural elements.
The 188540 TA040 E/D model is an ideal choice for large outdoor communication base stations, industrial facilities, and other scenarios, providing reliable support for large-scale cooling needs with its high efficiency and low operating costs.
Product parameter
Name | Outdoor Cabinet Air Conditioner |
Model | TA 040/E/D |
Mounting Method | Semi-embedded Mounting |
Power Supply | -48VDC |
Cooling Capacity | 4000W@L35/L35 |
Power Consumption | 1300W@L35/L35 |
Cooling Capacity | 2450W@L35/L55 |
Power Consumption | 1750W@L35/L55 |
Internal Airflow | 1050m³/h |
Working Temperature Range | -40℃~+55℃ |
Max Noise Level | 65dB(A) |
IP Grade | IP55 |
Net Weight | 80kg |
Refrigerant | R134a |
Dimensions | 1304x504x300(mm, HxWxD) |
CE&RoHS Compliant | YES |
Surface Treatment | Outdoor type powder coating, standard color: RAL7035 |
