Hot Sellingelectrical Enclosure Air Conditioner
Product Design Feature
Rapid Plug-in Installation: The innovative plug-in design simplifies the installation steps, shortens deployment time, and is suitable for fast-paced deployment needs.
Efficient Variable Frequency Technology: The variable frequency compressor optimizes energy use, effectively reducing the cost of long-term operation.
Intelligent Remote Monitoring: The RS-485 communication function supports real-time remote monitoring, enhancing the management efficiency and response speed of the equipment.
Environmentally Friendly Refrigerant Application: The use of R134a refrigerant not only improves energy efficiency but also reduces environmental impact, in line with the development trend of green and energy-saving.
Compact and Lightweight Design: Adapts to spaces with limited space, facilitating handling and installation, reducing spatial occupancy.

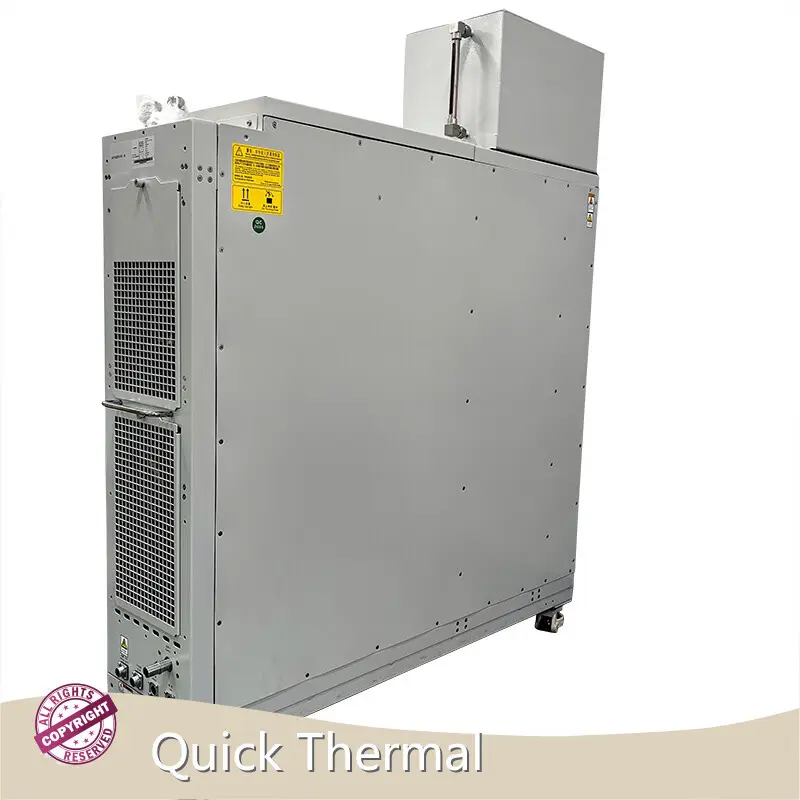

In summary, the TWA 100PVA air-cooled chiller, with its high efficiency, intelligent monitoring, environmentally friendly design, and compact and lightweight features, has become an ideal choice for occasions with limited space and high requirements for cooling performance
The variable frequency technology and integrated design of the TWA 100PVA not only greatly enhance energy efficiency and reduce energy consumption but also simplify the installation process. This design philosophy makes on-site deployment fast and easy, reducing installation time and costs. The RS-485 communication function and real-time remote monitoring system provide users with a more accurate and convenient control method, enhancing the level of intelligent equipment management.
Using R134a as the refrigerant, the TWA 100PVA ensures efficient cooling performance while also demonstrating its commitment to environmental protection. This refrigerant has excellent thermodynamic properties and complies with international environmental standards, reducing the impact on the environment. The carefully designed size and weight make this chiller particularly suitable for installation environments with limited space, such as small data centers, laboratories, or medical facilities.
Product parameter
| Name | Air Cooled Chiller |
| Code | 186005 |
| Model | TWA 100/P/VA |
| Mounting Method | Plug-in type |
| Power Supply AC | ~230V±10%50/60±3Hz |
| working current | 25A |
| refrigerating capacity | 10.0KW |
| refrigerating capacity | 8.0KW |
| heating capacity | 2.0KW |
| hot water temperaturel | 18 ℃ |
| Liquid temperature range | 10～ 35℃ |
| Rated circulating water flow | 50L/min(Option：80L/min) |
| Rated external cycle head | 90Kpa |
| Working Temperature Range | 30℃~+55℃ |
| Refrigerant | R134a |
| Refrigerating medium | Pure water, 50% glycol aqueous solution |
| Refrigeration input power | 4.3KW |
| Refrigeration input power | 4.7KW |
| Noise Leve | Appr.75dB(A)0 L45/W18 |
| IPGrade | IPX5 |
| Net Weight | Appr.150kg |
| Dimensions | 275×1185.4×1074(mm) |
| CE&RoHS Compliant | YES |
| Surface Treatment | RAL7035 |
Company Advantages
· The supreme master of detailed design of electrical enclosure air conditioner has gained much more fame for Quick Thermal.
· We offer electrical enclosure air conditioner that are unique and manufactured keeping the changing global trends in mind .
· With its professional workmanship, strong R&D ability and advanced technology, Suzhou Quick Thermal Control Technology Co.,LTD produces high quality electrical enclosure air conditioner which wins much reputation.
Company Features
· Suzhou Quick Thermal Control Technology Co.,LTD has been on the rapid growth of enterprise-scale and become one of the first-class domestic electrical enclosure air conditioner manufacturers.
· With high-end technology used in manufacturing electrical enclosure air conditioner, its quality is greatly improved.
· Suzhou Quick Thermal Control Technology Co.,LTD aims to become a leader in the electrical enclosure air conditioner industry. Check it!
Application of the Product
The electrical enclosure air conditioner produced by our company can be used in many fields.
Quick Thermal always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
