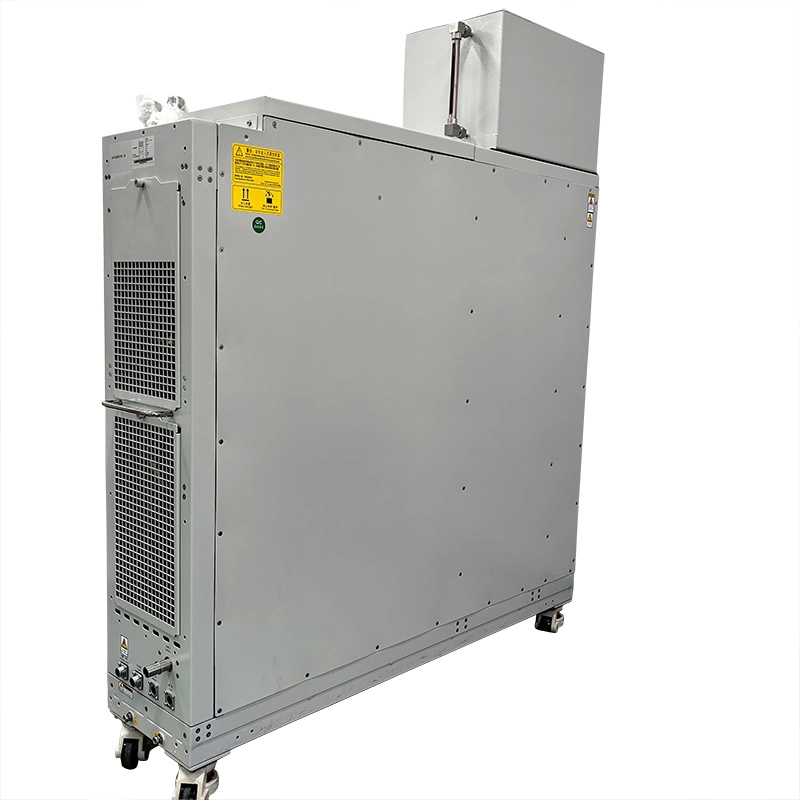

Quick Cabinet Chiller 220VAC 10000W Frequency Conversion RS485 CAN Bus

The TWA 100PVA model air-cooled chiller has won favor in the market with its excellent plug-in installation design and high energy efficiency ratio. The design of this chiller fully considers the convenience of user operation and the stability of the equipment. The automatic start function and multiple self-protection mechanisms ensure the long-term stable operation of the equipment, while the field-changeable settings provide great flexibility to adapt to the needs of different application scenarios.



    oops...!

    no product data.

    Go to homepage

    Product Design Feature

    Rapid Plug-in Installation: The innovative plug-in design simplifies the installation steps, shortens deployment time, and is suitable for fast-paced deployment needs.


    Efficient Variable Frequency Technology: The variable frequency compressor optimizes energy use, effectively reducing the cost of long-term operation.


    Intelligent Remote Monitoring: The RS-485 communication function supports real-time remote monitoring, enhancing the management efficiency and response speed of the equipment.


    Environmentally Friendly Refrigerant Application: The use of R134a refrigerant not only improves energy efficiency but also reduces environmental impact, in line with the development trend of green and energy-saving.


    Compact and Lightweight Design: Adapts to spaces with limited space, facilitating handling and installation, reducing spatial occupancy.


    In summary, the TWA 100PVA air-cooled chiller, with its high efficiency, intelligent monitoring, environmentally friendly design, and compact and lightweight features, has become an ideal choice for occasions with limited space and high requirements for cooling performance

    WechatIMG34
    WechatIMG32

    The variable frequency technology and integrated design of the TWA 100PVA not only greatly enhance energy efficiency and reduce energy consumption but also simplify the installation process. This design philosophy makes on-site deployment fast and easy, reducing installation time and costs. The RS-485 communication function and real-time remote monitoring system provide users with a more accurate and convenient control method, enhancing the level of intelligent equipment management.

    Using R134a as the refrigerant, the TWA 100PVA ensures efficient cooling performance while also demonstrating its commitment to environmental protection. This refrigerant has excellent thermodynamic properties and complies with international environmental standards, reducing the impact on the environment. The carefully designed size and weight make this chiller particularly suitable for installation environments with limited space, such as small data centers, laboratories, or medical facilities.

    Product parameter

    Name Air Cooled Chiller
    Code 186005
    Model TWA 100/P/VA
    Mounting Method Plug-in type
    Power Supply AC ~230V±10%50/60±3Hz
    working current 25A
    refrigerating capacity 10.0KW
    refrigerating capacity 8.0KW
    heating capacity 2.0KW
    hot water temperaturel 18 ℃
    Liquid temperature range 10~ 35℃
    Rated circulating water flow 50L/min(Option:80L/min)
    Rated external cycle head 90Kpa
    Working Temperature Range 30℃~+55℃
    Refrigerant R134a
    Refrigerating medium Pure water, 50% glycol aqueous solution
    Refrigeration input power 4.3KW
    Refrigeration input power 4.7KW
    Noise Leve Appr.75dB(A)0 L45/W18
    IPGrade IPX5
    Net Weight Appr.150kg
    Dimensions 275×1185.4×1074(mm)
    CE&RoHS Compliant YES
    Surface Treatment RAL7035
