Quick Chiller 220VAC 40KW Energy Storage System R410A Air Cooled

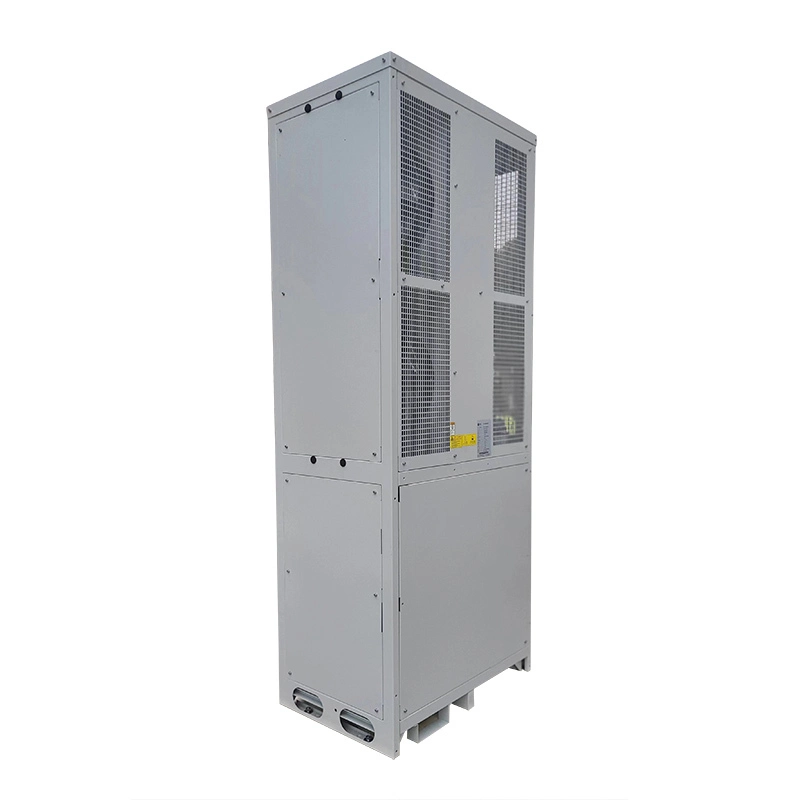

The TWA 400L VA model air-cooled chiller is a high-efficiency cooling equipment specifically designed to meet the challenges of high heat loads, making it particularly suitable for large data centers, communication base stations, and energy storage systems. This model is equipped with an advanced automatic start mechanism and multiple self-protection features that ensure stable operation and safety, reducing the risk of unexpected downtime.
Product Design Feature
At the heart of its advantages lies the application of frequency conversion technology, which, through the use of a variable frequency compressor and a speed-regulating fan, achieves precise control, optimizes energy efficiency, and reduces energy consumption. This technology not only enhances performance but also aligns with current trends of energy saving and emission reduction. The TWA 400L VA's RS-485 communication capability, supporting the MODBUS RTU protocol, allows the device to be easily integrated into intelligent control systems for real-time remote monitoring and management, greatly improving the convenience and flexibility of operations.
The environmental characteristics of this model are also noteworthy; it uses the R410A refrigerant, complying with international CE and RoHS standards, thereby minimizing environmental impact. The compact design and lightweight of the TWA 400L VA make it more flexible in installation and deployment, suitable for a variety of spatial requirements.
Moreover, the TWA 400L VA is highly reliable, capable of meeting the continuous operation demands of 7 days a week, 24 hours a day, making it particularly suitable for applications with strict operating time requirements. Its high cooling capacity, reaching 40KW, is more than sufficient to handle large-scale heat dissipation challenges.
In summary, the TWA 400L VA air-cooled chiller, with its efficient energy-saving, intelligent monitoring, environmentally friendly design, and high reliability, stands out as an ideal choice for large-scale cooling applications.
Product parameter
| Name | Air Cooled Chiller |
| Model | TWA 400/L/V/A |
| Power Supply | 380V 50Hz Three-phase four line |
| Cooling Capacity | 40KW @W18/L45 |
| Cooling Power Consumption | 20.5KW@W18/L45 |
| Max Power Consumption | 22.8KW |
| Max Work Current | 45A |
| Supply water temperature | 18℃ |
| Rated water flow | 21m³/h,External Lift：20M |
| Heater | 12KW |
| Heating Power Consumption | 15KW |
| Working Temperature Range | 30℃~+50℃ |
| Max Noise Level | ≤80dB(A) |
| IP Grade | IPX5 |
| Net Weight | 480kg |
| Refrigerant | R410A |
| Dimensions | 2400x980x630(mm,HxWxD) |
| CE&RoHS Compliant | Y E S |
| Surface Treatment | Outerdoor type powder coating,standardcolor:RAL7035 |
| Communication Function | RS 485 MODBUS RTU/CAN |
| Altitude | 0-4000m(Derating by 3%/1000m) |
| Refrigerating medium | 50% Glycol water solution |
