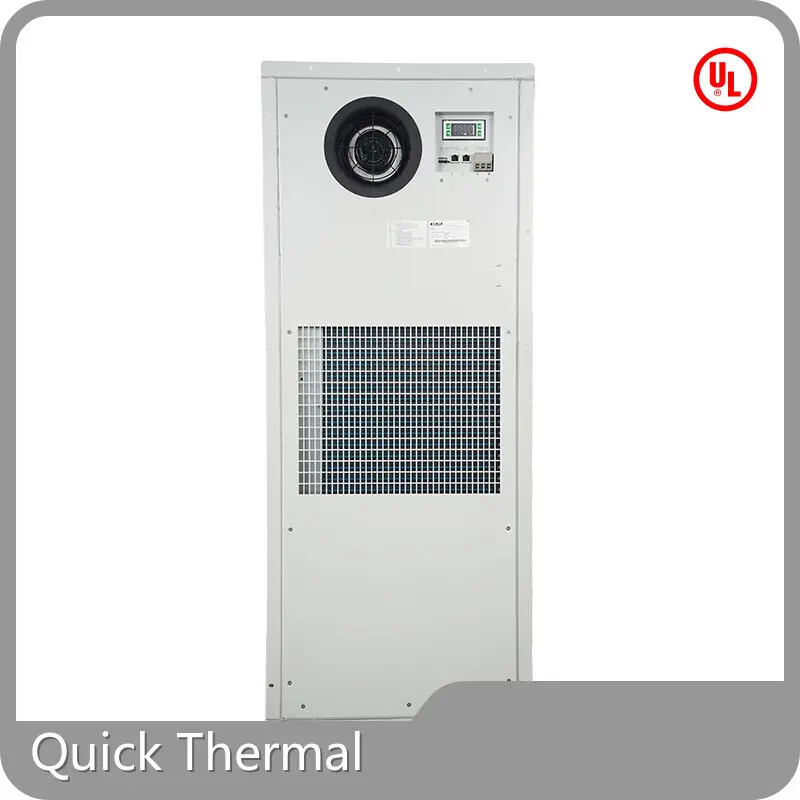

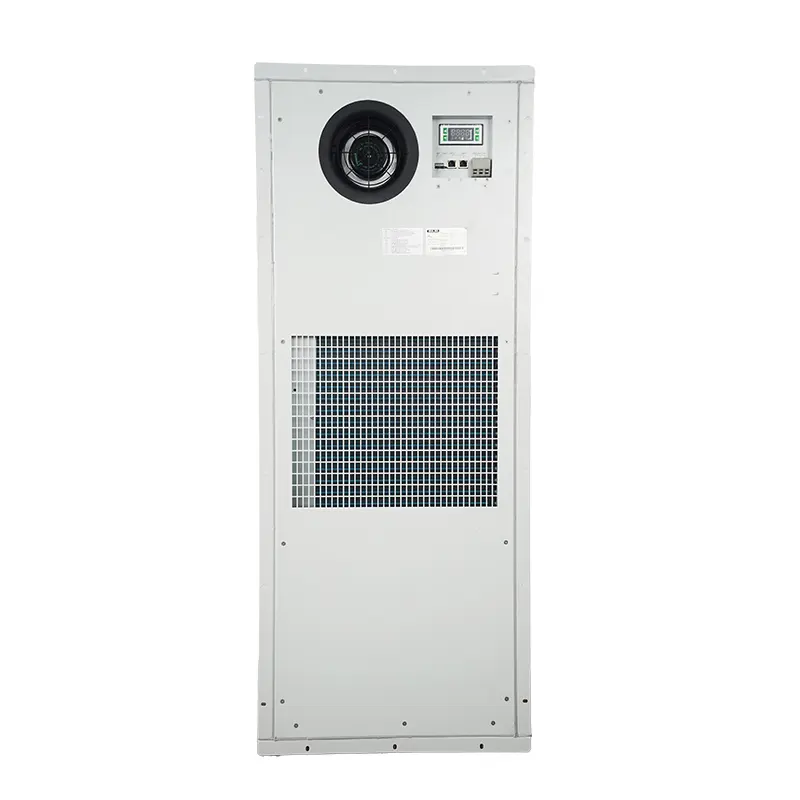

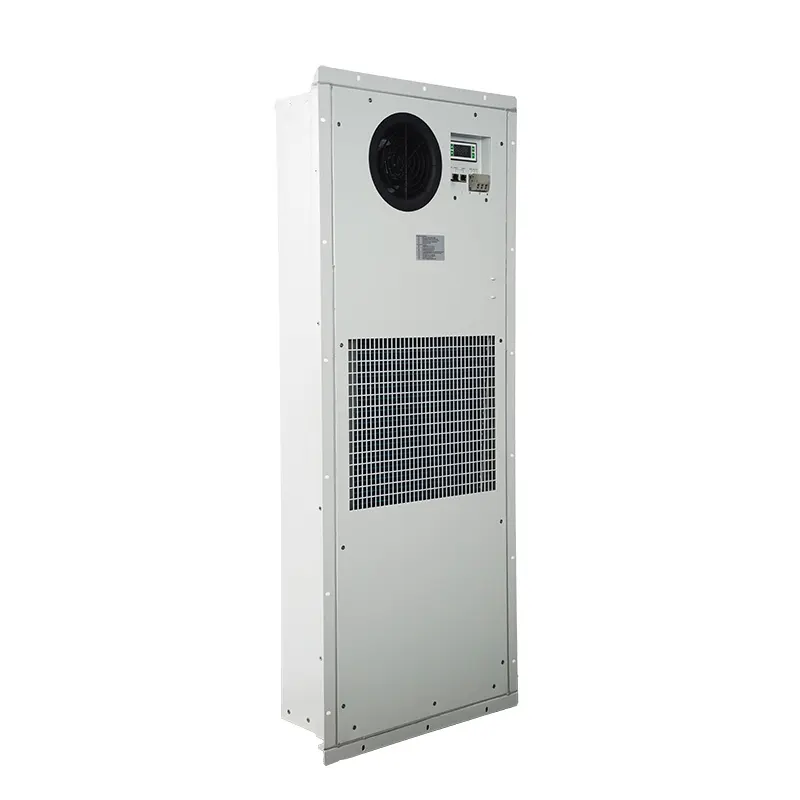

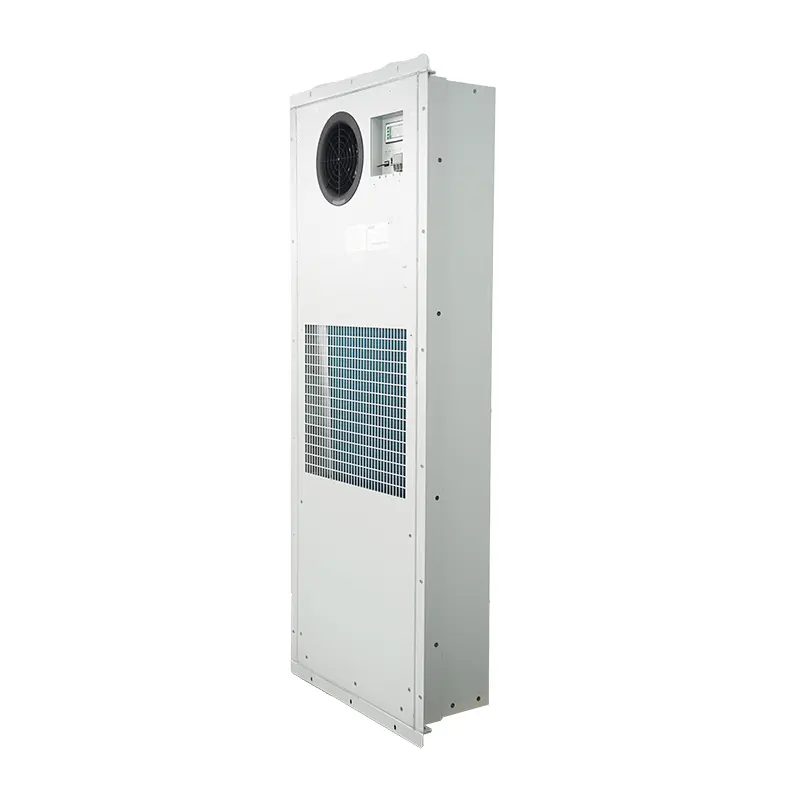

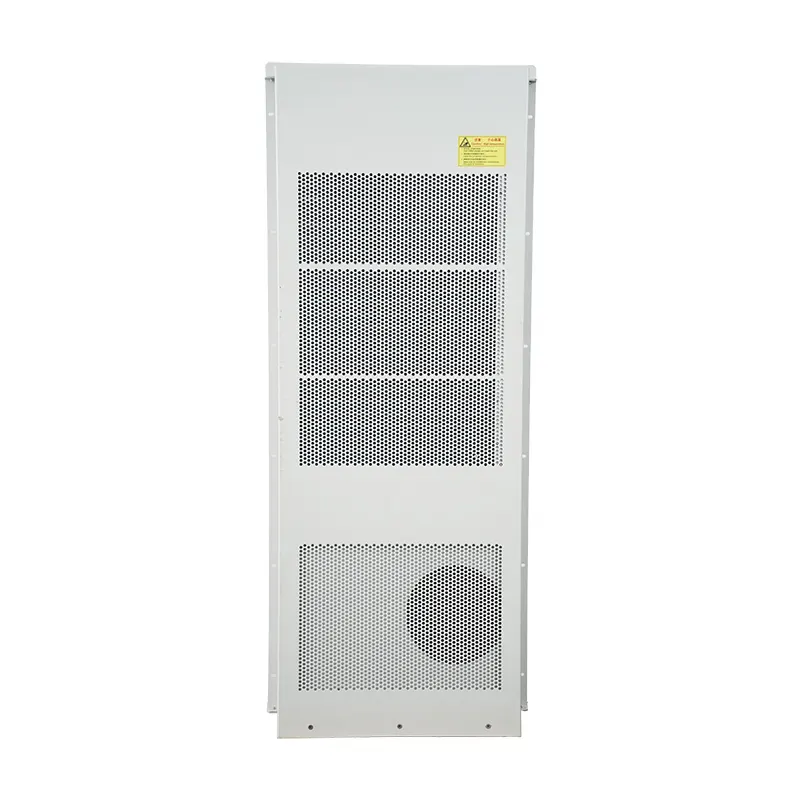

Fine Quality Outdoor Cabinet Air Conditioner Outdoor Cabinet Air Conditioner Company-1
Product Design Feature
This air conditioner has a broad power supply voltage range (DC44~59V) and a wide operating temperature range (-40℃ to +55℃), ensuring stable operation under extreme climatic conditions and reliability in various environments. With a cooling capacity of up to 3000W@L35/L35 and a low power consumption of 860W@L35/L35, it demonstrates its high energy efficiency.
Measuring 1154x489x225mm and weighing 60kg, it is suitable for installation in large outdoor cabinets and battery cabinets. The internal airflow reaches 800m³/h, coupled with a maximum noise level of 65dB(A), ensuring efficient heat dissipation while maintaining a quiet environment.
Furthermore, the 188530 TA030 E D model features an outdoor powder coating with a standard color of RAL7035, enhancing its durability and protection in outdoor environments. As the high-power model in the series, this 3000W air conditioner is specifically designed for outdoor cabinets that require significant heat dissipation, offering more installation flexibility with semi-recessed installation.
Self-protection features ensure safety and reliability under various operating conditions. The design of this product focuses on high efficiency and high protection levels, making it an ideal choice for heat dissipation in heavy-duty outdoor cabinets, providing stable cooling support in both the sweltering heat of summer and the biting cold of winter.
Product parameter
| Name | Outdoor Cabinet Air Conditioner |
| Model | TA 030/E/D |
| Mounting Method | Semi-embedded Mounting |
| Power Supply | -48VDC |
| Cooling Capacity | 3000W@L35/L35 |
| Power Consumption | 860W@L35/L35 |
| Cooling Capacity | 1800W@L35/L55 |
| Power Consumption | 1020W@L35/L55 |
| Internal Airflow | 800m³/h |
| Working Temperature Range | 40℃~+55℃ |
| Max Noise Level | 65dB(A) |
| IP Grade | IP55 |
| Net Weight | 60kg |
| Refrigerant | R134a |
| Dimensions | 1154x489x225(mm,HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating,standard color:RAL7035 |
Company Advantages
· Quick Thermal outdoor cabinet air conditioner has a rather appealing appearance due to the efforts of our own professional and innovative designers. Its design is reliable and time-tested enough to meet the challenges of the market.
· The quality control brings standardization into the product.
· Suzhou Quick Thermal Control Technology Co.,LTD strictly monitors performance of quality control systems to ensure effectiveness and efficiency.
Company Features
· Suzhou Quick Thermal Control Technology Co.,LTD has been focusing on outdoor cabinet air conditioner for years with unique and exquisite craftsmanship.
· Suzhou Quick Thermal Control Technology Co.,LTD possesses polished equipment, solid techniques and complete quality system.
· With pioneering and innovative spirits, we work in an efficient manner to meet customers’ demands. Contact us!
Application of the Product
The outdoor cabinet air conditioner produced by Quick Thermal is widely used in the industry.
Quick Thermal always adheres to the service concept to meet customers' needs. We are committed to providing customers with one-stop solutions that are timely, efficient and economical.
