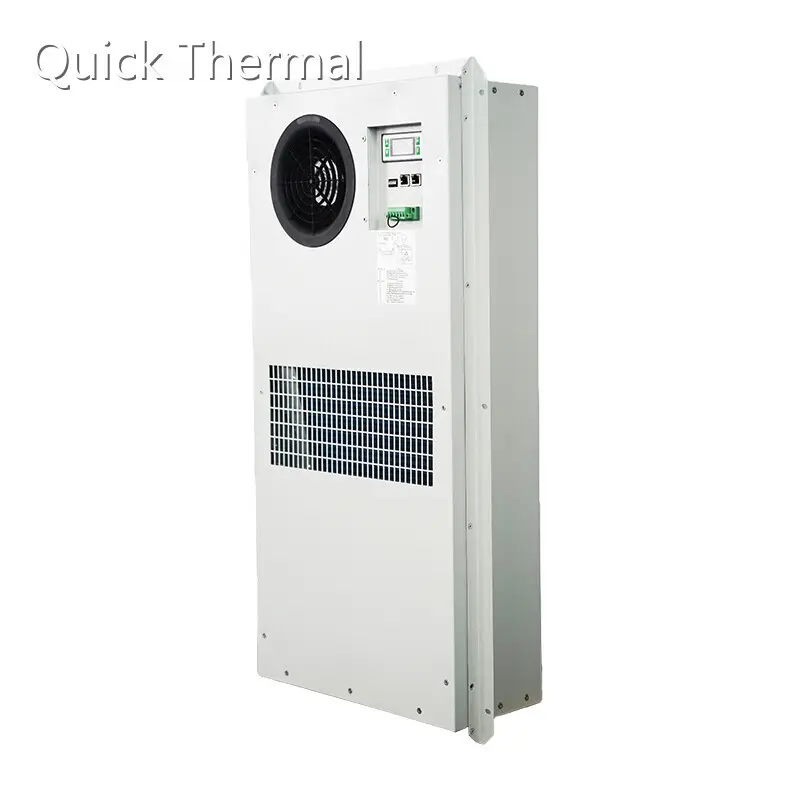

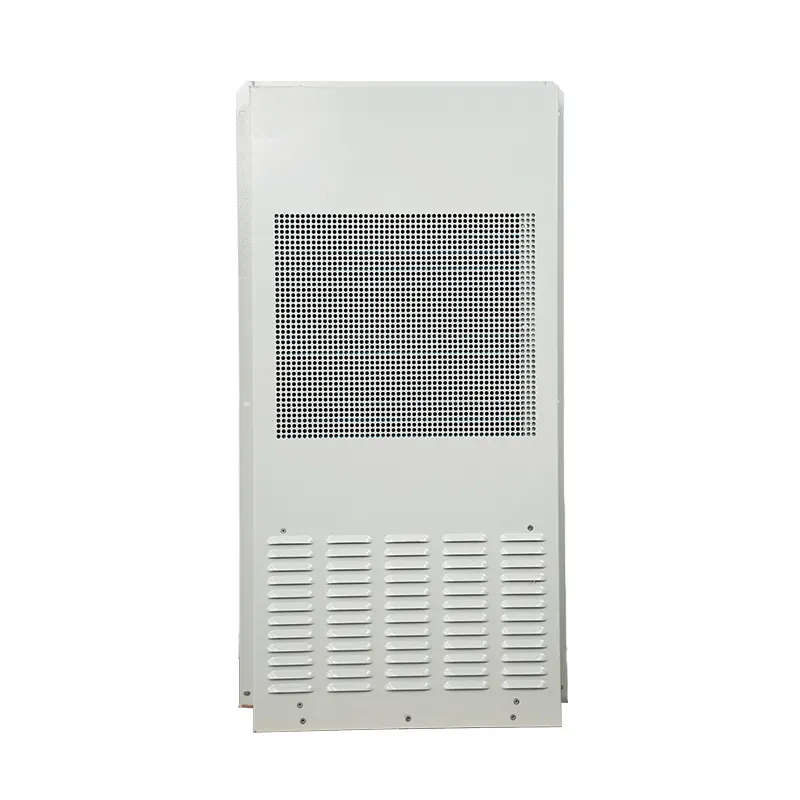

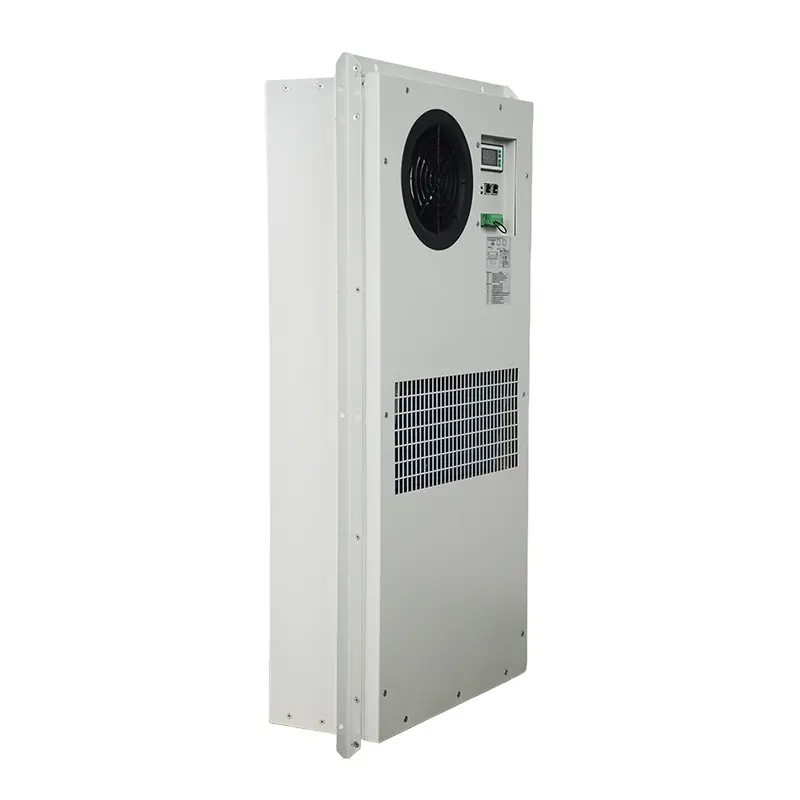

Product details of the electrical enclosure air conditioner
Product Information
Quick Thermal electrical enclosure air conditioner is manufactured utilizing premium quality materials sourced from the certified vendors. We further consolidate its quality by using advanced technology. Its application in the field is becoming more and more extensive.
Product Design Feature
With a wide power supply voltage range (DC42~60V), an energy efficiency ratio (EER) of up to 3.5, and a seasonal energy efficiency ratio (SEER) of 5.5, this air conditioner can save up to 50% energy compared to traditional AC versions, providing users with significant economic and environmental benefits.
The air conditioner's IP55 protection rating and T3 high-temperature operating condition adaptability make it an ideal choice for harsh outdoor environments. The use of environmentally friendly R1234yf refrigerant not only enhances the reliability of the air conditioner but also demonstrates a commitment to environmental protection.
The 188521 TA020 E D model also features multiple self-protection designs to ensure the equipment operates safely under various conditions. The inclusion of an LED display and RS485 communication interface provides convenient equipment setup and monitoring, enhancing the flexibility and convenience of use.
In terms of application scenarios, this air conditioner is highly suitable for outdoor base stations, data centers, industrial automation equipment, and other situations requiring stable heat dissipation. Whether in the sweltering heat of summer or under extreme outdoor conditions, it provides reliable cooling support to ensure the normal operation and long-term stability of critical equipment.
Product parameter
| Name | Outdoor Cabinet Air Conditioner |
| Model | TA 020/E/D |
| Mounting Method | Semi-embedded Mounting |
| Power Supply | -48VDC |
| Cooling Capacity | 2000W@L35/L35 |
| Power Consumption | 645W@L35/L35 |
| Cooling Capacity | 1300W@L35/L55 |
| Power Consumption | 750W@L35/L55 |
| Internal Airflow | 450m /h |
| Working Temperature Range | -15℃~+55℃ |
| Max Noise Level | 69dB(A) |
| IP Grade | IP55 |
| Net Weight | 32kg |
| Refrigerant | R134a |
| Dimensions | 783x479x200(mm,HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating,standard color:RAL7035 |
| Heater | Optional(1000W) |
Company Feature
• Since the establishment in Quick Thermal has been dedicated to the production of Air Condionner,Heat Exchanger,Air Conditonner and Heat Exchangers solutions for industries like telecom,electric power,elevators for years. Now we have leading production technology in the industry.
• Following the service concept of 'all customer-centric', our company is dedicated to providing customers with high-quality products and professional services.
• We have a professional technical team, and set up a team of full-time development, quality control, and marketing, who have strong technical force and deep professional knowledge, providing strong support for enterprise product development, sales and so on.
• There are multiple traffic lines joining up in Quick Thermal's location. The traffic convenience helps realize the efficient transportation of various products.
Quick Thermal's Air Condionner,Heat Exchanger,Air Conditonner and Heat Exchangers solutions for industries like telecom,electric power,elevators are all qualified by national certification. If you have any needs, please contact us as soon as possible.
