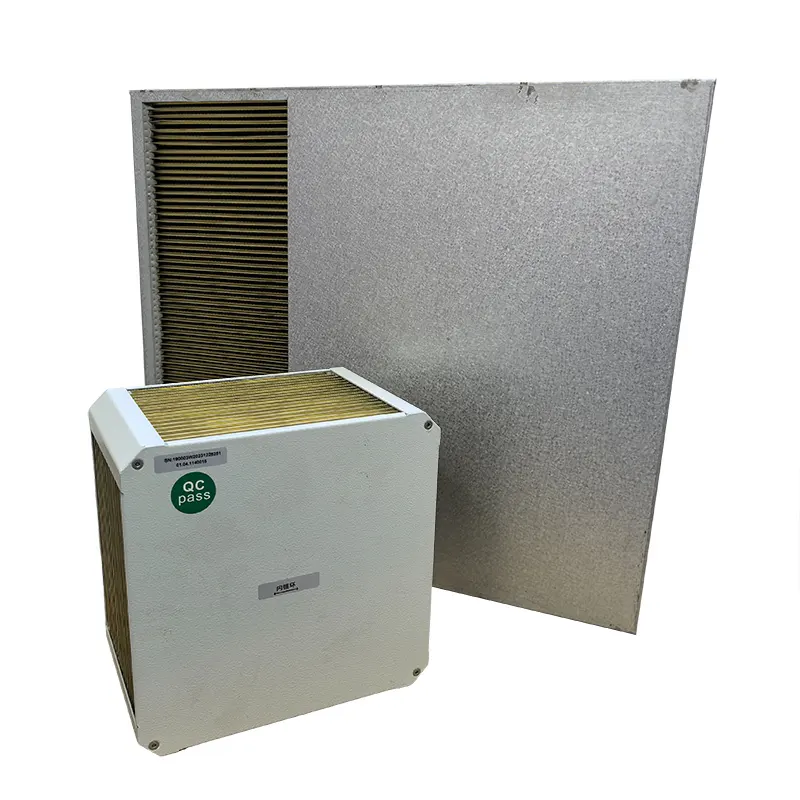

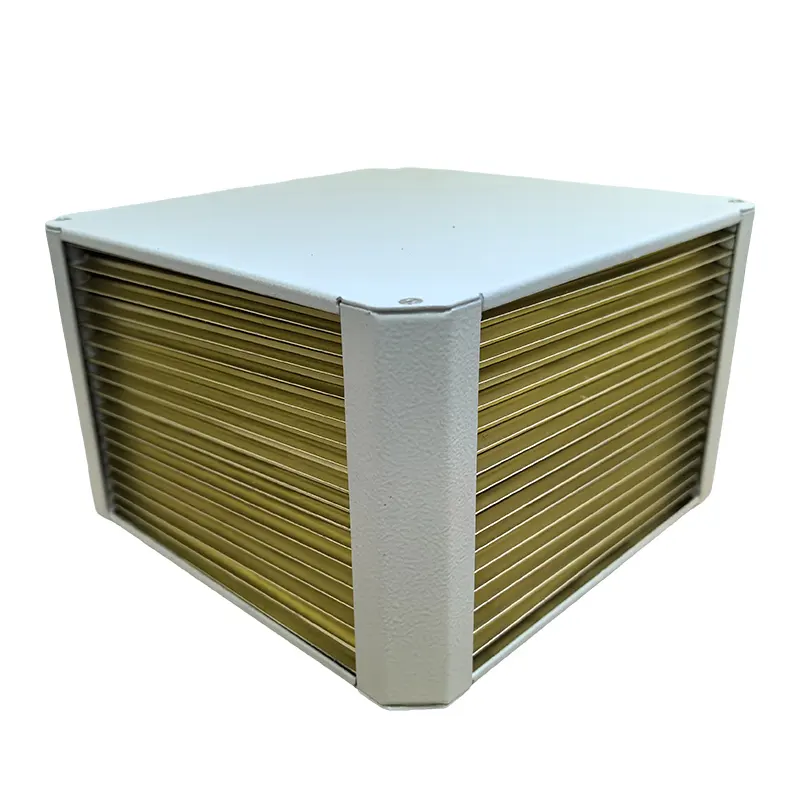

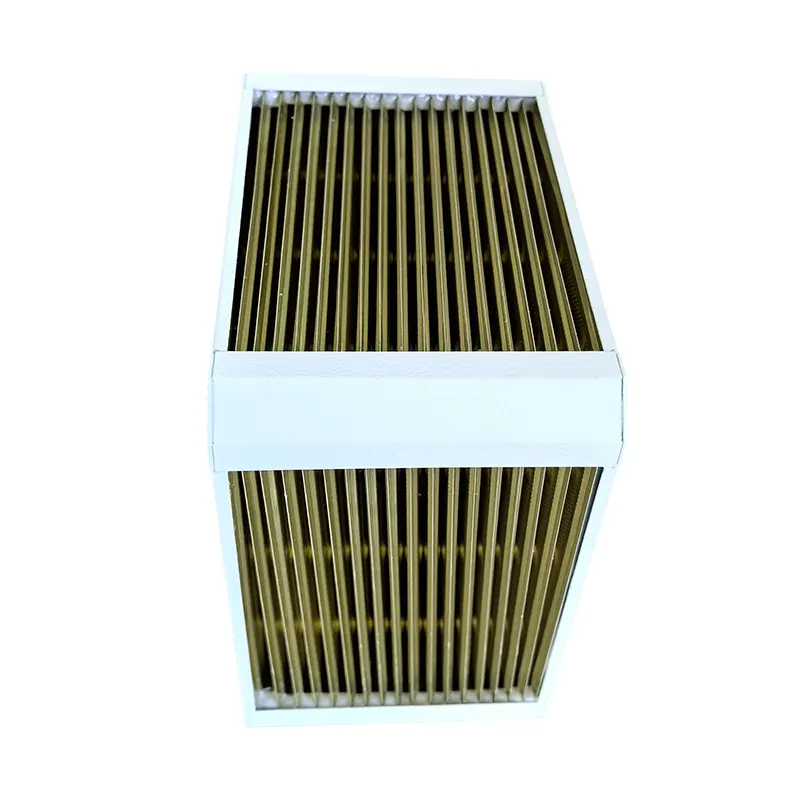

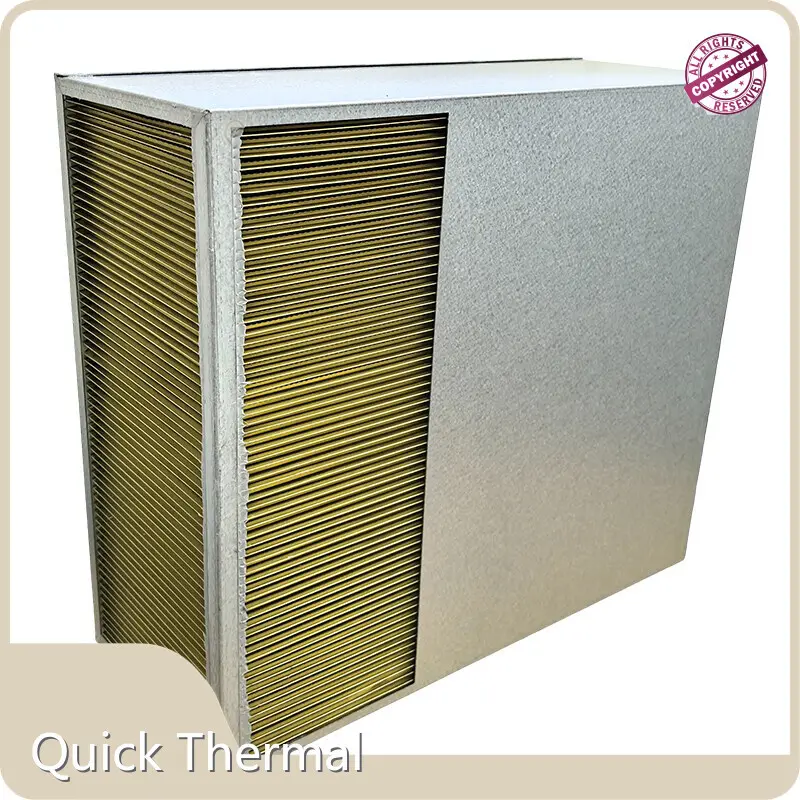

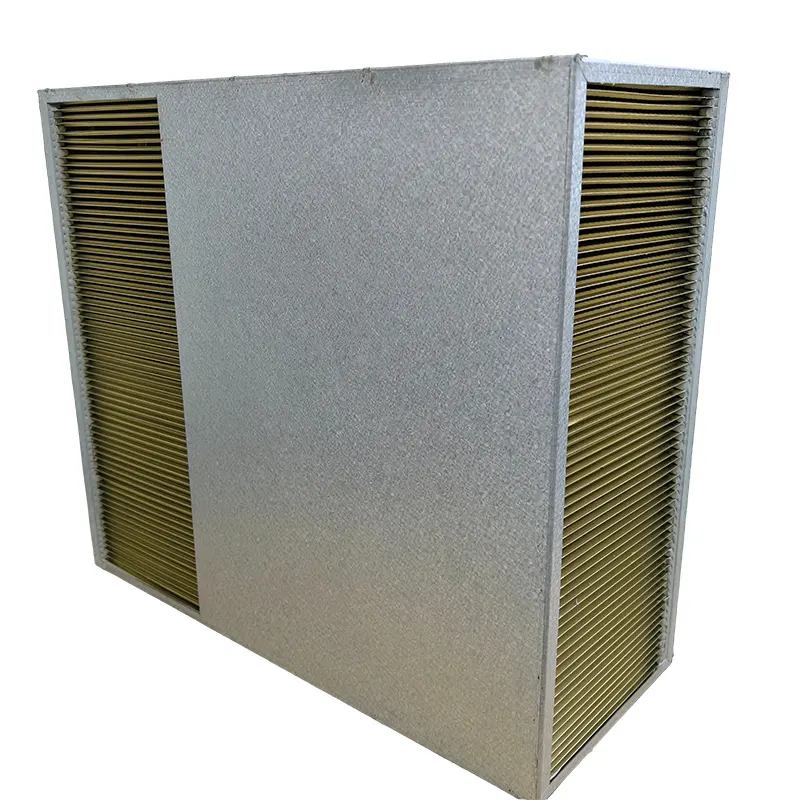

Air to Air Heat Exchanger Core - - Quick Thermal
Product Design Feature
Manufacturing Process:
The gluing process is strictly required to ensure a solid connection between the fins and the heat exchange core. The shell body's connecting lugs need to be precisely pressed to ensure structural stability. The fin angle at the air outlet is controlled within 15 degrees, with even spacing, no deformation or damage, and maintained cleanliness.
Quality Control:
The use of silicone is strictly controlled, not to exceed the outer surface of the shell, allowing a small amount of residual glue that does not affect assembly. The product has passed the IEC68-2-52 standard's severe level 2 alternating salt spray test, with no corrosion on the fins after 10 cycles, proving its excellent corrosion resistance.
Size Accuracy:
The hole position tolerance is ±0.2mm, the outer dimension tolerance is ±0.5mm, and other sizes follow the GB/T1804-m standard, ensuring the precision and consistency of the product.
Environmental Protection and Safety:
The heat exchange core has a protection level of IP55, adapting to harsh environments and preventing dust and water intrusion. It complies with the ROHS standard, restricting the use of harmful substances, protecting the environment and health.
Technical Innovation:
The sensible heat exchange core uses hydrophilic coated aluminum foil to quickly transfer heat and minimize environmental impact. The modular structure and design without moving parts make the heat exchanger compact, customizable, and low maintenance. The spiral wave heat transfer enhancement technology increases the heat transfer area and efficiency, ensuring strength and sealing under high pressure.
Wide Application:
Suitable for residential, commercial, and industrial applications, including HVAC and wind power industries, demonstrating technological innovation in energy conservation and air quality management.
Product parameter
| Model | Spec (L*W) (mm) | Plate Distance (mm) |
| 250/250 | 250 X 250 | 2.2 |
| 315/315 | 315 X 315 | 2.5 |
| 400/95 | 400 X 95 | 4 |
| 400/200 | 400 X 200 | 2.2 |
| 460/190 | 460 X 190 | 3 |
| 450/140 | 450 X 140 | 4 |
| 600/235 | 600 X 235 | 4.5 |
Company Advantages
· Professional design: the design of Quick Thermal air to air heat exchanger core is finished by a team of professionals. They are fully equipped with the industry know-how and design the product by utilizing the most professional knowledge.
· It has passed a number of international certificates to ensure quality and performance.
· Suzhou Quick Thermal Control Technology Co.,LTD not only pays attention to domestic product standards, our air to air heat exchanger core has passed international certificates.
Company Features
· Since its inception, Suzhou Quick Thermal Control Technology Co.,LTD has evolved into a competitive manufacturer of air to air heat exchanger core and has become a reliable producer.
· Our company has excellent designers. They understand the changing fashions and trends of the air to air heat exchanger core market, so they are able to come up with product ideas based on industry requirements.
· Quick Thermal aims to advance in exporting air to air heat exchanger core. Contact us!
Application of the Product
air to air heat exchanger core of Quick Thermal can play a role in various industries.
Through problem analysis and reasonable planning, we provide our customers with an effective one-stop solution to the actual situation and needs of customers.
