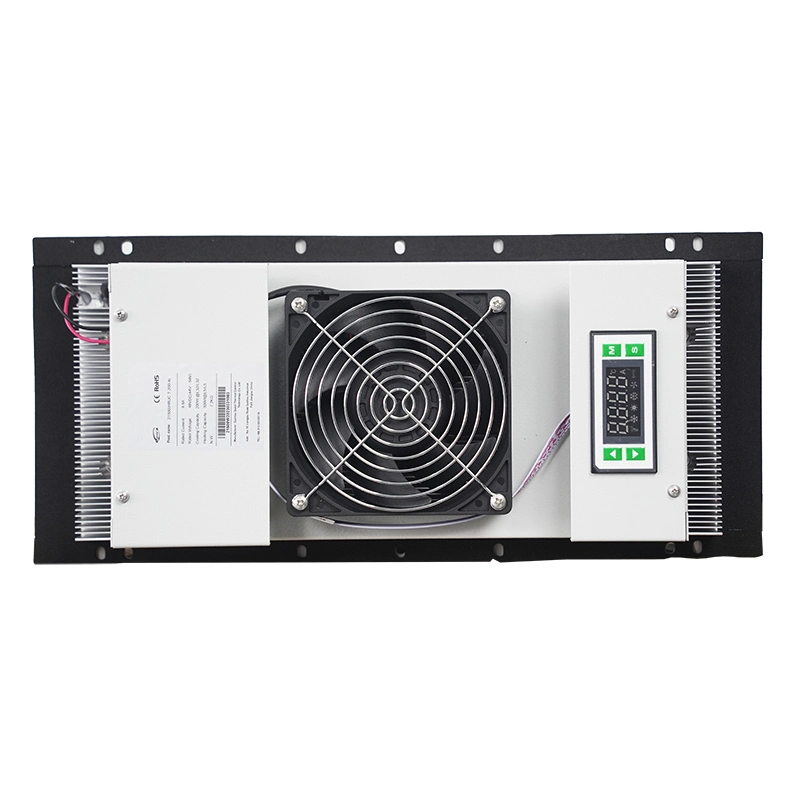

Quick TEC Air Cooler Thermoelectric Peltier Lower Noise
Product Overview
This product is the perfect solution for cooling telecommunication battery cabinets, drone battery cabinets, and mini cabinets, offering more efficient cooling and lower noise. It utilizes intelligent control with the MODBUS protocol and possesses an alarm output function, equipped with a standard LED manual controller. The product satisfies the need for safe, comfortable charging, data storage, and exchange services in the temperature-controlled range of drone battery cabinets in outdoor environments.
Product Design Feature
● Refrigeration system is not used refrigerants, few movement part, small volume
● Strict process control and international brand parts deployed to ensure high qualityand reliable of this product
● Multiple self protection design, RS485 communication through MODBUS protocol
● Circulation fans stepless speed regulation function
● The heating function optional
● Eliminate hydrogen function optional
● Dry contact alarm output, NO/ NC optional
● LED Display, all the settings can changed at the field.
Product parameter
| Name | Thermoelectric (Pilter) air cooler |
| P/N | 121500 |
| Model | TT200/E/D |
| Power Supply | -48VDC Nominal (- 44VDC ~ - 58VDC) |
| Cooling Capacity | 200W@L32/L32 |
| Consumption | 350W@L32/L32 |
| Heating Capacity (Optional) | 300W@L5/L5 |
| Internal Airflow | 240m³/h |
| Working Temperature Range | -10℃~+55℃ |
| Noise Level | 67dB(A) |
| IP Grade | IP55 |
| Net Weight | 7.0kg |
| Mounting Method | Semi-embedded Mounting |
| Dimensions | 400x180x178 (mm, HxWxD) |
| CE&RoHS Compliant | YES |
