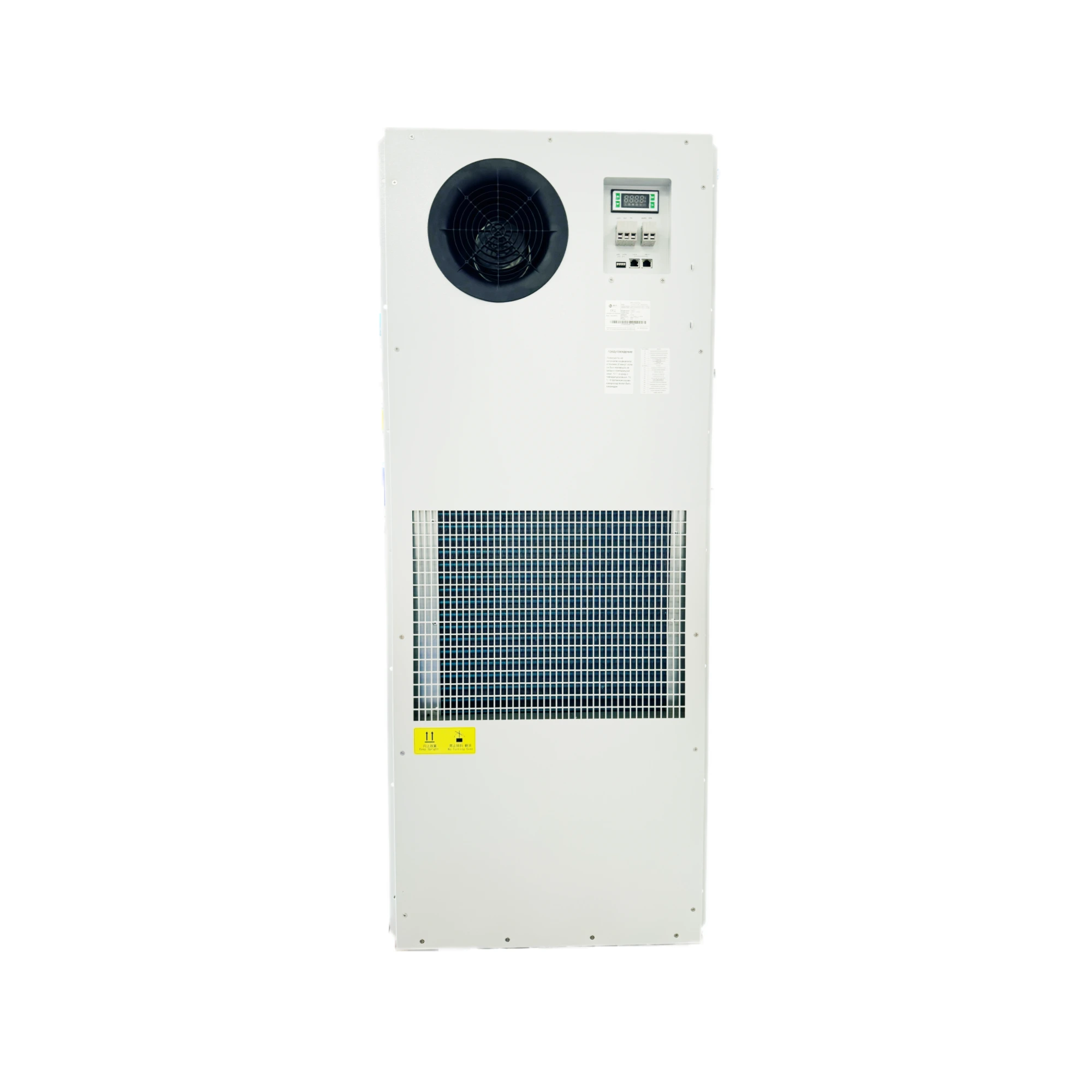

Quick Cabinet Air Conditioner Outdoor 220VAC 48VDC 3000W Energy-saving Control Technology R134a
This Outdoor Cabinet Air Conditioner is designed for a wide range of applications including outdoor communication cabinets, battery cabinets, electrical cabinets, and industrial control cabinets where heat dissipation is essential. It features a dual power supply for enhanced reliability, especially suitable for outdoor use. The unit incorporates remote measurement, communication, and control capabilities, enabling multiple automatic protections and comprehensive self-diagnostics. With meticulous craftsmanship and high-quality international brand components, it ensures stability and reliability. The unique energy-saving control technology and adjustable-speed DC fan contribute to noise reduction. It is equipped to handle T3 high-temperature conditions and uses the environmentally friendly R134a refrigerant. Additional features include multiple self-protection designs, a visible monitoring interface, RS422/RS485 communication ports (MODBUS-RTU protocol), LED display for field setting adjustments, a heating function, and dry contact alarm outputs with NO/NC options. This air conditioner is CE and RoHS compliant, ensuring safety and environmental standards are met.
Product Design Feature
1、 Double power supply, reliability greatly improved, especially suitable for telecom outdoor cabinet;
2、 Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
3、 Strict process control and international brand parts deployed to ensure high quality and reliable of this product;
4、 Unique energy-saving & control technology;
5、 DC Fan speed PWM control, low acoustic noise during low speed running;
6、Fit for T3 high temperature working condition by using of R134a refrigerant gas;
7、Multiple self-protection design & visible monitoring interface, RS422 / RS485 communication port (MODBUS-RTU protocol);
8、LED Display, all the settings can be changed at the field;
9、 The heating function ;
10、 Dry contact alarm output,NO/NC optional;
11、 Equipped with communication interface: RS422 / RS485 optional.
Product parameter
| Name | Outdoor Cabinet Air Conditioner |
| Model | 8704B TA 030/E/A/H10 |
| Mounting Method | Semi-embedded Mounting |
| AC Power Supply | 220V±15% 50Hz |
| DC Power Supply | 48V±20% |
| Cooling Capacity | 3000W@L35/L35 |
Cooling Consumption |
AC 1020W @L35/L35 |
| DC 200W @L35/L35 | |
| Cooling Capacity | 2330W@L35/L55 |
Power Consumption |
AC 1320W @L35/L55 |
| DC 200W @L35/L55 | |
| Internal Airflow | 850 m³/h |
| Working Temperature Range | -40℃~+55℃ |
| Max Noise Level | 65dB(A) |
| IP Grade | IP55 |
| Net Weight | 27Kg |
| Refrigerant | R134a |
| Dimensions | 1304x504x250(mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating, standard color: RAL7035 |
| Heater(Option) | 1000W |
| Heating power consumption |
1100W |
