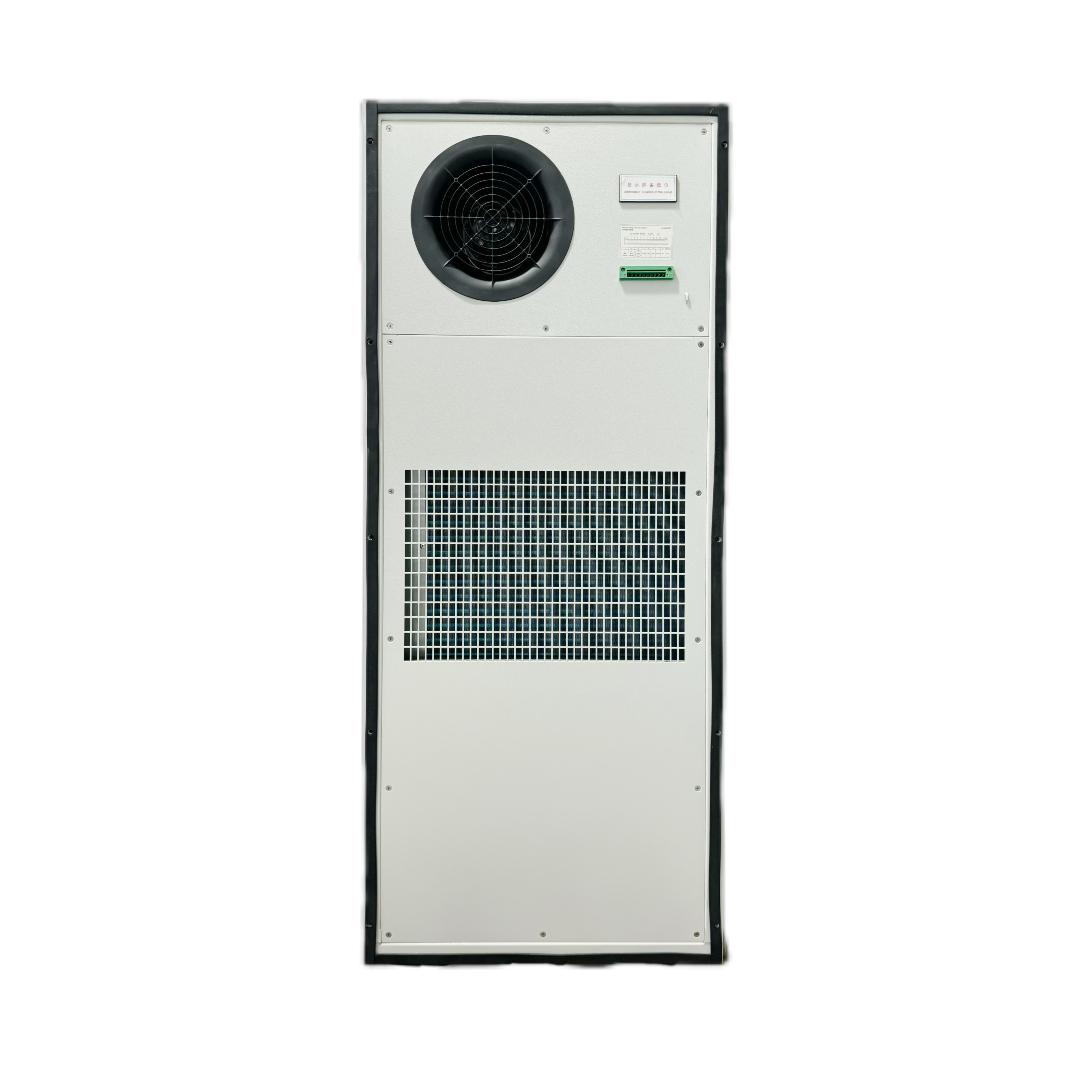

Quick Cabinet Air Conditioner 230VAC 3000W Remote control LED display RS485 Communication port

The indoor cabinet air conditioner model TA 030 /S/A is a high-efficiency climate control system specifically designed for industrial environments. It is suitable for a variety of enclosed spaces, such as machine tools, battery cabinets, and industrial control cabinets. This air conditioner uses the environmentally friendly refrigerant R134a and can operate stably under extreme conditions (T3 rating), while also featuring multiple self-protection and comprehensive self-inspection functions, ensuring the product's high reliability. Remote control and monitoring are facilitated through the RS485 communication port (supporting the MODBUS-RTU protocol), and the LED display allows users to easily change settings on-site. Additionally, the product can be optionally equipped with a filter net and dry contact alarm output, and it has a built-in condensate evaporator, further enhancing its practicality in industrial applications. Technical parameters include a 230V power supply, a wide working temperature range (-40°C to +55°C), and an IP54 protection rating, ensuring durability in harsh environments.

    oops...!

    no product data.

    Go to homepage

    Product Design Feature

    1、  Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;

    2、  Strict process control and famous brand components to ensure high quality and reliability of this product;

    3、  Fit for harsh condition (T3), R134a refrigerant ;

    4、  Multiple self-protection design & visible monitoring interface, RS485 communication port (MODBUS-RTU protocol);

    5、  LED display, all the settings can changed at the field;

    6、  The filter net is optional;

    7、  Dry contact alarm output,NO/NC optional;

    8、  Built in condensed water evaporator.

    微信图片_20240823142621
    微信图片_20240823142625

    1、  Modular Design: The product may adopt a modular design concept, facilitating maintenance and upgrades, ensuring a long service life and lower operating costs.

    2、  Low-Noise Operation: With a low noise level of 65dB(A), it is suitable for industrial applications that require a quiet environment, reducing the impact of noise on operators and the surrounding area.

    3、  High Protection Rating: The IP54 protection rating ensures that the air conditioner can withstand dust and water splashes, making it suitable for use in dusty or humid industrial environments.

    4、  Energy-Efficient Performance: Through an efficient cooling cycle and optimized internal airflow design, the air conditioner provides stable temperature control while also focusing on energy efficiency, helping to reduce energy consumption.

    5、  Flexible Installation Options: Supports various installation methods such as side mounting, along with detailed installation instructions, allowing the product to adapt to different customers' specific installation requirements and space limitations.

    Product parameter

    Name Indoor Cabinet Air Conditioner
    Model TA 030 /S/A
    Mounting Method Side Mounting
    Power Supply 230VAC±15%     50Hz/60Hz
    Cooling Capacity 3000W@L35/L35
    Power Consumption 1300W@L35/L35
    Cooling Capacity 1900W@L35/L55
    Power Consumption 1650W@L35/L55
    Internal Airflow 950 m³/h
    Working Temperature Range -40℃~+55℃
    Max Noise Level 65dB(A)
    IP Grade IP54
    Net Weight 50Kg
    Refrigerant R134a
    Dimensions 1150x485x220(mm, HxWxD)
    CE&RoHS Compliant YES
    Surface Treatment Outdoor type powder coating, standard color: RAL7035
    Filter net Optional
    Condensed water evaporator
    Optional
