Small Cabinet Air Conditioner Directly Sale

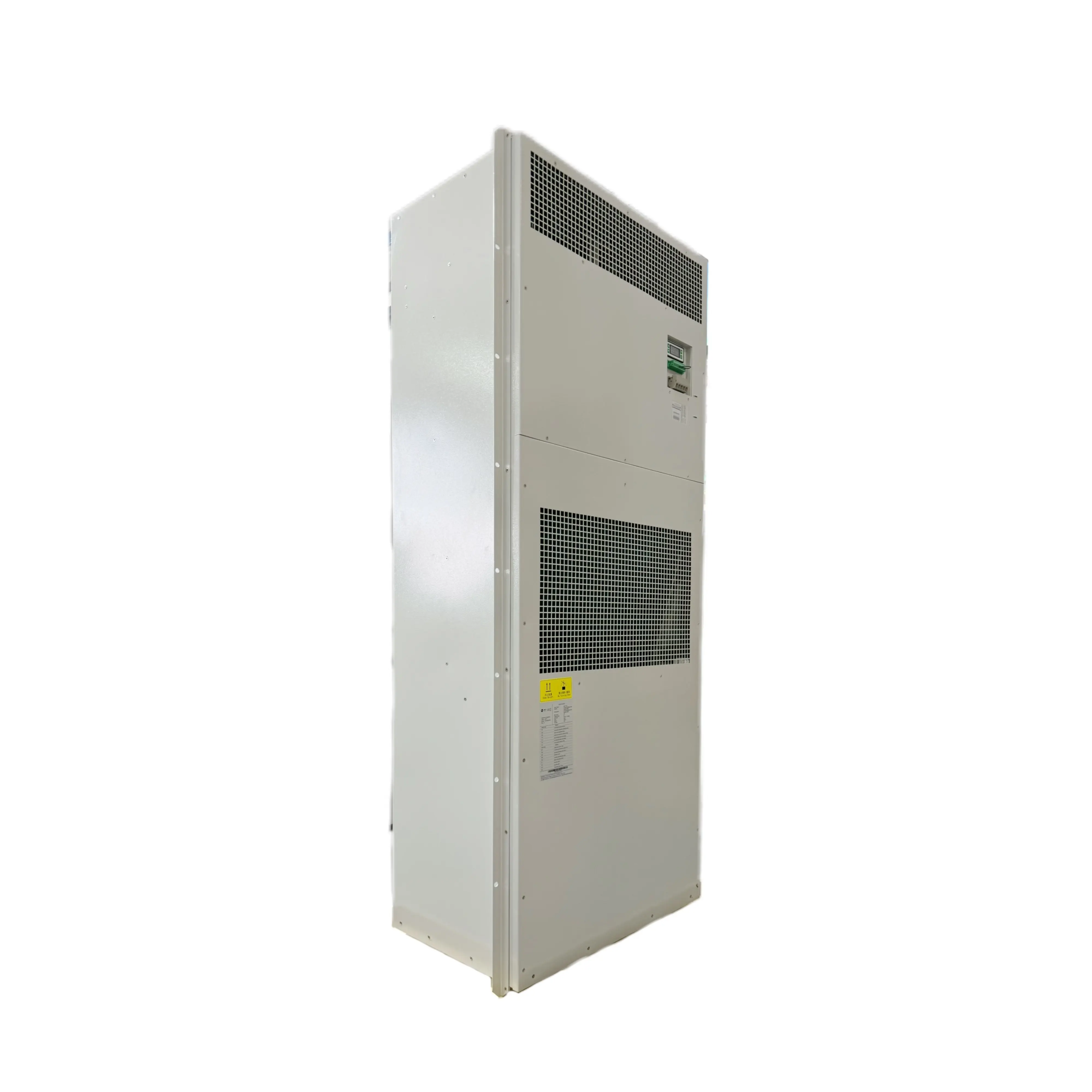

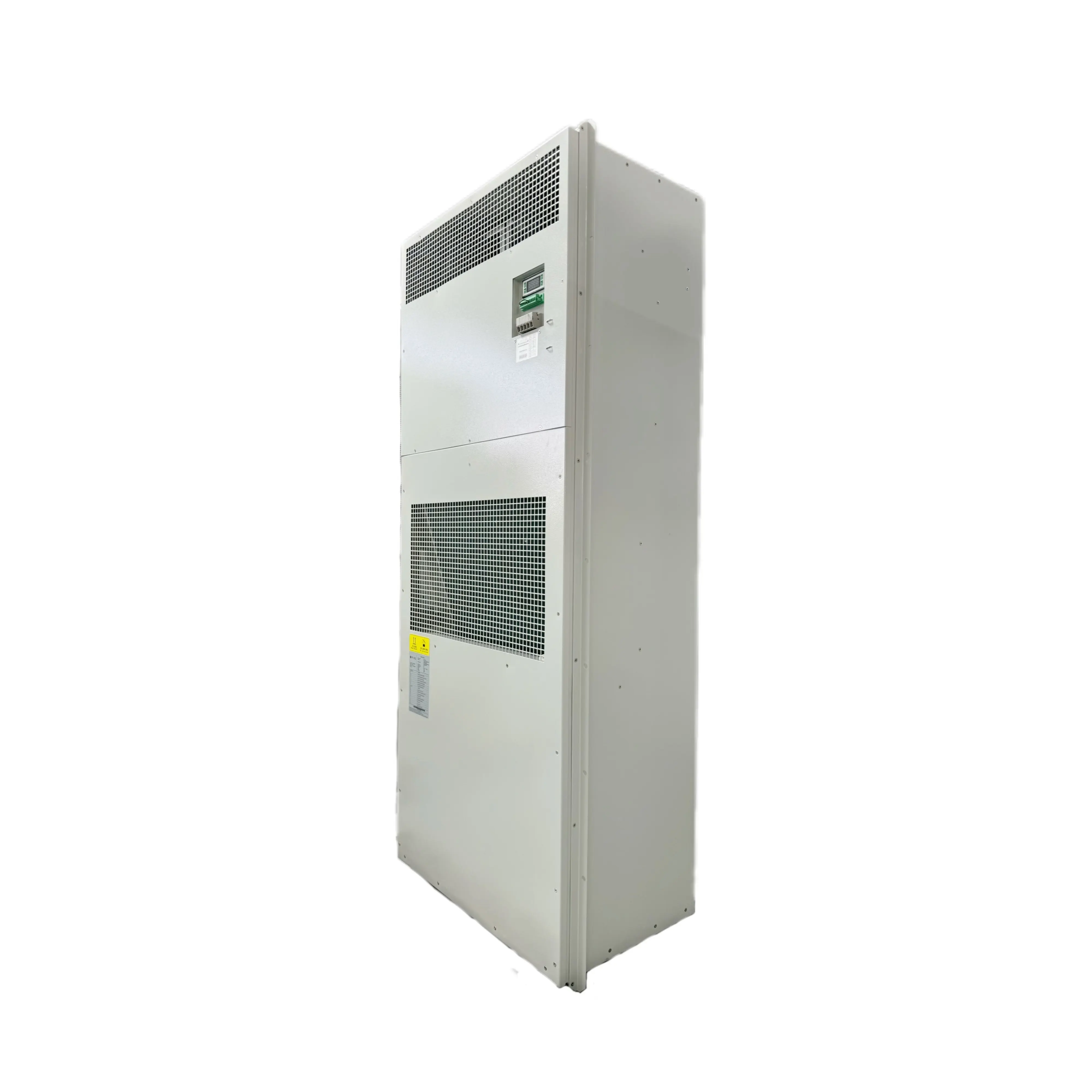

Product details of the small cabinet air conditioner
Product Overview
Quick Thermal small cabinet air conditioner is delicately manufactured by excellent production team using advanced technology and sophisticated equipment. The quality check team adopts impeccable quality of testing instruments and system to make sure the best quality. The product, with the advantages of high cost performance, has become the development trend in the field.
Product Information
Compared with similar products, the small cabinet air conditioner of Quick Thermal is more strict in the selection of raw materials. The specific aspects are as follows.
Product Design Feature
1、Wide Application: Suitable for outdoor communication cabinets, battery cabinets, electrical cabinets, industrial control cabinets, and other occasions that require heat dissipation.
2、High Cooling Efficiency: With a cooling capacity of up to 7500W@L35/L35, it can meet the cooling needs of high-power equipment.
3、Wide Temperature Range Operation: Operates in a temperature range of -15℃ to +55℃, adapting to various harsh environments.
4、Protection Rating: IP55 rating, suitable for outdoor use, dustproof and waterproof.
5、High-Quality Components: Uses strict process control and well-known brand components to ensure high quality and reliability of the product.
6、T3 Environment Adaptability: Suitable for harsh T3 conditions, using the environmentally friendly refrigerant R410A.
7、Intelligent Control: Supports remote measurement, remote communication, and remote control, achieving multiple automatic protections and comprehensive self-testing functions.
8、Display and Monitoring: LED display, all settings can be changed on-site, providing an intuitive monitoring interface.
9、Alarm Output: Provides dry contact alarm output, with options for normally open/normally closed (NO/NC).
10、Anti-Theft Design: No need for a protective cover, with
anti-theft design.

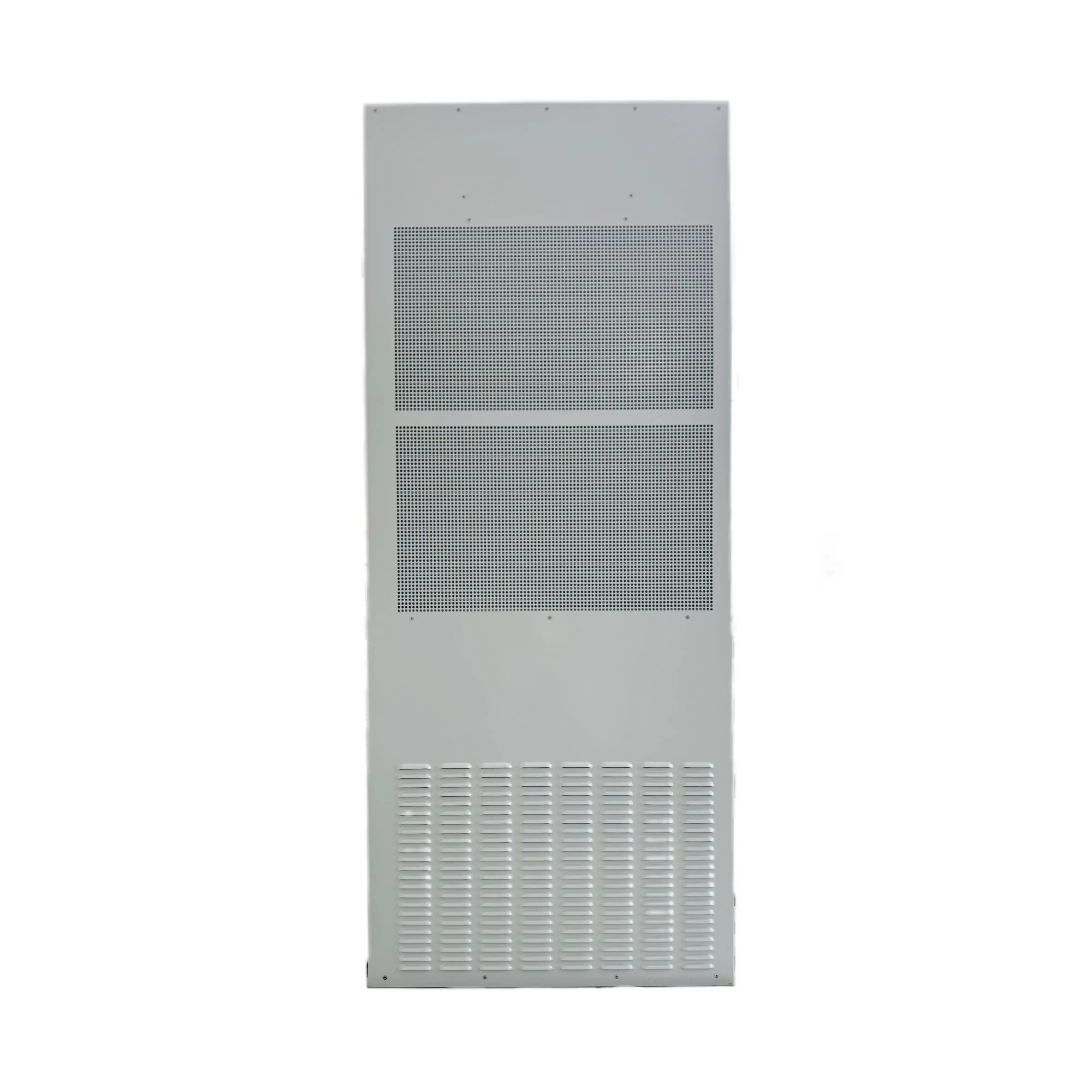

11、Installation Method: Semi-embedded mounting, with round hole array and louver structure, ensuring sufficient circulation air volume.
Product parameter
| Name | Outdoor Cabinet Air Conditioner |
| Model | TA 075 /E/T /H40 |
| Mounting Method | Semi-embedded Mounting |
| Power Supply | 380VAC±10% 50Hz |
| Cooling Capacity | 7500W@L35/L35 |
| Power Consumption | 3250W@L35/L35 |
| Cooling Capacity | 5800W@L35/L55 |
| Power Consumption | 3850W@L35/L55 |
| Internal Airflow | 1600 m³/h |
| Working Temperature Range | -15℃~+55℃ |
| Max Noise Level | 70dB(A) |
| IP Grade | IP55 |
| Net Weight | 140Kg |
| Refrigerant | R410a |
| Dimensions | 1600x660x400(mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating, standard color: RAL7035 |
| Heater(Option) | 4000W |
Company Advantages
Suzhou Quick Thermal Control Technology Co.,LTD mainly focuses on the development, production, and sales of small cabinet air conditioner. We have accumulated many years of experience in the manufacturing and supplying in this field. Suzhou Quick Thermal Control Technology Co.,LTD has constantly upgraded to new platforms with precise strategic positioning and excellent execution efficiency. Our goal is to be an active and responsible leader, committed to the sustainable development of global markets, and to promote responsible practices in our industry. Call now!
With years of experience in production, we guarantee our product quality so you can purchase them with confidence. Feel free to contact us!
