Quick Thermal Components of Air Conditioning System Components of Air Conditioning Systemmanufacturing
Company Advantages
· This Quick Thermal components of air conditioning system is designed by experienced engineers with in-depth industrial knowledge.
· The products are distinguished by reliable quality, stable performance and long service life.
· Suzhou Quick Thermal Control Technology Co.,LTD has taken a big jump in technology and service capacity in components of air conditioning system field.
Product Design Feature
1. Designed with all DC driven components like fans, compressor;
2. Precise temperature control through inverter digital regulation of compressor, fans;
3. Power supply voltage range: DC44~59 V;
4. A comprehensive sell-protection design to realize partial load starting, partial load operation at severe ambient condition;
5. Low power consumption design with EER≥3.5, SEER≥5.5;
6. Energy saving reach to 50% comparing with A.C. version product;
7. IP55 environment protection & fit for T3 high temperature working condition by using of R134a refrigerant gas;
8. The best cooling solution for solar, wind, disel generator etc, hybrid power system;
9. Strict process control and international brand parts deployed to ensure high quality and reliable of this product;
10. Multiple self protection design;
11. LED Display, all the settings can be changed at the field;
12. Dry contact alarm output, NO/NC optional;
13. Equipped with communication interface:RS485.
Product parameter

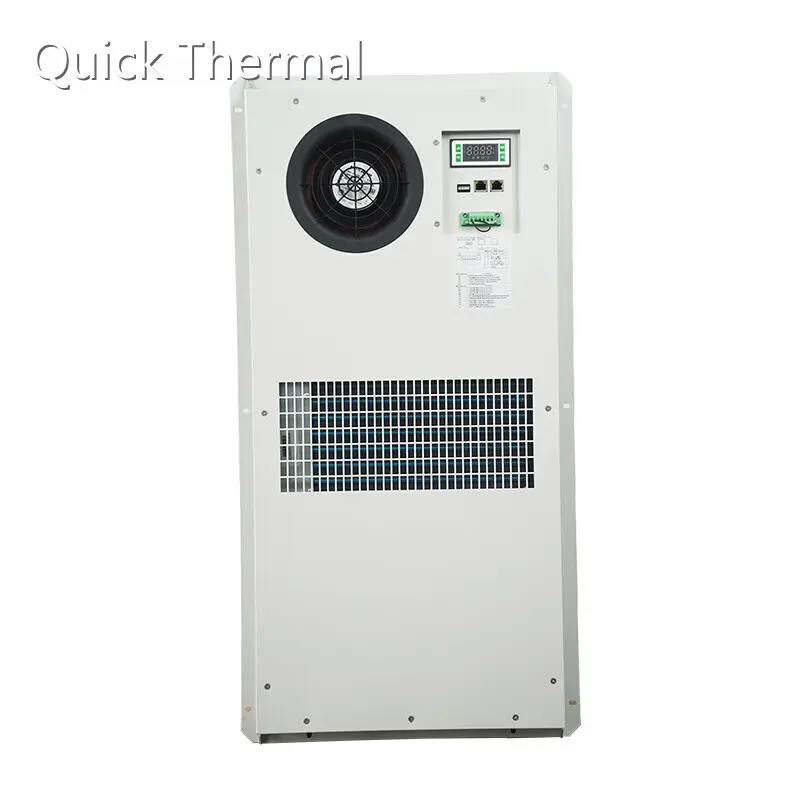

| Name | Outdoor Cabinet Air Conditioner |
| Model | TA010/E/D |
| Mounting Method | Semi-embedded Mounting |
| Power Supply | -48VDC |
| Cooling Capacity | 1000W@L35/L35 |
| Power Consumption | 280W@L35/L35 |
| Cooling Capacity | 570W@L35/L55 |
| Power Consumption | 400W@L35/L55 |
| Internal Airflow | 400 m³/h |
| Working Temperature Range | -40℃~+55℃ |
| Max Noise Level | 65dB(A) |
| IP Grade | IP55 |
| Net Weight | 27Kg |
| Refrigerant | R134a |
| Dimensions | 797x385x165(mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating, standard color: RAL7035 |
| Heater(Option) | DC300W |
