Industrial Enclosure Air Conditioner Manufacturing
Product Design Feature
1.、Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function
2、Strict process
control and famous brand components to ensure high quality and reliability of
this product
3、Fit for harsh
condition (T3), R134a refrigerant
4、Multiple
self-protection design & visible monitoring interface, RS485 communication
port (MODBUS-RTU protocol);
5、LED display, all the
settings can changed at the field;
6、Air conditioner with
heater function
7、Air conditioner with
humidity control function
8、Dry contact alarm
output,NO/NC optional;
Product parameter

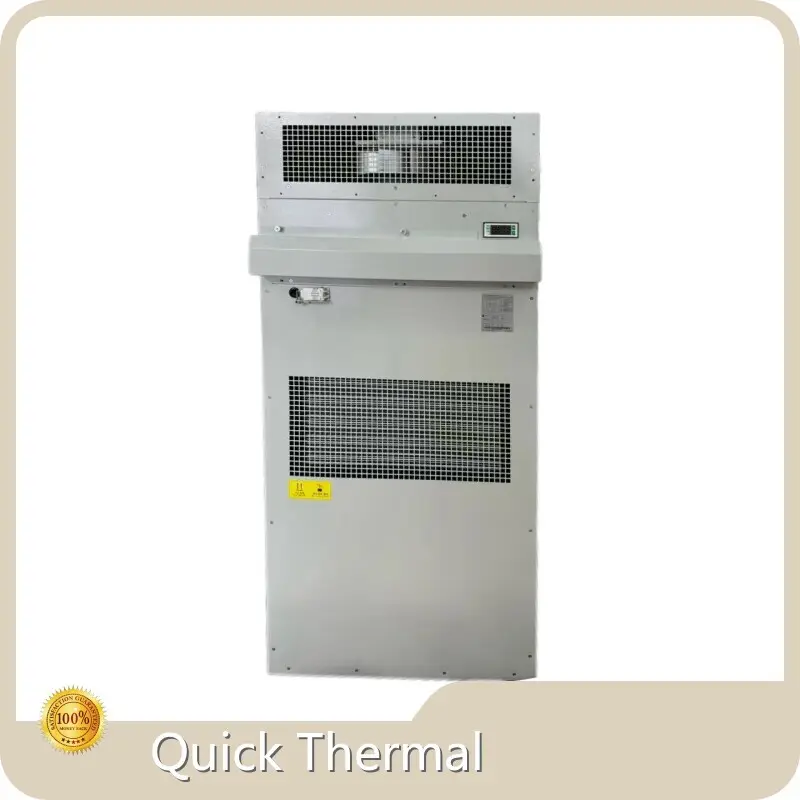

| Name | Outdoor Cabinet Air Conditioner |
| Model | TA050/E/A/H30 |
| Mounting Method | Semi-embedded Mounting |
| Power Supply | 220-240V±10% 50Hz |
| Cooling Capacity | 5000W@L35/L35 |
| Power Consumption | 2000W@L35/L35 |
| Cooling Capacity | 3700W@L35/L55 |
| Power Consumption | 2500W@L35/L55 |
| Internal Airflow | 1410 m³/h |
| Working Temperature Range | -40℃~+55℃ |
| Max Noise Level | 65dB(A) |
| IP Grade | IP55 |
| Net Weight | 95Kg |
| Refrigerant | R134a |
| Dimensions | 1350x620x300(mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating, standard color: RAL7035 |
| Heater | 3000W |
Company Advantages
· Quick Thermal industrial enclosure air conditioner is designed and manufactured using high-quality material and the latest techniques in compliance with industry standards.
· Experienced quality inspectors ensure that the product meets the highest quality standards.
· There is room for continuous development for this product.
Company Features
· Quick Thermal is a famous exporter in the field of industrial enclosure air conditioner.
· These industrial enclosure air conditioner are designed and developed in tandem with industry norms and standards.
· For the purpose of being the industrial enclosure air conditioner supplier, Quick Thermal always keeps on moving. Get an offer!
Application of the Product
The industrial enclosure air conditioner produced by Quick Thermal has a wide range of applications.
Guided by the actual needs of customers, Quick Thermal provides comprehensive, perfect and quality solutions based on the benefit of customers.
