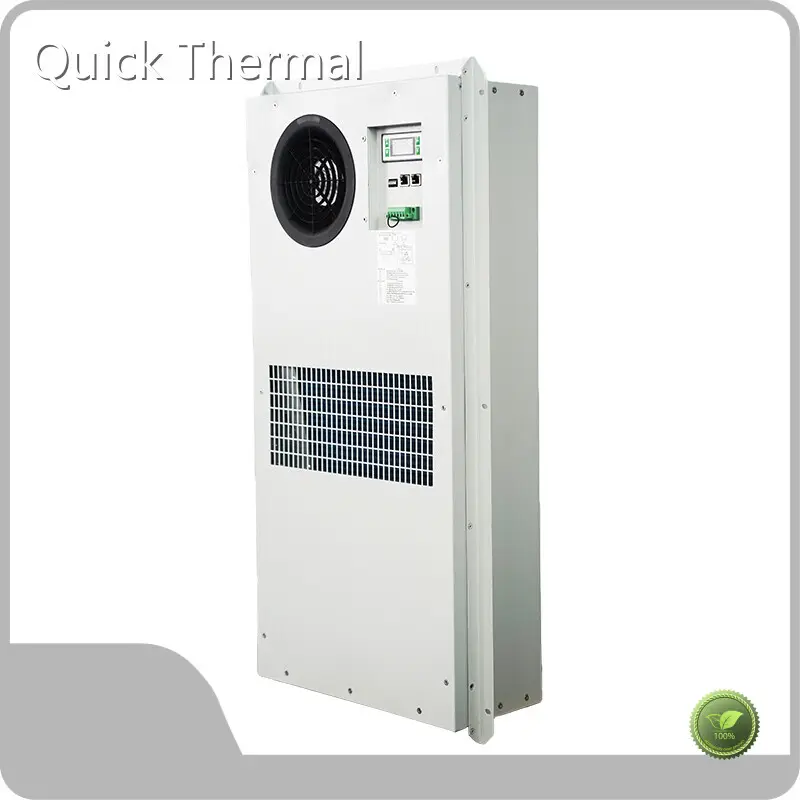

Industrial Cabinet Air Conditioners by Quick Thermal
Product details of the industrial cabinet air conditioners
Product Introduction
Quick Thermal industrial cabinet air conditioners is elaborately designed by professional design team. Excellent performance and long service life make the product competitive. The product uses its own strength to win the trust of many customers both at home and abroad and enjoys an increasing market share.
Product Design Feature
With a wide power supply voltage range (DC42~60V), an energy efficiency ratio (EER) of up to 3.5, and a seasonal energy efficiency ratio (SEER) of 5.5, this air conditioner can save up to 50% energy compared to traditional AC versions, providing users with significant economic and environmental benefits.
The air conditioner's IP55 protection rating and T3 high-temperature operating condition adaptability make it an ideal choice for harsh outdoor environments. The use of environmentally friendly R1234yf refrigerant not only enhances the reliability of the air conditioner but also demonstrates a commitment to environmental protection.
The 188521 TA020 E D model also features multiple self-protection designs to ensure the equipment operates safely under various conditions. The inclusion of an LED display and RS485 communication interface provides convenient equipment setup and monitoring, enhancing the flexibility and convenience of use.
In terms of application scenarios, this air conditioner is highly suitable for outdoor base stations, data centers, industrial automation equipment, and other situations requiring stable heat dissipation. Whether in the sweltering heat of summer or under extreme outdoor conditions, it provides reliable cooling support to ensure the normal operation and long-term stability of critical equipment.
Product parameter
| Name | Outdoor Cabinet Air Conditioner |
| Model | TA 020/E/D |
| Mounting Method | Semi-embedded Mounting |
| Power Supply | -48VDC |
| Cooling Capacity | 2000W@L35/L35 |
| Power Consumption | 645W@L35/L35 |
| Cooling Capacity | 1300W@L35/L55 |
| Power Consumption | 750W@L35/L55 |
| Internal Airflow | 450m /h |
| Working Temperature Range | -15℃~+55℃ |
| Max Noise Level | 69dB(A) |
| IP Grade | IP55 |
| Net Weight | 32kg |
| Refrigerant | R134a |
| Dimensions | 783x479x200(mm,HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating,standard color:RAL7035 |
| Heater | Optional(1000W) |
Company Advantage
• Our company has established sales outlets throughout the country. Our products are exported to overseas regions, and are favored by consumers.
• Our company has a high-quality management team, excellent R & D team, intimate service team, and also set up a professional distribution team. All this provides a good guarantee for our product development, sales services, transportation and distribution.
• Quick Thermal insists on providing high-quality services for customers. We do that by establishing a good logistics channel and comprehensive service system covering from pre-sales to sales and after-sales.
• Quick Thermal was founded in After years of development, we accumulate a wealth of production experience and professional technical knowledge.
We have high production efficiency, and we look forward to the cooperation with you.
