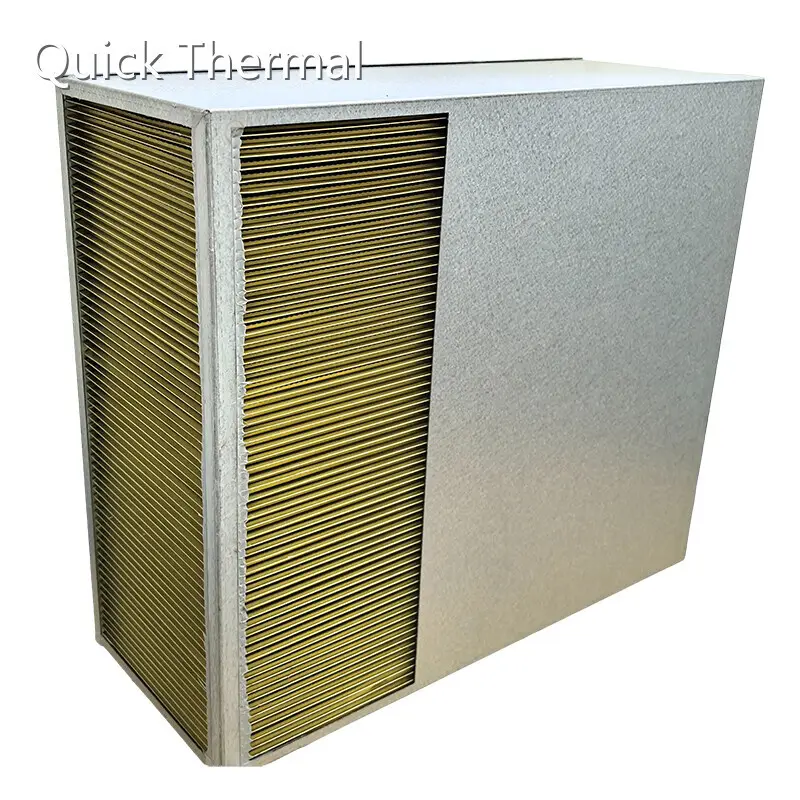

Hot Selling Air to Air Heat Exchanger Core From China
Product Design Feature
Manufacturing Process:
The gluing process is strictly required to ensure a solid connection between the fins and the heat exchange core. The shell body's connecting lugs need to be precisely pressed to ensure structural stability. The fin angle at the air outlet is controlled within 15 degrees, with even spacing, no deformation or damage, and maintained cleanliness.
Quality Control:
The use of silicone is strictly controlled, not to exceed the outer surface of the shell, allowing a small amount of residual glue that does not affect assembly. The product has passed the IEC68-2-52 standard's severe level 2 alternating salt spray test, with no corrosion on the fins after 10 cycles, proving its excellent corrosion resistance.
Size Accuracy:
The hole position tolerance is ±0.2mm, the outer dimension tolerance is ±0.5mm, and other sizes follow the GB/T1804-m standard, ensuring the precision and consistency of the product.
Environmental Protection and Safety:
The heat exchange core has a protection level of IP55, adapting to harsh environments and preventing dust and water intrusion. It complies with the ROHS standard, restricting the use of harmful substances, protecting the environment and health.
Technical Innovation:
The sensible heat exchange core uses hydrophilic coated aluminum foil to quickly transfer heat and minimize environmental impact. The modular structure and design without moving parts make the heat exchanger compact, customizable, and low maintenance. The spiral wave heat transfer enhancement technology increases the heat transfer area and efficiency, ensuring strength and sealing under high pressure.
Wide Application:
Suitable for residential, commercial, and industrial applications, including HVAC and wind power industries, demonstrating technological innovation in energy conservation and air quality management.
Product parameter
| Model | Spec (L*W) (mm) | Plate Distance (mm) |
| 250/250 | 250 X 250 | 2.2 |
| 315/315 | 315 X 315 | 2.5 |
| 400/95 | 400 X 95 | 4 |
| 400/200 | 400 X 200 | 2.2 |
| 460/190 | 460 X 190 | 3 |
| 450/140 | 450 X 140 | 4 |
| 600/235 | 600 X 235 | 4.5 |
Company Advantages
· With the efforts of our fine workmanship, Quick Thermal has gained much popularity since founded.
· The product is qualified with international quality standards.
· Suzhou Quick Thermal Control Technology Co.,LTD will establish and improve the process assurance system to provide customers with personalized professional air to air heat exchanger core products and services.
Company Features
· Quick Thermal is responsible for business, and is the leading provider of air to air heat exchanger core.
· Our air to air heat exchanger core quality is in line with European quality standards.
· Quick Thermal sincerely hope to build up long-term cooperation relationships with every customers by high quality. Inquire!
Application of the Product
The air to air heat exchanger core produced by Quick Thermal is widely used in industry.
According to different needs of customers, Quick Thermal is capable of providing reasonable, comprehensive and the most cost-effective solutions for customers.
