Enclosure Air Conditioners Manufacturers - - Quick Thermal
Product Design Feature

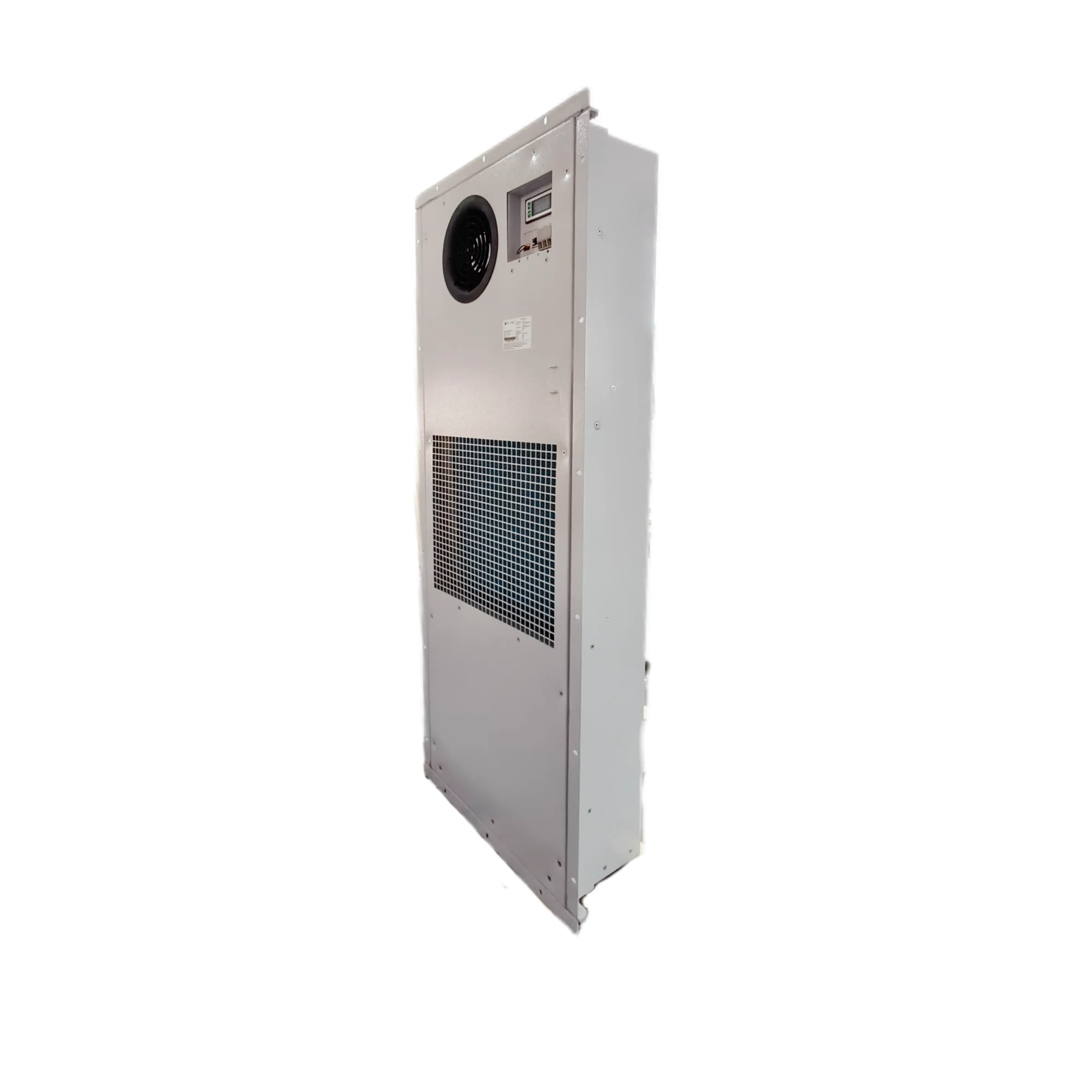

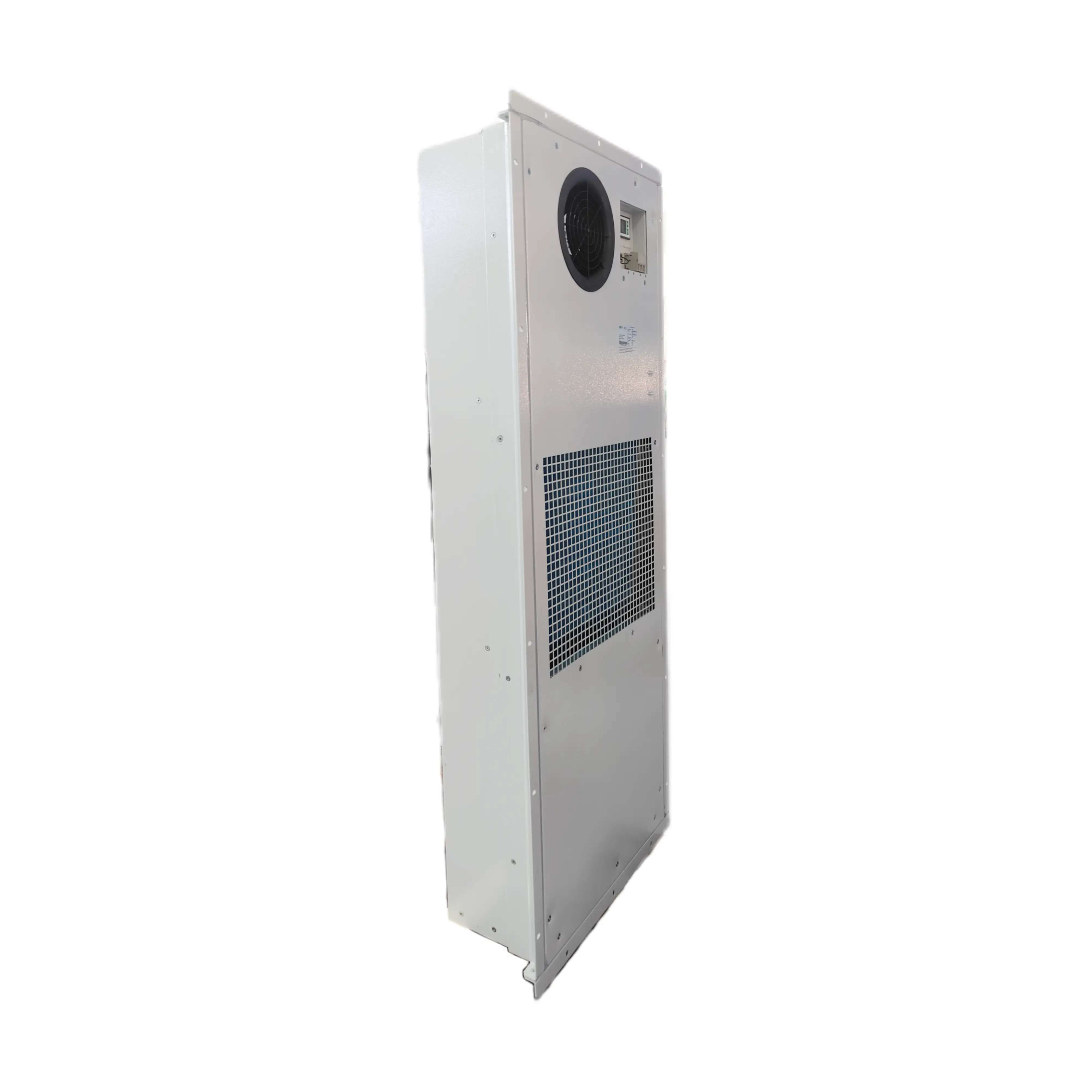

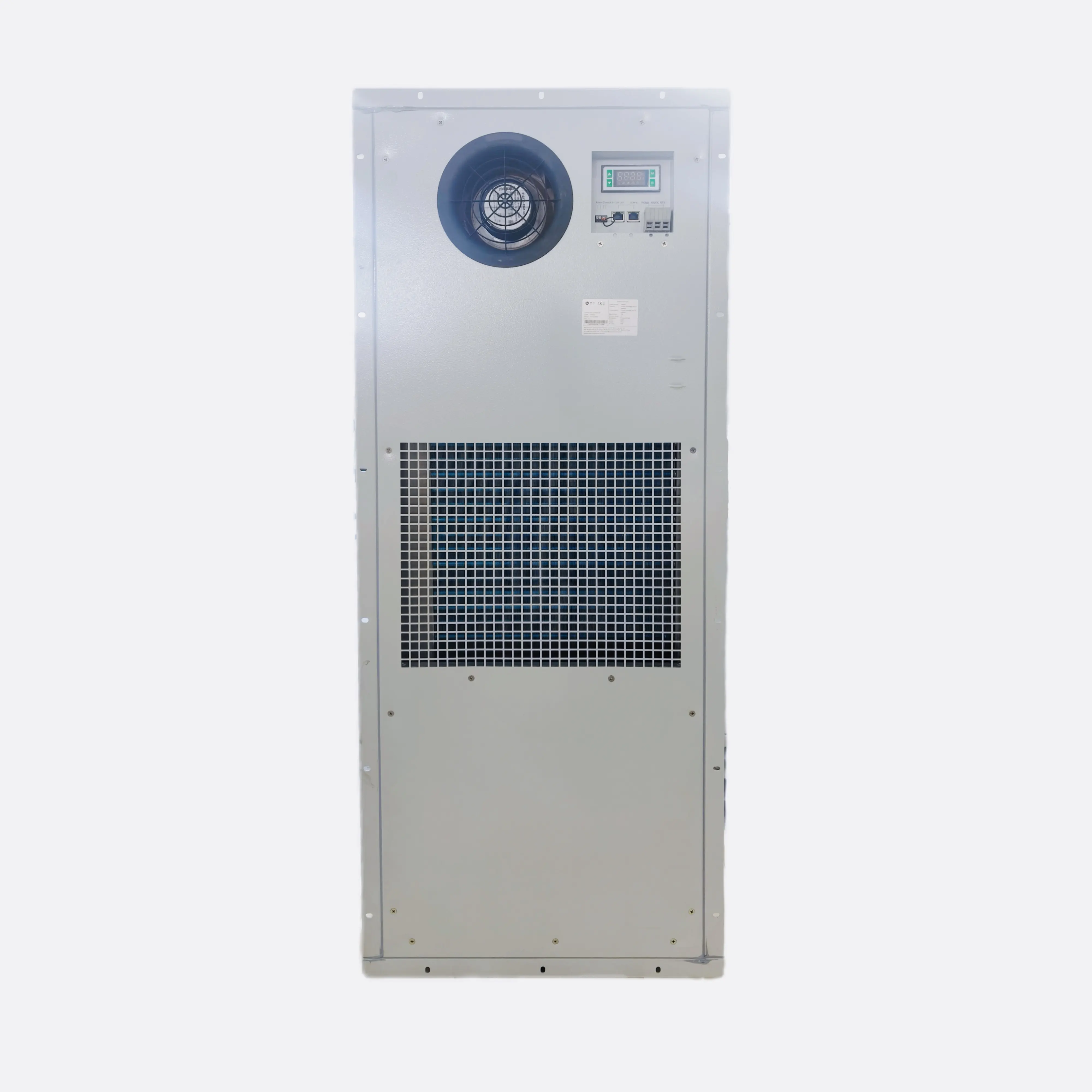

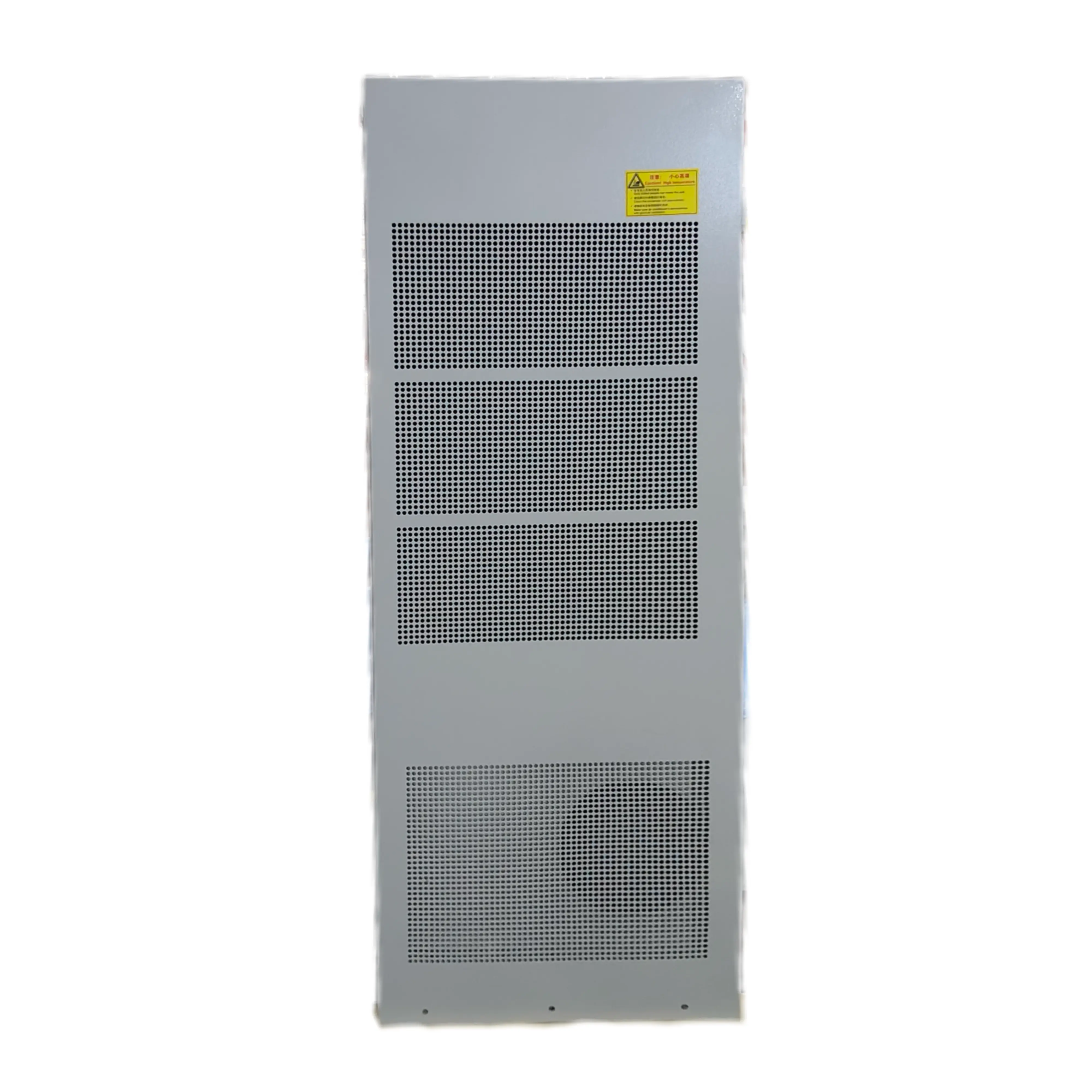

1、Aluminum Coating Design: Our Outdoor Cabinet DC Air Conditioner is designed with advanced aluminum coating technology, which not only enhances the product's aesthetics but more importantly, provides excellent corrosion protection. The aluminum coating effectively resists harsh environmental factors such as salt fog, acid rain, and ultraviolet radiation, extending the product's service life.
2、High Corrosion Resistance: The aluminum coating surface treatment provides an additional protective layer, ensuring stable performance in high-humidity and chemically corrosive environments. This feature is particularly suitable for coastal areas and regions with severe industrial pollution.
3、All DC Driven Components: All components, including fans and compressors, are driven by direct current, ensuring precise temperature control and energy efficiency.
4、Precise Temperature Control: Achieve precise temperature control through inverter digital regulation of the compressor and fans.
5、 Wide Voltage Range: Suitable for a power supply voltage range of DC44~59V, adapting to different power environments.
6、High Energy Efficiency Ratio: Designed with energy efficiency in mind, EER≥3.5, SEER≥5.5, saving up to 50% energy compared to AC version products.
7、IP55 Environmental Protection: Compliant with IP55 protection grade, suitable for T3 high-temperature working conditions, using R134a environmentally friendly refrigerant.
8、International Brand Components: Employing strict process control and international brand components to ensure high quality and reliability of the product.
9、Multiple Self-Protection Designs: Including LED display, all settings can be changed on-site; dry contact alarm output, NO/NC optional; equipped with communication interface: RS485.
Product parameter
| Name | Outdoor Cabinet Air Conditioner |
| Model | TA 020/S/D |
| Mounting Method | Semi-embedded Mounting |
| Power Supply | -48VDC |
| Capacity | Cooling：2000W@L35/L35 |
| Heating：/ | |
| Consumption | Cooling：530W@L35/L55 |
| Heating：/ | |
| Max Current | 15A |
| Ambient Range | T3 |
| Max Noise Level | 60dB(A) |
| IP Grade | IP55 |
| Net Weight | 30Kg |
| Refrigerant | R134a/（A310g） |
| Dimensions | 1116x416x170(mm, HxWxD) |
Company Advantages
· Unlike traditional products, the defects of Quick Thermal enclosure air conditioners manufacturers are eliminated during production.
· Its quality and performance is widely recognized in various exhibitions.
· The increasing demand of customers to enclosure air conditioners manufacturers also helps Quick Thermal to be more competitive in this industry.
Company Features
· Quick Thermal is currently one of the very best in the enclosure air conditioners manufacturers industry.
· We have a well-educated R&D team. 80% of them have more than 10 years of experience in the enclosure air conditioners manufacturers field. Their creativity, quick response to new ideas and trends, as well as profound knowledge directly contribute to making us stand out in the market.
· Quick Thermal will stick to the firm belief of being an international enclosure air conditioners manufacturers exporter. Inquire!
Application of the Product
enclosure air conditioners manufacturers of Quick Thermal is widely used and has a wide range of applications.
Quick Thermal has established a professional technical team. They can provide customers with targeted processes and solutions. Based on this, the problems of customers can be better solved.
