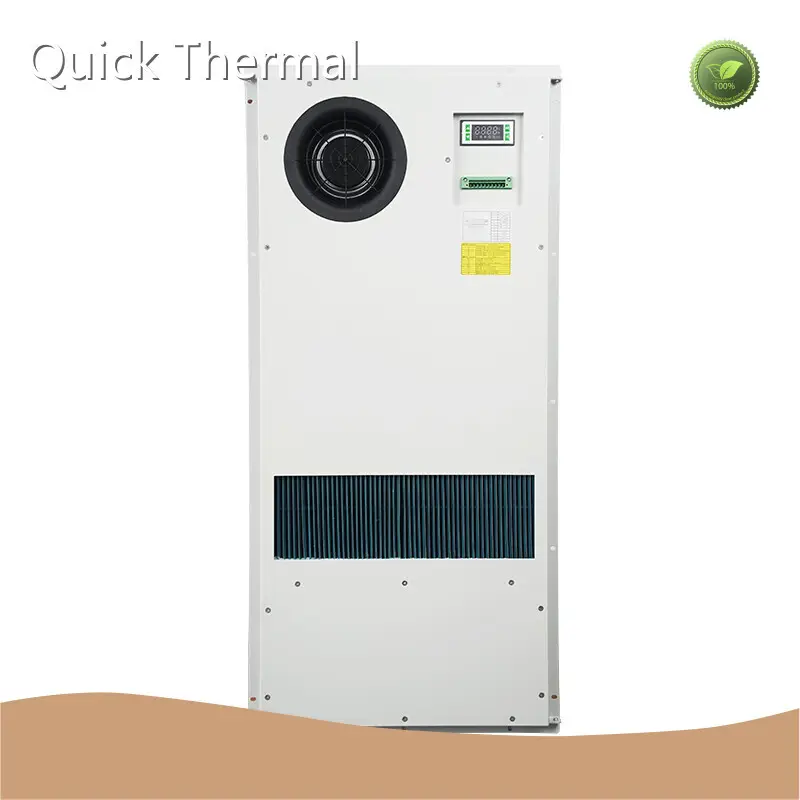

Enclosure Air Conditioner by Quick Thermal
Product details of the enclosure air conditioner
Product Introduction
Quick Thermal enclosure air conditioner is produced with unique designs by our experienced experts. Apart from the quality meeting the industry standard, the product also has a longer service life compared with others. Bearing the spirit of craftsmanship in mind, Quick Thermal only offers the most delicate enclosure air conditioner for you.
Product Design Feature
Another significant advantage of the 12320 TE 004 E D model is its dry contact alarm output function, which offers normally open and normally closed options, providing flexibility for users to choose the configuration that best suits their specific monitoring and safety needs. Additionally, this heat exchanger is equipped with an RS485 interface, fully compliant with the MODBUS protocol, making it easy to integrate with existing intelligent control systems or automation systems for convenient remote monitoring and management.
High-Efficiency Cooling: With a cooling capacity of 40 watts per kilowatt, it ensures efficient heat dissipation under high thermal load conditions.
Environmental Adaptability: The IP55 protection rating allows the device to adapt to outdoor environments with dust and humidity.
Eco-Friendly Design: Both material selection and energy efficiency meet environmental requirements, reducing the impact on the environment.
Stepless Speed Regulation Technology: The stepless speed regulation function of the circulating fan adjusts the air volume according to real-time thermal load, improving energy efficiency.
Flexible Alarm System: The dry contact alarm output offers a choice between normally open and normally closed configurations to meet diverse monitoring needs.
Easy Integration: Support for RS485 and the MODBUS protocol simplifies the integration process with intelligent control systems.
The 12320 TE 004 E D model heat exchanger, with its high efficiency, eco-friendly design, strong adaptability, and integration capabilities, is an ideal cooling solution for outdoor communication cabinets. Whether in the hot summer or the cold winter, it ensures the stable operation of the equipment inside the cabinet, extends the service life of the equipment, reduces energy consumption, and aligns with the requirements for sustainable development.
Product parameter
| Name | DC Cabinet Heat-Exchanger |
| P/N | 12320 |
| Model | TE 004 /E/D |
| Mounting method | Door mounting |
| Power supply DC | -48VDC +/-20% |
| Rated current DC | 1.67A |
| Start-up current DC | 2.4 A |
| Cooling capacity | 40 W/K |
| Fan | MGT1748YB |
| Fan consumption | 80W |
| Internal airflow | 350 m³/h |
| Heater rated voltage AC | 220V |
| Heater frequency AC | 50Hz |
| Heater rated current AC | 2.27A |
| Heater power | Option(500W) |
| Working temperature range | - 10°C~+65°C |
| Noise level | 64dB(A) |
| IP grade | IP55 |
| Net weight | 20Kg |
| Dimensions | 622x344x200 (mm, HxWxD) |
| CE& RoHS compliant | Yes |
| Surface treatment | Outer door type powder coating |
| Standard color:RAL7035 |
Company Feature
• The superior location and traffic convenience lay a good foundation for Quick Thermal's development.
• Quick Thermal's products are not only sold well in many cities in China but also exported to Southeast Asia, Africa, and other foreign countries.
• Quick Thermal has an active, diligent and responsible marketing team dedicated to promoting market expansion and corporate development.
• Quick Thermal, established in has been engaged in the development, production, and sales of Air Condionner,Heat Exchanger,Air Conditonner and Heat Exchangers solutions for industries like telecom,electric power,elevators for years.
If you have any questions, feel free to contact Quick Thermal.
