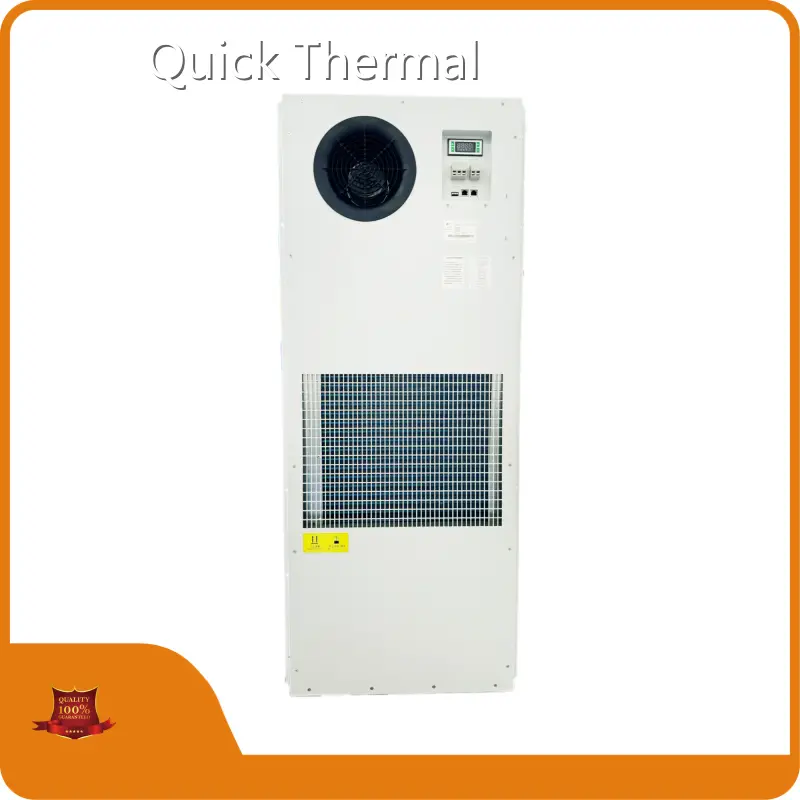

Electrical Cabinet Ac Units by Quick Thermal
Company Advantages
· The production of Quick Thermal electrical cabinet ac units follows the the principle of green environmental protection.
· electrical cabinet ac units from Suzhou Quick Thermal Control Technology Co.,LTD has strong competitiveness and high economic efficiency.
· The offered product is widely demanded in the market for its foreseeable application prospects.
Product Design Feature
1、 Double power supply, reliability greatly improved, especially suitable for telecom outdoor cabinet;
2、 Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
3、 Strict process control and international brand parts deployed to ensure high quality and reliable of this product;
4、 Unique energy-saving & control technology;
5、 DC Fan speed PWM control, low acoustic noise during low speed running;
6、Fit for T3 high temperature working condition by using of R134a refrigerant gas;
7、Multiple self-protection design & visible monitoring interface, RS422 / RS485 communication port (MODBUS-RTU protocol);
8、LED Display, all the settings can be changed at the field;
9、 The heating function ;
10、 Dry contact alarm output,NO/NC optional;
11、 Equipped with communication interface: RS422 / RS485 optional.
Product parameter
| Name | Outdoor Cabinet Air Conditioner |
| Model | 8704B TA 030/E/A/H10 |
| Mounting Method | Semi-embedded Mounting |
| AC Power Supply | 220V±15% 50Hz |
| DC Power Supply | 48V±20% |
| Cooling Capacity | 3000W@L35/L35 |
| Cooling Consumption | AC 1020W @L35/L35 |
| DC 200W @L35/L35 | |
| Cooling Capacity | 2330W@L35/L55 |
| Power Consumption | AC 1320W @L35/L55 |
| DC 200W @L35/L55 | |
| Internal Airflow | 850 m³/h |
| Working Temperature Range | -40℃~+55℃ |
| Max Noise Level | 65dB(A) |
| IP Grade | IP55 |
| Net Weight | 27Kg |
| Refrigerant | R134a |
| Dimensions | 1304x504x250(mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating, standard color: RAL7035 |
| Heater(Option) | 1000W |
| Heating power consumption | 1100W |
Company Features
· Suzhou Quick Thermal Control Technology Co.,LTD is renowned as a powerful manufacturer with strong capabilities of manufacturing electrical cabinet ac units. We are listed in the famous company list.
· Our manufacturing plant runs smoothly under the help of some cutting edge production facilities. These facilities are robust enough to meet the needs of our customers in an acceptable manner.
· In order to provide better service for customers and create the most valuable services to customers, we always adhere to the goal of putting customer's needs in the first place. Inquire now!
Application of the Product
electrical cabinet ac units, one of Quick Thermal's main products, is deeply favored by customers. With wide application, it can be applied to different industries and fields.
Our solutions are specially set up to the customer's actual situation and needs to ensure that the solutions provided to the customer are effective.
Product Comparison
We insist on regulating the production process of the products in accordance with standards, so as to promote the electrical cabinet ac units has higher quality. Compared with peer products, the specific advantages are mainly reflected in the following aspects.
Enterprise Advantages
Our company has vigorously established several modest, steady and honest teams that are capable of controlling the market. It provides a solid foundation for our firm development.
Quick Thermal treats customers with sincerity and dedication and strives to provide them with excellent services.
Suzhou Quick Thermal Control Technology Co.,LTD takes 'enterprising, creative, solid and first-class' as our core value, and 'becoming an industry leader' as our vision.
Quick Thermal was founded in After years of rapid development, we greatly improve the comprehensive strength and we currently rank top in the industry.
Our products are sold to many provinces and cities, and exported to many countries and regions.
