Durable Ac Unit Components Supplier

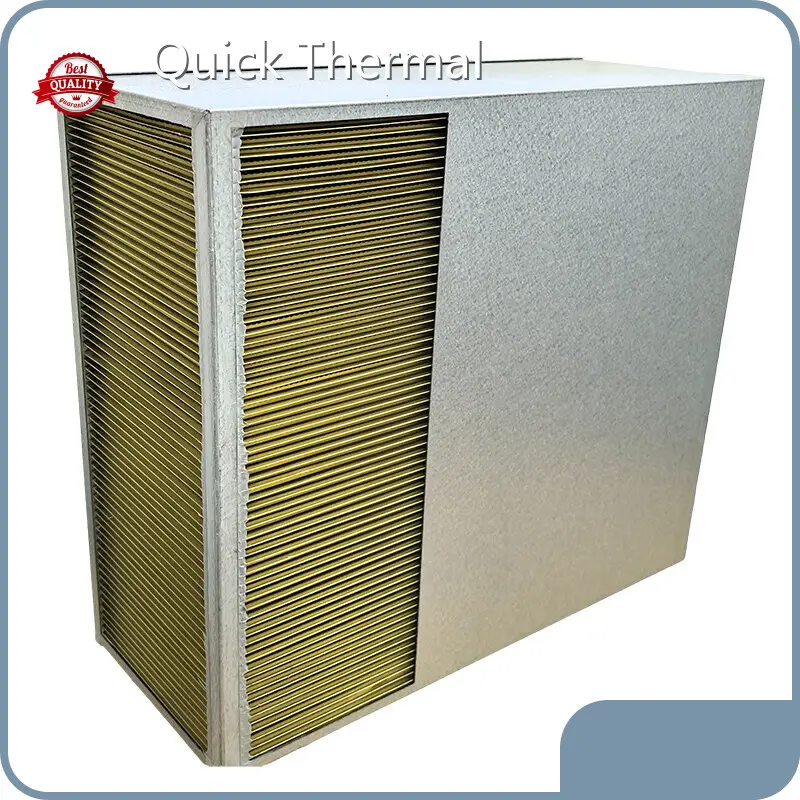

Product details of the ac unit components
Quick Detail
Quick Thermal ac unit components is rich in design styles. With years of manufacturing experience, we guarantee an unparalleled level of quality of the product. Quick Thermal's ac unit components is widely used in various scenes. The competitiveness of the product lies in its tremendous economic benefits.
Product Information
Quick Thermal's ac unit components has excellent performances, which are reflected in the following details.
Product Design Feature
Manufacturing Process:
The gluing process is strictly required to ensure a solid connection between the fins and the heat exchange core. The shell body's connecting lugs need to be precisely pressed to ensure structural stability. The fin angle at the air outlet is controlled within 15 degrees, with even spacing, no deformation or damage, and maintained cleanliness.
Quality Control:
The use of silicone is strictly controlled, not to exceed the outer surface of the shell, allowing a small amount of residual glue that does not affect assembly. The product has passed the IEC68-2-52 standard's severe level 2 alternating salt spray test, with no corrosion on the fins after 10 cycles, proving its excellent corrosion resistance.
Size Accuracy:
The hole position tolerance is ±0.2mm, the outer dimension tolerance is ±0.5mm, and other sizes follow the GB/T1804-m standard, ensuring the precision and consistency of the product.
Environmental Protection and Safety:
The heat exchange core has a protection level of IP55, adapting to harsh environments and preventing dust and water intrusion. It complies with the ROHS standard, restricting the use of harmful substances, protecting the environment and health.
Technical Innovation:
The sensible heat exchange core uses hydrophilic coated aluminum foil to quickly transfer heat and minimize environmental impact. The modular structure and design without moving parts make the heat exchanger compact, customizable, and low maintenance. The spiral wave heat transfer enhancement technology increases the heat transfer area and efficiency, ensuring strength and sealing under high pressure.
Wide Application:
Suitable for residential, commercial, and industrial applications, including HVAC and wind power industries, demonstrating technological innovation in energy conservation and air quality management.
Product parameter
| Model | Spec (L*W) (mm) | Plate Distance (mm) |
| 250/250 | 250 X 250 | 2.2 |
| 315/315 | 315 X 315 | 2.5 |
| 400/95 | 400 X 95 | 4 |
| 400/200 | 400 X 200 | 2.2 |
| 460/190 | 460 X 190 | 3 |
| 450/140 | 450 X 140 | 4 |
| 600/235 | 600 X 235 | 4.5 |
