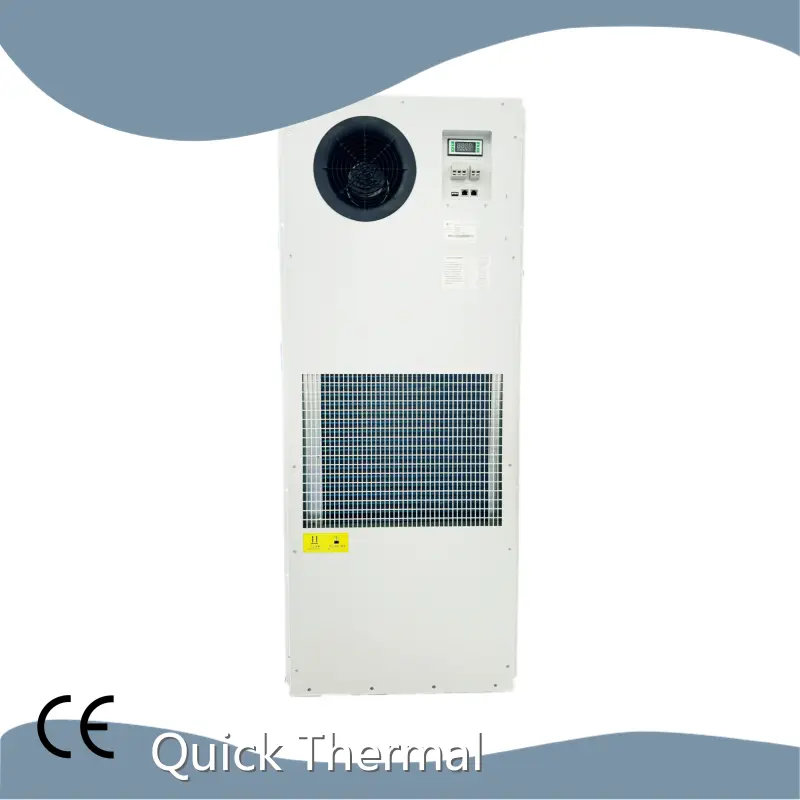

Cupboard Air Conditioner - - Quick Thermal
Product Design Feature
1、 Double power supply, reliability greatly improved, especially suitable for telecom outdoor cabinet;
2、 Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
3、 Strict process control and international brand parts deployed to ensure high quality and reliable of this product;
4、 Unique energy-saving & control technology;
5、 DC Fan speed PWM control, low acoustic noise during low speed running;
6、Fit for T3 high temperature working condition by using of R134a refrigerant gas;
7、Multiple self-protection design & visible monitoring interface, RS422 / RS485 communication port (MODBUS-RTU protocol);
8、LED Display, all the settings can be changed at the field;
9、 The heating function ;
10、 Dry contact alarm output,NO/NC optional;
11、 Equipped with communication interface: RS422 / RS485 optional.
Product parameter
| Name | Outdoor Cabinet Air Conditioner |
| Model | 8704B TA 030/E/A/H10 |
| Mounting Method | Semi-embedded Mounting |
| AC Power Supply | 220V±15% 50Hz |
| DC Power Supply | 48V±20% |
| Cooling Capacity | 3000W@L35/L35 |
| Cooling Consumption | AC 1020W @L35/L35 |
| DC 200W @L35/L35 | |
| Cooling Capacity | 2330W@L35/L55 |
| Power Consumption | AC 1320W @L35/L55 |
| DC 200W @L35/L55 | |
| Internal Airflow | 850 m³/h |
| Working Temperature Range | -40℃~+55℃ |
| Max Noise Level | 65dB(A) |
| IP Grade | IP55 |
| Net Weight | 27Kg |
| Refrigerant | R134a |
| Dimensions | 1304x504x250(mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating, standard color: RAL7035 |
| Heater(Option) | 1000W |
| Heating power consumption | 1100W |
Company Advantages
· Good material of cupboard air conditioner makes good sale in Suzhou Quick Thermal Control Technology Co.,LTD.
· The performance and quality of the product have been widely recognized among users.
· The higher sales of cupboard air conditioner also indicates the importance of considerate service.
Company Features
· Equipped with modern production lines, Suzhou Quick Thermal Control Technology Co.,LTD is mainly engaged in the production of cupboard air conditioner.
· People are our most valuable asset. Their ability to effectively collaborate daily on all aspects of design, development, source, manufacture, and distribution helps the company ensure quality products with timely deliveries.
· Our commitment to quality and our dedication to customer needs are what have helped build our company, and they are what drive us forward today and for generations to come.
Application of the Product
Quick Thermal's cupboard air conditioner can play an important role in various fields.
Quick Thermal provides comprehensive and reasonable solutions based on customer's specific situations and needs.
