Air Cooled Industrial Chiller - - Quick Thermal
Product Design Feature
Rapid Plug-in Installation: The innovative plug-in design simplifies the installation steps, shortens deployment time, and is suitable for fast-paced deployment needs.
Efficient Variable Frequency Technology: The variable frequency compressor optimizes energy use, effectively reducing the cost of long-term operation.
Intelligent Remote Monitoring: The RS-485 communication function supports real-time remote monitoring, enhancing the management efficiency and response speed of the equipment.
Environmentally Friendly Refrigerant Application: The use of R134a refrigerant not only improves energy efficiency but also reduces environmental impact, in line with the development trend of green and energy-saving.
Compact and Lightweight Design: Adapts to spaces with limited space, facilitating handling and installation, reducing spatial occupancy.

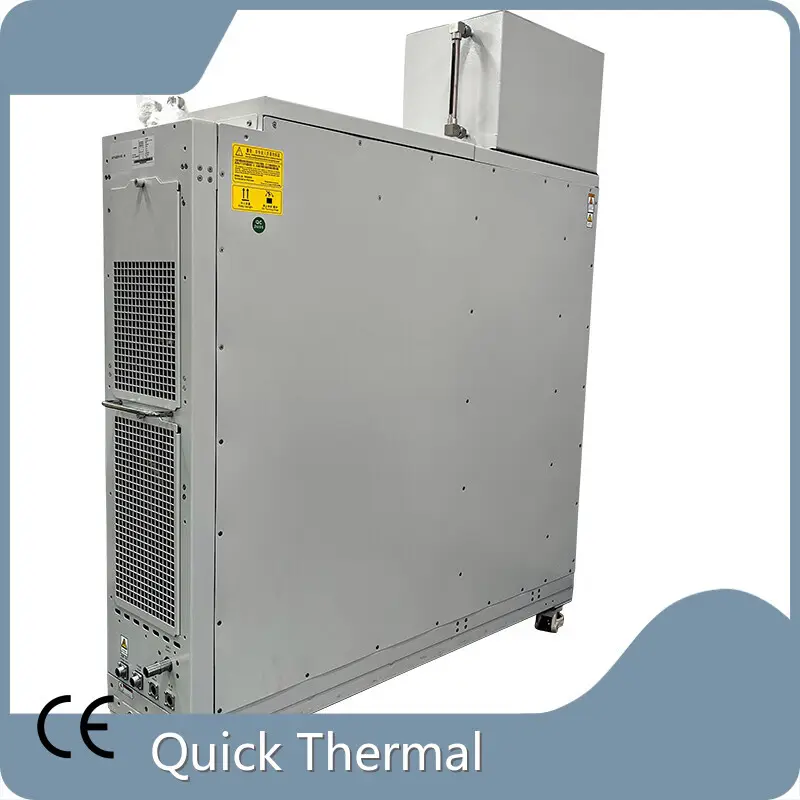

In summary, the TWA 100PVA air-cooled chiller, with its high efficiency, intelligent monitoring, environmentally friendly design, and compact and lightweight features, has become an ideal choice for occasions with limited space and high requirements for cooling performance
The variable frequency technology and integrated design of the TWA 100PVA not only greatly enhance energy efficiency and reduce energy consumption but also simplify the installation process. This design philosophy makes on-site deployment fast and easy, reducing installation time and costs. The RS-485 communication function and real-time remote monitoring system provide users with a more accurate and convenient control method, enhancing the level of intelligent equipment management.
Using R134a as the refrigerant, the TWA 100PVA ensures efficient cooling performance while also demonstrating its commitment to environmental protection. This refrigerant has excellent thermodynamic properties and complies with international environmental standards, reducing the impact on the environment. The carefully designed size and weight make this chiller particularly suitable for installation environments with limited space, such as small data centers, laboratories, or medical facilities.
Product parameter
| Name | Air Cooled Chiller |
| Code | 186005 |
| Model | TWA 100/P/VA |
| Mounting Method | Plug-in type |
| Power Supply AC | ~230V±10%50/60±3Hz |
| working current | 25A |
| refrigerating capacity | 10.0KW |
| refrigerating capacity | 8.0KW |
| heating capacity | 2.0KW |
| hot water temperaturel | 18 ℃ |
| Liquid temperature range | 10～ 35℃ |
| Rated circulating water flow | 50L/min(Option：80L/min) |
| Rated external cycle head | 90Kpa |
| Working Temperature Range | 30℃~+55℃ |
| Refrigerant | R134a |
| Refrigerating medium | Pure water, 50% glycol aqueous solution |
| Refrigeration input power | 4.3KW |
| Refrigeration input power | 4.7KW |
| Noise Leve | Appr.75dB(A)0 L45/W18 |
| IPGrade | IPX5 |
| Net Weight | Appr.150kg |
| Dimensions | 275×1185.4×1074(mm) |
| CE&RoHS Compliant | YES |
| Surface Treatment | RAL7035 |
Company Advantages
· air cooled industrial chiller we produced is characterized by its its high quality and durability.
· air cooled industrial chiller is located in the high-end market.
· The quality of air cooled industrial chiller has reached international standards.
Company Features
· Suzhou Quick Thermal Control Technology Co.,LTD has evolved over the years, releasing hundreds of high-quality products including air cooled industrial chiller. Today we can say that we specialize in production.
· Our air cooled industrial chiller business has been expanded to many countries around the world, and the main markets include America, Russia, Japan, and some Asia countries.
· Quick Thermal aims to satisfy every customer with first-class quality and service. Inquire now!
Application of the Product
The air cooled industrial chiller produced by Quick Thermal is widely used.
Our company will modify and adjust the original solution according to the customer's needs. By doing so, we can provide solutions that best meet the customer's needs.
