Air Cooled Chiller Unit Factory Direct Supply
Product details of the air cooled chiller unit
Quick Detail
Our beautifully-manufactured Quick Thermal air cooled chiller unit is available in various design styles. The product we offered has reliable performance and durability. The product has received much attention since its launch and is considered to be more successful in the future market.
Product Introduction
Compared with similar products on the market, the air cooled chiller unit of Quick Thermal has the following advantages.
Product Design Feature

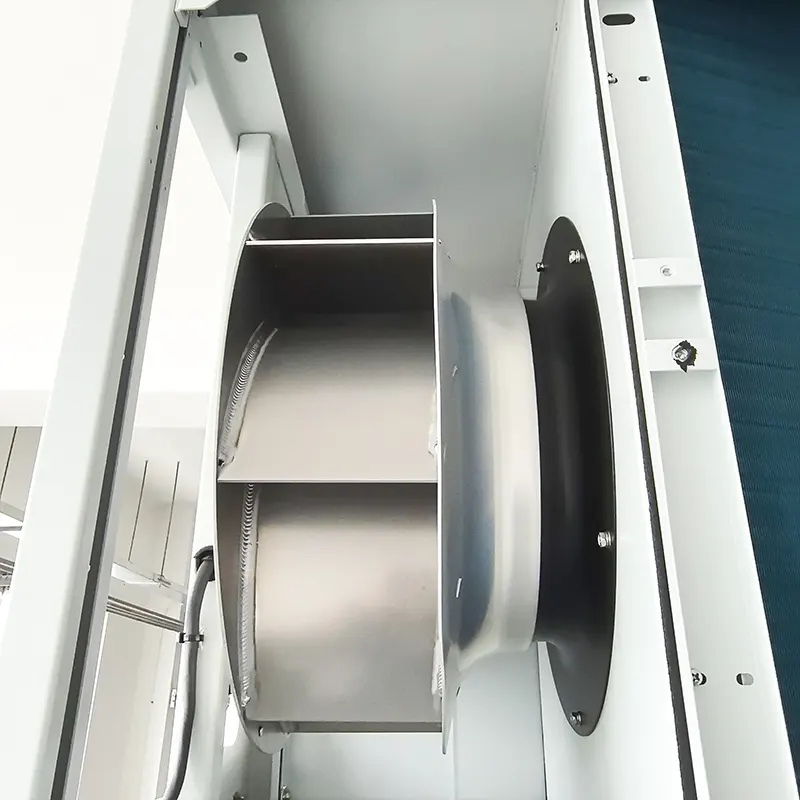

This chiller is powered by advanced frequency conversion technology, including a variable frequency compressor and a speed-regulating fan, for precise control over cooling performance and superior heat dissipation efficiency. The unit's integrated design simplifies the installation process, enabling swift deployment in various settings. The RS-485 communication feature allows for real-time remote monitoring, elevating the sophistication of equipment management.
With a focus on environmental sustainability, the TWA 80PVA uses R134a as its refrigerant, known for its excellent thermodynamic properties and compliance with international standards such as CE and RoHS, demonstrating a dedication to ecological responsibility.
Robust Cooling Capacity: Designed to manage intense heat loads, the TWA 80PVA ensures stable cooling for critical facilities, maintaining ideal operating temperatures for sensitive equipment.
Advanced Self-Diagnosis: Equipped with an intuitive self-diagnosis system for rapid detection and notification of potential issues, this feature streamlines maintenance and cuts associated expenses.
Seamless Integration: The integrated design reduces installation intricacies, allowing for a quick and hassle-free integration into current systems, enhancing setup efficiency.
Sustainability and Efficiency: The adoption of R134a refrigerant not only boosts energy efficiency but also contributes to a smaller ecological footprint, resonating with the global shift towards green energy solutions.
In essence, the TWA 80PVA air-cooled chiller is an exemplary choice for vital heat dissipation needs in data centers and communication base stations, blending high-performance cooling with intelligent monitoring, user-friendly installation, and a commitment to environmental sustainability.
Product parameter
| Name | Air Cooled Chiller |
| Code | 186007 |
| Model | TWA 80/P/VA |
| Mounting Method | Plug-in type |
| Power Supply AC | ~230V±10%50/60±3Hz |
| Working current | 25A |
| Refrigerating capacity | 8.0KW |
| Refrigerating capacity | 6.0KW |
| Heating capacity | 2.0KW |
| Hot water temperaturel | 18℃ |
| Liquid temperature range | 10～ 35 ℃ |
| Rated circulating water flow | 50L/min |
| Rated external cycle head | 90Kpa |
| Working Temperature Range | 30℃~+55℃ |
| Refrigerant | R134a |
| Refrigerating medium | Pure water, 50% glycol water solution. |
| Refrigeration input power | 4.3KW |
| Refrigeration input power | 4.7KW |
| Noise Level | Appr.75dB(A)@L45/W18 |
| IP Grade | IPX5 |
| Net Weight | Appr.150kg |
| Dimensions | 275×1048.2×1040(mm) |
| CE&RoHS Compliant | YES |
| Surface Treatment | RAL7035 |
