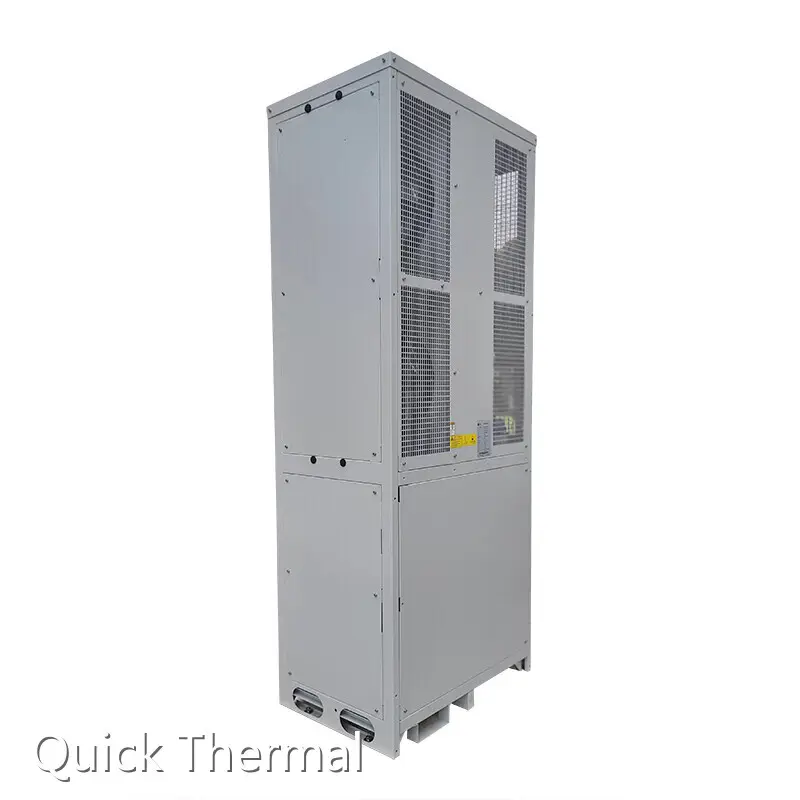

Air Cooled Chiller Unit by Quick Thermal
Product details of the air cooled chiller unit
Quick Detail
Quick Thermal air cooled chiller unit has been greatly paid attention from the beginning of the development stage. It is well-developed by the professional R&D team with deep consideration. Its production adheres to the principle of Quality First. QC is strictly incorporated into every procedure of the production of this product.
Product Information
Compared with the products in the market, the air cooled chiller unit produced by our company has the following advantages.
Product Design Feature
At the heart of its advantages lies the application of frequency conversion technology, which, through the use of a variable frequency compressor and a speed-regulating fan, achieves precise control, optimizes energy efficiency, and reduces energy consumption. This technology not only enhances performance but also aligns with current trends of energy saving and emission reduction. The TWA 400L VA's RS-485 communication capability, supporting the MODBUS RTU protocol, allows the device to be easily integrated into intelligent control systems for real-time remote monitoring and management, greatly improving the convenience and flexibility of operations.
The environmental characteristics of this model are also noteworthy; it uses the R410A refrigerant, complying with international CE and RoHS standards, thereby minimizing environmental impact. The compact design and lightweight of the TWA 400L VA make it more flexible in installation and deployment, suitable for a variety of spatial requirements.
Moreover, the TWA 400L VA is highly reliable, capable of meeting the continuous operation demands of 7 days a week, 24 hours a day, making it particularly suitable for applications with strict operating time requirements. Its high cooling capacity, reaching 40KW, is more than sufficient to handle large-scale heat dissipation challenges.
In summary, the TWA 400L VA air-cooled chiller, with its efficient energy-saving, intelligent monitoring, environmentally friendly design, and high reliability, stands out as an ideal choice for large-scale cooling applications.
Product parameter
| Name | Air Cooled Chiller |
| Model | TWA 400/L/V/A |
| Power Supply | 380V 50Hz Three-phase four line |
| Cooling Capacity | 40KW @W18/L45 |
| Cooling Power Consumption | 20.5KW@W18/L45 |
| Max Power Consumption | 22.8KW |
| Max Work Current | 45A |
| Supply water temperature | 18℃ |
| Rated water flow | 21m³/h,External Lift：20M |
| Heater | 12KW |
| Heating Power Consumption | 15KW |
| Working Temperature Range | 30℃~+50℃ |
| Max Noise Level | ≤80dB(A) |
| IP Grade | IPX5 |
| Net Weight | 480kg |
| Refrigerant | R410A |
| Dimensions | 2400x980x630(mm,HxWxD) |
| CE&RoHS Compliant | Y E S |
| Surface Treatment | Outerdoor type powder coating,standardcolor:RAL7035 |
| Communication Function | RS 485 MODBUS RTU/CAN |
| Altitude | 0-4000m(Derating by 3%/1000m) |
| Refrigerating medium | 50% Glycol water solution |
Company Introduction
Relying on the advantages of developing and manufacturing air cooled chiller unit, Suzhou Quick Thermal Control Technology Co.,LTD has gained industry recognition in China market. Quick Thermal provides new, competitive air cooled chiller unit to meet customer needs. Our current goal is to expand the overseas market and to be a leader as soon as possible. Under this aim, we will strengthen our R&D ability, and grasp the market trends to make ourselves stand in an advantageous position.
Our products are of guaranteed quality and tight package. Welcome customers with needs to contact us!
