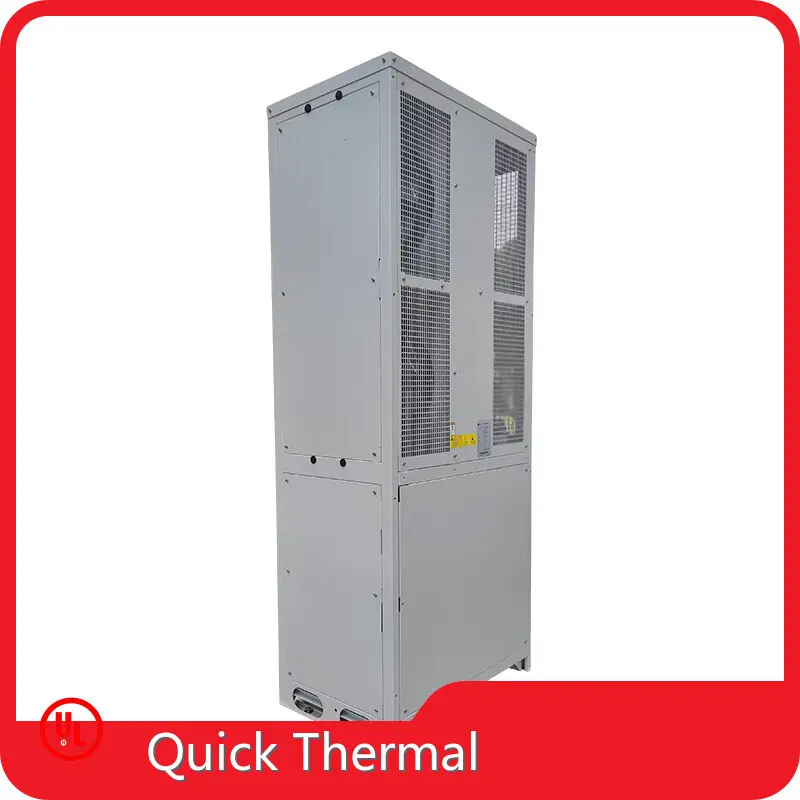

Air Cooled Chiller by Quick Thermal-1
Product details of the air cooled chiller
Product Description
Quick Thermal air cooled chiller is built under the combination of the latest technologies. Our high quality air cooled chiller product can greatly reduce the repair rate and make your business keep running smoothly. Test machine is also necessary in Suzhou Quick Thermal Control Technology Co.,LTD to guarantee the quality of air cooled chiller before package.
Product Design Feature
At the heart of its advantages lies the application of frequency conversion technology, which, through the use of a variable frequency compressor and a speed-regulating fan, achieves precise control, optimizes energy efficiency, and reduces energy consumption. This technology not only enhances performance but also aligns with current trends of energy saving and emission reduction. The TWA 400L VA's RS-485 communication capability, supporting the MODBUS RTU protocol, allows the device to be easily integrated into intelligent control systems for real-time remote monitoring and management, greatly improving the convenience and flexibility of operations.
The environmental characteristics of this model are also noteworthy; it uses the R410A refrigerant, complying with international CE and RoHS standards, thereby minimizing environmental impact. The compact design and lightweight of the TWA 400L VA make it more flexible in installation and deployment, suitable for a variety of spatial requirements.
Moreover, the TWA 400L VA is highly reliable, capable of meeting the continuous operation demands of 7 days a week, 24 hours a day, making it particularly suitable for applications with strict operating time requirements. Its high cooling capacity, reaching 40KW, is more than sufficient to handle large-scale heat dissipation challenges.
In summary, the TWA 400L VA air-cooled chiller, with its efficient energy-saving, intelligent monitoring, environmentally friendly design, and high reliability, stands out as an ideal choice for large-scale cooling applications.
Product parameter
| Name | Air Cooled Chiller |
| Model | TWA 400/L/V/A |
| Power Supply | 380V 50Hz Three-phase four line |
| Cooling Capacity | 40KW @W18/L45 |
| Cooling Power Consumption | 20.5KW@W18/L45 |
| Max Power Consumption | 22.8KW |
| Max Work Current | 45A |
| Supply water temperature | 18℃ |
| Rated water flow | 21m³/h,External Lift：20M |
| Heater | 12KW |
| Heating Power Consumption | 15KW |
| Working Temperature Range | 30℃~+50℃ |
| Max Noise Level | ≤80dB(A) |
| IP Grade | IPX5 |
| Net Weight | 480kg |
| Refrigerant | R410A |
| Dimensions | 2400x980x630(mm,HxWxD) |
| CE&RoHS Compliant | Y E S |
| Surface Treatment | Outerdoor type powder coating,standardcolor:RAL7035 |
| Communication Function | RS 485 MODBUS RTU/CAN |
| Altitude | 0-4000m(Derating by 3%/1000m) |
| Refrigerating medium | 50% Glycol water solution |
Company Advantage
• Quick Thermal strictly follows the actual needs of customers and provides them with professional and quality services.
• In recent years, Quick Thermal runs a relatively complete sales system and actively explores new sales markets, which leads to the annual increment of domestic market share.
• Superior geographical location, traffic convenience, and developed communication create a good external environment for Quick Thermal's development.
Our products are of high quality and great safety. Besides, they are packed tightly and shockproof. Customers can rest assured to purchase our products and are warmly welcomed to contact us for details.
