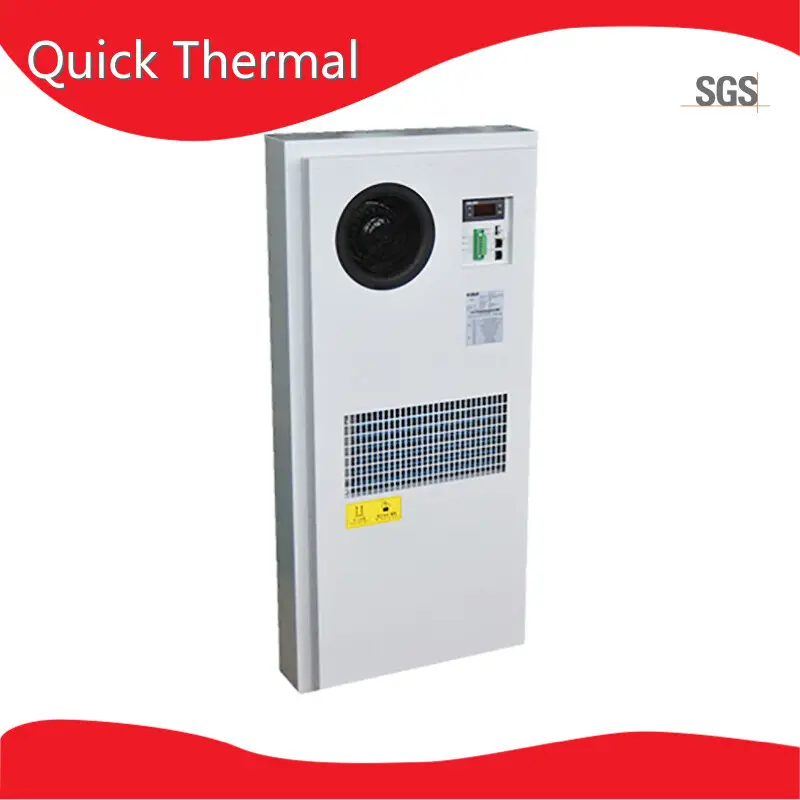

Reliable Outdoor Enclosure Air Conditioner
Product details of the outdoor enclosure air conditioner
Product Information
outdoor enclosure air conditioner from Suzhou Quick Thermal Control Technology Co.,LTD brings the special design to the extreme. The highest possible quality and consistency of this product are guaranteed through the continuous monitoring of all processes, the strict quality management system, a final quality check, etc. This product has a wide market application in the industry by virtue of outstanding features.
Product Design Feature
The high reliability of this model is reflected in its ability to meet the needs of continuous operation 24/7, making it particularly suitable for critical application scenarios with special requirements for sustained cooling performance. Its outstanding cooling capacity of up to 400W is fully capable of handling large-scale cooling demands, whether in server farms with intensive data processing or in high-temperature equipment environments of communication base stations, providing stable and efficient cooling.
The 110070 TE026 E D model also features multiple self-protection designs, combined with interchangeable monitoring software interfaces, which not only enhance the stability and safety of the equipment but also provide maintenance personnel with flexible management options. These features collectively ensure that the heat exchanger remains stable even under the most demanding working conditions.
Specifically designed for outdoor communication cabinets, the 110070 TE026 E D model boasts a cooling capacity of 260 watts per kilowatt, making it an ideal choice for outdoor high-temperature environments. The DC drive and IP55 protection rating make it dustproof and waterproof, capable of withstanding harsh outdoor conditions. The addition of remote control functionality allows management personnel to conveniently monitor and manage the heat exchanger from a distance, further improving the convenience and flexibility of the equipment's use.
In summary, the 110070 TE026 E D model DC cabinet heat exchanger, with its high performance, high reliability, and strong outdoor adaptability, has become an ideal solution for the critical cooling needs of large data centers and communication base stations. Its advanced technical features and user-friendly design provide users with an efficient, stable, and easy-to-manage cooling option.
Product parameter
| Name | DC Cabinet Heat-Exchanger |
| Code | 110070 |
| Model | TE026/E/D |
| Mounting Method | Semi-embedded Mounting |
| Power Supply DC | -48V±20% |
| Rated current DC | 8.3A |
| Start-up current DC | 10.0A |
| Cooling Capacity | 260W/K |
| Fans Power Consumption | 400W |
| Fans | 4*225 fans |
| Internal Airflow | 1800m³/h |
| Working Temperature Range | -40℃~+65℃ |
| Max Noise Level | 69dB(A) |
| IPGrade | IP55 |
| Net Weight | 42kg |
| Dimensions | 1304x624x260 (mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | SGCC+Outdoor type powder coating |
| Standard color: RAL7035 | |
| Backup PCBA | YES |
