Quick Thermal Parts of Air Conditioning System Upplier
Product details of the parts of air conditioning system
Quick Overview
The production of Quick Thermal parts of air conditioning system is ensured by a complete and scientific modern production model, which is a highly efficient way to ensure the production of the product. Compared with similar products, this product has superior performance and long service life. Our sales representative will provide detailed information about our parts of air conditioning system.
Product Introduction
The parts of air conditioning system produced by Quick Thermal is better than the previous generation. The specific performance is as follows.
Product Design Feature

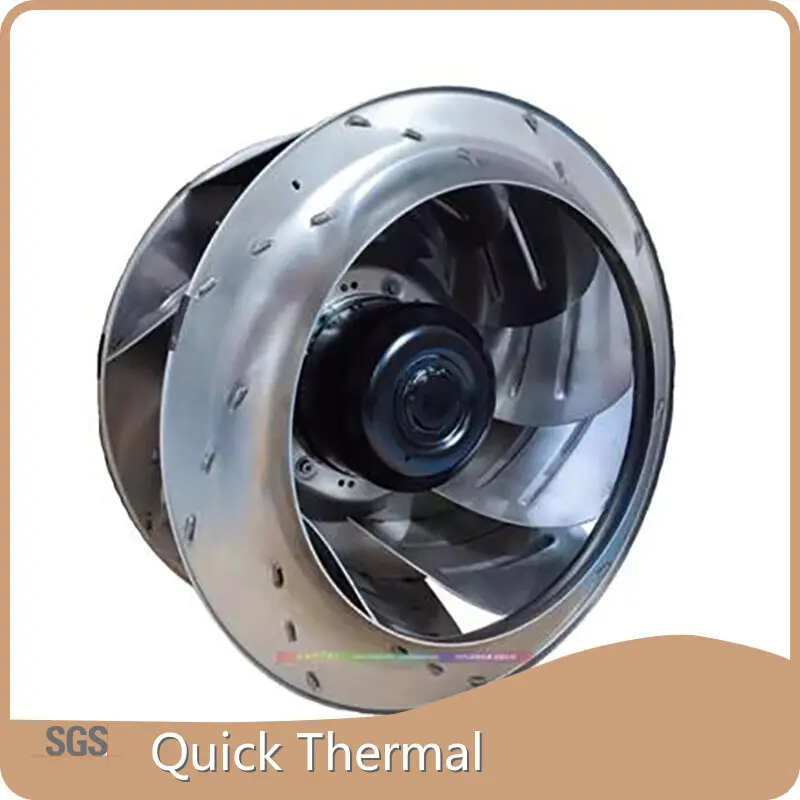

EC Centrifugal Fans: These are electronically controlled centrifugal fans, typically used for high-efficiency applications, with a variety of voltage specifications and impeller designs.
Fans with Different Impeller Diameters: Fans are further categorized based on the diameter of the impeller, such as 97mm-180mm, 133mm-424mm, etc.
Fans with Different Power and Performance: Fans are classified according to their power and performance parameters, such as airflow (Q), static pressure (Psf), input power, speed, etc., to meet different application requirements.
Fans with Different Certifications and Testing Equipment: Fans may also be categorized based on the certifications they have obtained and the testing equipment used, such as ISO9001:2015, IATF 16949, ISO14001:2015, ISO45001:2018, etc.
Fans with Different Interface Wires: Such as interface circuit (DC) for DC fans and interface circuit (EC) for EC fans, indicating that fans may also be classified based on their electrical interfaces and control methods.
Fans with Different Materials and Protection Ratings: Fans have different housing and impeller materials, such as galvanized steel sheet, PP+30% fiberglass, etc., and different protection ratings, such as IP44, IP54, etc.
When using these fans, it is important to protect the bearings from impact to prevent damage. During handling, avoid lifting by the lead wires to prevent the internal soldered parts from falling off due to excessive force on the wires. Attention to these details not only extends the service life of the fans but also reduces maintenance costs, offering users a more economical and reliable choice.
Product parameter
| Name | Outdoor Cabinet Air Conditioner |
| Model | TA010/E/D |
| Mounting Method | Semi-embedded Mounting |
| Power Supply | -48VDC |
| Cooling Capacity | 1000W@L35/L35 |
| Power Consumption | 280W@L35/L35 |
| Cooling Capacity | 570W@L35/L55 |
| Power Consumption | 400W@L35/L55 |
| Internal Airflow | 400 m³/h |
| Working Temperature Range | -40℃~+55℃ |
| Max Noise Level | 65dB(A) |
| IP Grade | IP55 |
| Net Weight | 27Kg |
| Refrigerant | R134a |
| Dimensions | 797x385x165(mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating, standard color: RAL7035 |
| Heater(Option) | DC300W |
Company Information
Suzhou Quick Thermal Control Technology Co.,LTD (referred to as Quick Thermal), is a company that mainly manages Air Condionner,Heat Exchanger,Air Conditonner and Heat Exchangers solutions for industries like telecom,electric power,elevators in the industry. Quick Thermal takes 'service, the basis, quality, the priority' as our business philosophy and 'unity, cooperation, innovation and progress' as the spirit. We constantly draw on international advanced management experience and insist on complementing with all parts of society. All these are for the building of an excellent corporate brand. Quick Thermal has a high-quality management team integrating technology development, product R&D, and market expansion, which provides solid backing for rapid corporate development. Quick Thermal has an excellent team consisting of R&D, production, operation and management. According to actual needs of different customers, we could provide customers with practical solutions.
Our products are of guaranteed quality and tight package. Welcome customers with needs to contact us!
