Quick Thermal Heat Exchanger Cabinet From China
Product Design Feature
Another significant advantage of the 12320 TE 004 E D model is its dry contact alarm output function, which offers normally open and normally closed options, providing flexibility for users to choose the configuration that best suits their specific monitoring and safety needs. Additionally, this heat exchanger is equipped with an RS485 interface, fully compliant with the MODBUS protocol, making it easy to integrate with existing intelligent control systems or automation systems for convenient remote monitoring and management.
High-Efficiency Cooling: With a cooling capacity of 40 watts per kilowatt, it ensures efficient heat dissipation under high thermal load conditions.
Environmental Adaptability: The IP55 protection rating allows the device to adapt to outdoor environments with dust and humidity.
Eco-Friendly Design: Both material selection and energy efficiency meet environmental requirements, reducing the impact on the environment.
Stepless Speed Regulation Technology: The stepless speed regulation function of the circulating fan adjusts the air volume according to real-time thermal load, improving energy efficiency.
Flexible Alarm System: The dry contact alarm output offers a choice between normally open and normally closed configurations to meet diverse monitoring needs.
Easy Integration: Support for RS485 and the MODBUS protocol simplifies the integration process with intelligent control systems.

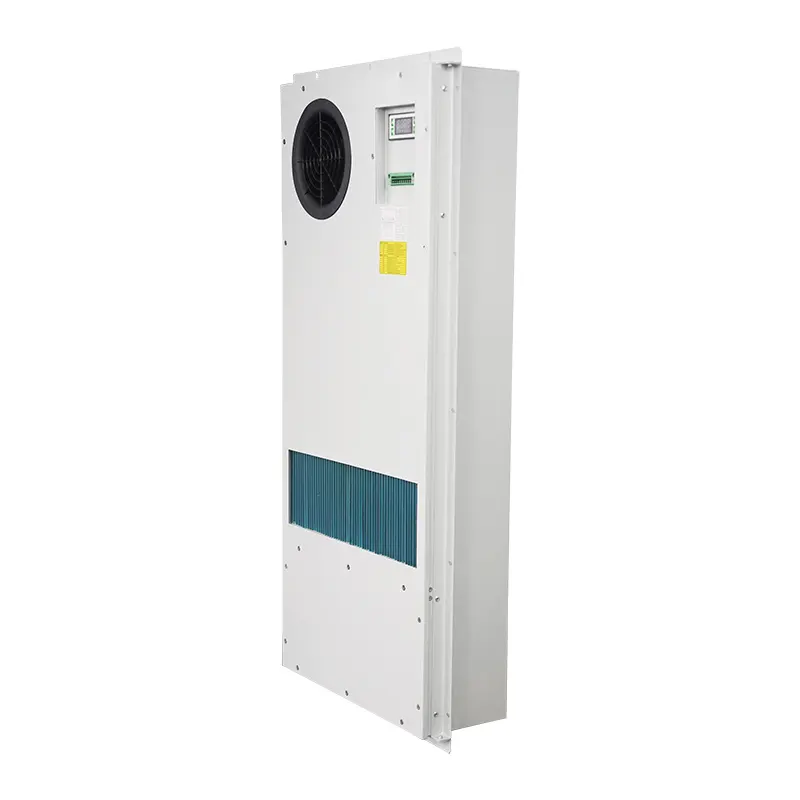

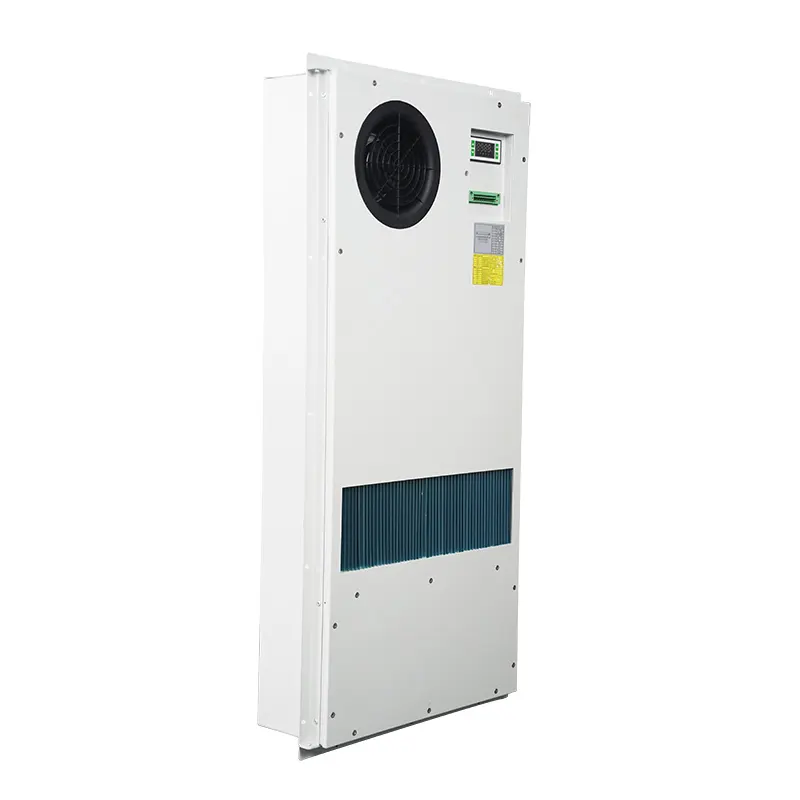

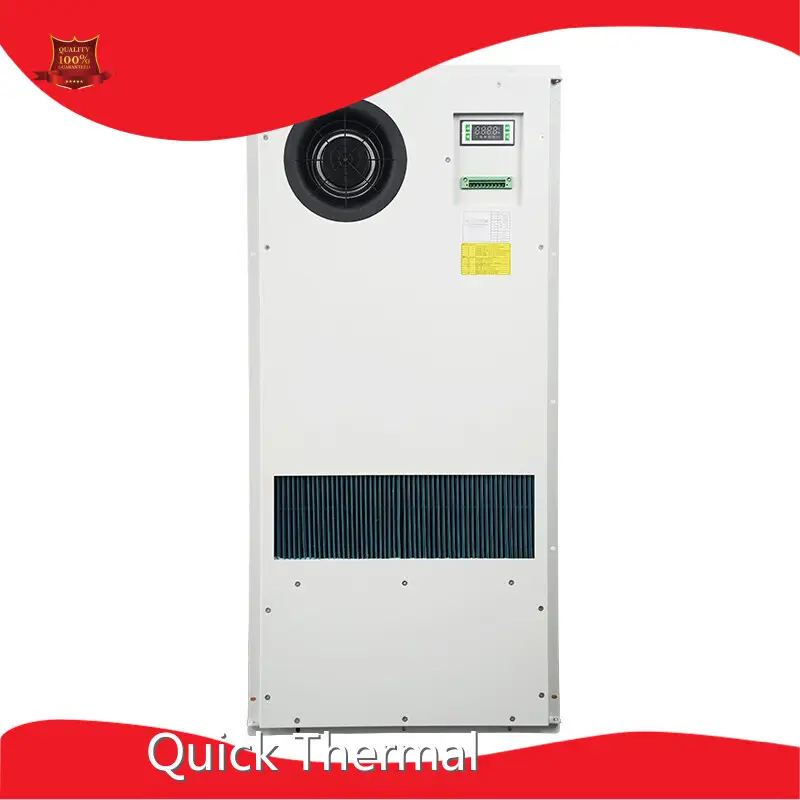

The 12320 TE 004 E D model heat exchanger, with its high efficiency, eco-friendly design, strong adaptability, and integration capabilities, is an ideal cooling solution for outdoor communication cabinets. Whether in the hot summer or the cold winter, it ensures the stable operation of the equipment inside the cabinet, extends the service life of the equipment, reduces energy consumption, and aligns with the requirements for sustainable development.
Product parameter
| Name | DC Cabinet Heat-Exchanger |
| P/N | 12320 |
| Model | TE 004 /E/D |
| Mounting method | Door mounting |
| Power supply DC | -48VDC +/-20% |
| Rated current DC | 1.67A |
| Start-up current DC | 2.4 A |
| Cooling capacity | 40 W/K |
| Fan | MGT1748YB |
| Fan consumption | 80W |
| Internal airflow | 350 m³/h |
| Heater rated voltage AC | 220V |
| Heater frequency AC | 50Hz |
| Heater rated current AC | 2.27A |
| Heater power | Option(500W) |
| Working temperature range | - 10°C~+65°C |
| Noise level | 64dB(A) |
| IP grade | IP55 |
| Net weight | 20Kg |
| Dimensions | 622x344x200 (mm, HxWxD) |
| CE& RoHS compliant | Yes |
| Surface treatment | Outer door type powder coating |
| Standard color:RAL7035 |
Company Advantages
· The production of Quick Thermal heat exchanger cabinet is combined with the latest technology.
· The product has been proven to be good in various quality parameters by our experienced quality control team.
· Suzhou Quick Thermal Control Technology Co.,LTD will have a stronger competitive advantage in the long term.
Company Features
· Standing above others, Quick Thermal is a leading brand in heat exchanger cabinet field.
· Supported by mature technology, Quick Thermal has enough capability to offer qualified heat exchanger cabinet for customers.
· Based on the production concept of heat exchanger cabinet, Quick Thermal does its best to supply the best product. Inquire online!
Application of the Product
Various in function and wide in application, the heat exchanger cabinet can be used in many industries and fields.
Quick Thermal always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
