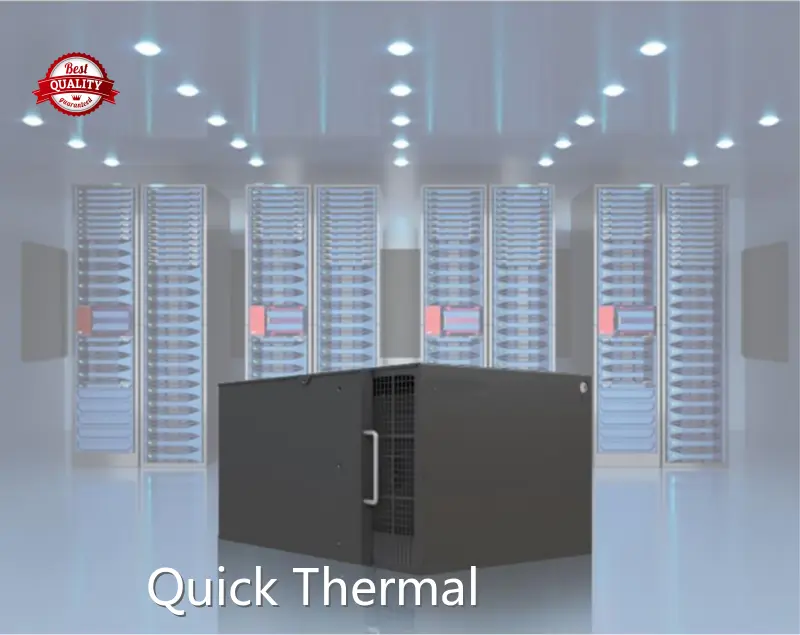

Product details of the rack air conditioner
Product Overview
rack air conditioner exhibits high hardness, good abrasion resistance, high strength and stability. The rack air conditioner we manufacture is of easy maintaince. At Quick, customer experience will always be the heart of our operations.
Product Description
The rack air conditioner of Quick Thermal has the following advantages, compared with similar products in the market.
Product Design Feature
Product parameter
Model/Spec | 3.5kw | 5.0kw | 7.5kw | 12.5kw |
Model | TAR 0004 | TAR 0005 | TAR 0008 | TAR 0013 |
Function | Cooling + heating/constant temperature and humidity | |||
760 Depth (W×D×H)(mm) | 443×715×218 | 443×715×218 | 443×715×351 | 443×715×440 |
Function | Cooling + heating | |||
400 Depth (W×D×H)(mm) | 444×395×352 | 444×395×352 | 444×395×529 | / |
Max Cooling Capacity (kW) | 3.5 | 5 | 7.5 | 12.5 |
Air Flow (m³/h ) | 800 | 1100 | 1650 | 2200 |
Max Operating Current (A) | 11.5 | 16.5 | 20 | 35 |
Power Supply | 220V1Ph/50Hz | |||
Heater (kW) | 1 | 1 | 1 | 2 |
Humidification (kg/h) | 1 | 1 | 1.5 | 3 |
Dimensions (W×D×H)(mm) | 794×310×537 | 794×310×537 | 1045 ×431×760 | 1045 ×431 ×1375 |
Indoor unit weight for 760mm depth (kg) | 27 | 28 | 36 | 42 |
Indoor unit weight for 400mm depth (kg) | 25 | 26 | 36 | / |
Outdoor unit weight ( kg ) | 30 | 34 | 60 | 85 |
Strong drainage components | Standard | |||
Low-temperature start-up components | Optional |
Company Advantages
Suzhou Quick Thermal Control Technology Co.,LTD, which is Quick Thermal, is a supplier located in Our company is mainly providing Air Condionner,Heat Exchanger,Air Conditonner and Heat Exchangers solutions for industries like telecom,electric power,elevators. Quick Thermal innovates business setup and sincerely provides one-stop professional services for consumers. Customers who need our products are welcomed to contact us for consultation.
