Product details of the electrical cabinet ac units
Product Overview
Our focus on the details during the production makes Quick Thermal electrical cabinet ac units impeccable in details. Thanks to its good comprehensive properties, electrical cabinet ac units has found a wide application in advanced countries. Our electrical cabinet ac units can be used in a variety of industries to play a certain role. Being trusted by long-term partners, Quick Thermal is encouraged to produce higher-quality electrical cabinet ac units.
Product Description
Compared with products in the same category, electrical cabinet ac units's core competencies are mainly reflected in the following aspects.
Product Design Feature
The device is placed close to the heat source and features a backward-inclined EC centrifugal fan and an efficient copper tube heat exchanger, combined with a high-quality electronic expansion valve. The CFD-assisted optimized design significantly enhances heat exchange efficiency. These core components are not only durable but also energy-saving, ensuring the device's long-term stable operation. The PID ultra-precision control technology works in tandem with the variable frequency compressor and EC fan to ensure smooth operation throughout the entire lifecycle of the device, achieving a comprehensive energy saving of up to 1%.
The features of the TAR 0004 include its full-capacity design with an energy efficiency ratio of up to 3.5, which optimizes space utilization efficiency and reduces energy consumption. The standard strong water pump component effectively prevents potential water hazards within the cabinet, ensuring the safety of the equipment. The microcomputer intelligent control system's real-time monitoring and intelligent early warning functions further improve the reliability and stability of the device.
In addition, the quick connectors pre-installed on both indoor and outdoor units and the pre-charged refrigerant from the factory greatly simplify the on-site installation process, achieving welding-free installation and improving installation efficiency. The product size is 443×715×218mm, suitable for cabinets with a depth of 600mm to 800mm, ensuring a wide range of applicability.
In summary, the TAR 0004 air-cooled rack air conditioner is an ideal cooling solution for small IT cabinets and edge computing environments, with its high efficiency, energy-saving, intelligence, and simple installation and maintenance.
Product parameter
| Model | TAR 0004 |
| Power | 220VAC |
| Cooling Capacity | 3.5 kW |
| Function | Single cooling + heating/constant temperature and humidity control |
| Applicable cabinet depth | 760 mm deep version |
| Dimensions | 443×715×218 mm |
| Rated cooling capacity | 3.5 kW |
| Airflow | 800 m³/h |
| Maximum operating current | 11.5 A |
| Power supply specifications | 220V 1-phase / 50 Hz |
| Heating component | 1 kW |
| Humidification component | 1 kg/h |

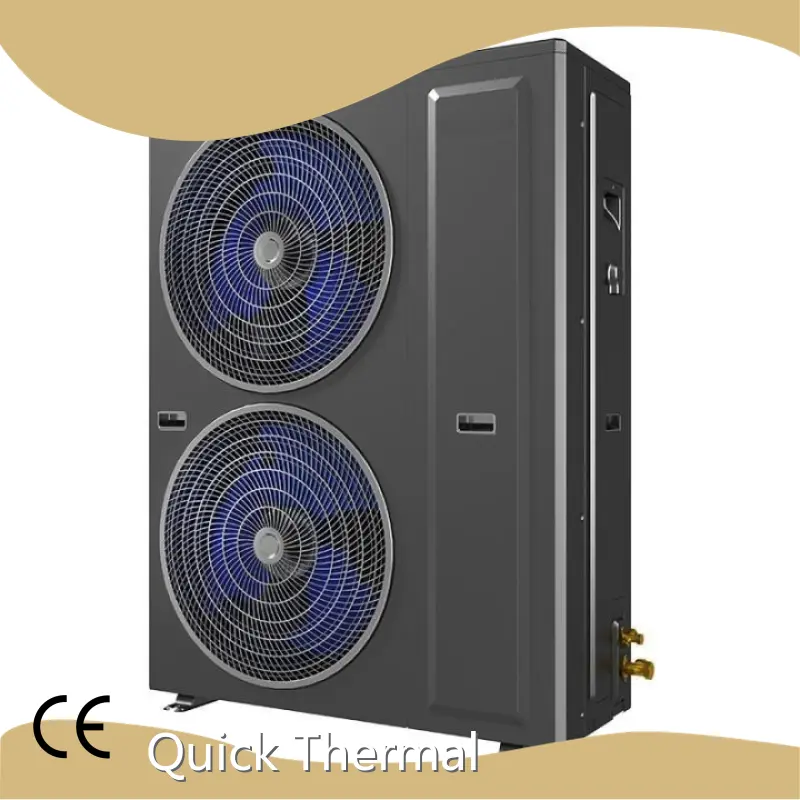

| Outdoor unit dimensions | 794×310×537 mm |
| Indoor unit weight | 27 kg |
| Outdoor unit weight | 30 kg |
| Strong drainage component | Standard equipment |
| Low-temperature startup component | Optional |
