Safe to Use Ac and Heater Combo Price List
Product Design Feature
The LED digital tube display provides users with an intuitive operation interface, facilitating on-site parameter setting and adjustment. High-quality components from well-known international brands and exquisite craftsmanship ensure the long-term stability and reliability of the equipment.
The environmentally friendly R134a refrigerant and multiple self-protection designs, such as overheating protection, further enhance the safety and environmental friendliness of the equipment. The product surface is treated with outdoor powder coating, with the standard color being RAL7035, enhancing corrosion resistance and weather resistance.
The TAE030/015/E/A series, compliant with CE and RoHS standards, demonstrates its commitment to high standards and quality, emphasizing safety and environmental protection.
Product parameter

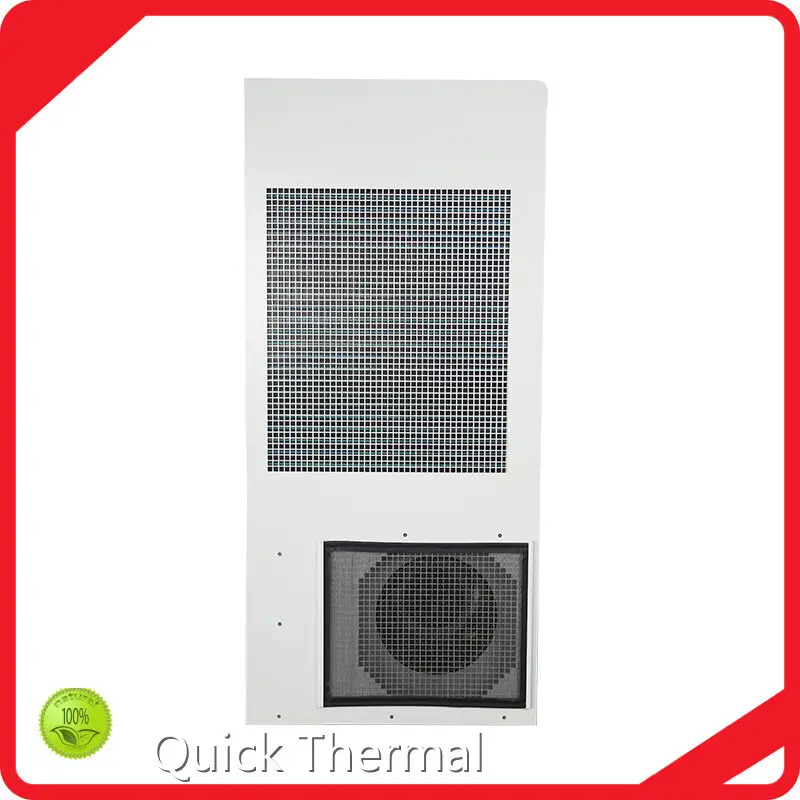

| Name | Combined Unit of A/C with HEX |
| Model | TAE030/015/E/A |
| Mounting Method | Semi-embedded Mounting |
| AC Power Supply | 230V+15%/50Hz |
| DC Power Supply | 48V±20% |
| Cooling Capacity | 3000W@L35/L35 |
| Cooling Consumption | AC 1100W @L35/L35 |
| DC 200W @L35/L35 | |
| Cooling Capacity | 2300W@L35/L55 |
| Cooling Consumption | AC 1430W @L35/L55 |
| DC 200W @L35/L55 | |
| Heat Exchange Capacity | 150W/K |
| Heat Exchange Consumption | DC 200W |
| Internal Airflow | 850m³/h |
| Cooling Working | -15℃~+55℃ |
| Temperature Range | |
| Heat Exchange internal | -40℃~+65℃ |
| circulation Temperature Range | |
| Heat Exchange external | -40℃~+55℃ |
| circulation Temperature Range | |
| Max Noise Level | 65dB(A) |
| IP Grade | IP55 |
| Net Weight | 65kg |
| Refrigerant | R134a |
| Dimensions | 1304x504x250 (mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface treatment | Outdoor type powdercoating, standardcolor: RAL7035 |
| Heater | Optional(800W) |
Company Advantages
· We develop Quick Thermal ac and heater combo as per the specifications laid by customers.
· Internal quality control team makes sure the comprehensive functionality.
· Customers' precious suggestions are always welcomed for our better ac and heater combo.
Company Features
· Owing to the development of strict management system, Quick Thermal has made great progress in ac and heater combo industry.
· Our manufacturing factory is equipped with some of the most leading-edge automated machining centers in the ac and heater combo industry. This enables us to meet customer demands for rapid response, on-time delivery, and exceptional quality.
· Better quality ac and heater combo and service are our goals. Ask online!
Application of the Product
Quick Thermal's ac and heater combo can be used in multiple industries and fields.
We have been engaged in the production and management of Air Condionner,Heat Exchanger,Air Conditonner and Heat Exchangers solutions for industries like telecom,electric power,elevators for many years. For some problems encountered by customers in the procurement, we have the ability to provide customers with a practical and effective solution to help customers solve problems better.
