Precision Air Conditioning System 16v by Quick Thermal
Product details of the precision air conditioning system
Product Specification
额定电压: 16v
Product Description
Quick Thermal precision air conditioning system is rich in design styles. It is specially engineered to save cost and labor. This product far exceeds other products in terms of performance/price ratio.
Product Design Feature

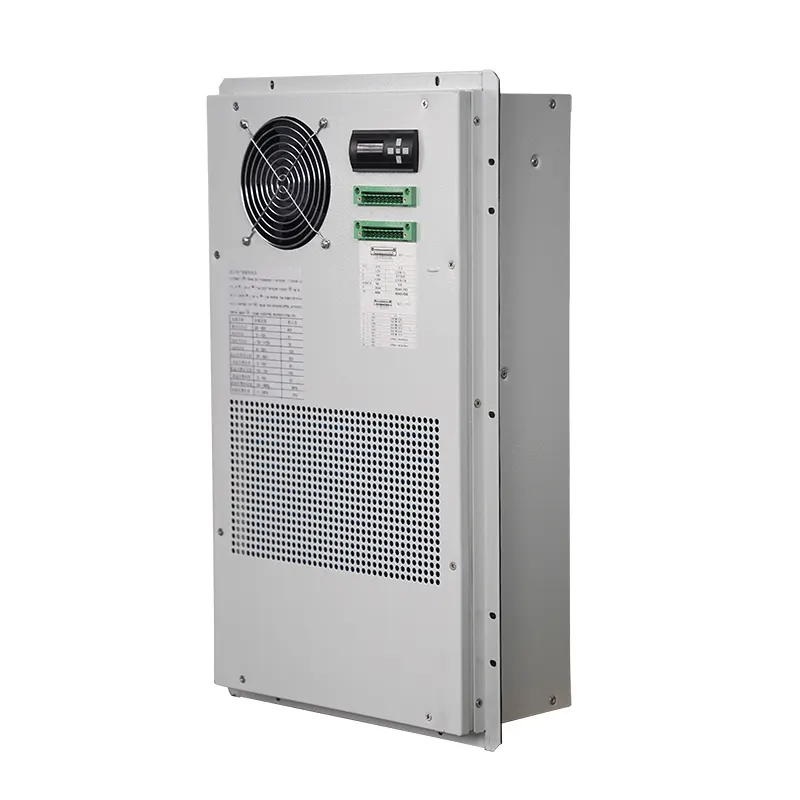

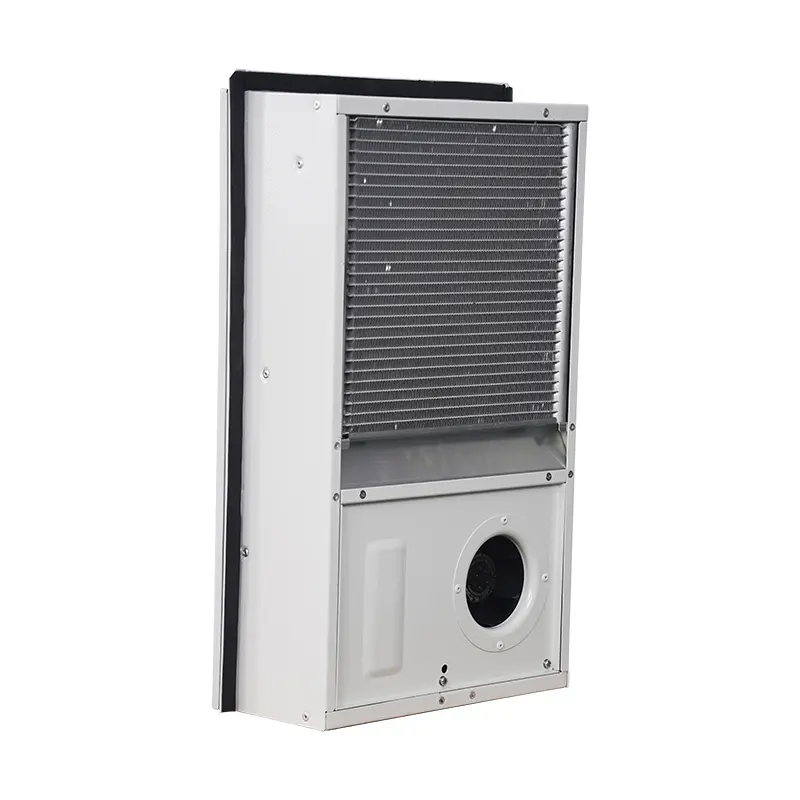

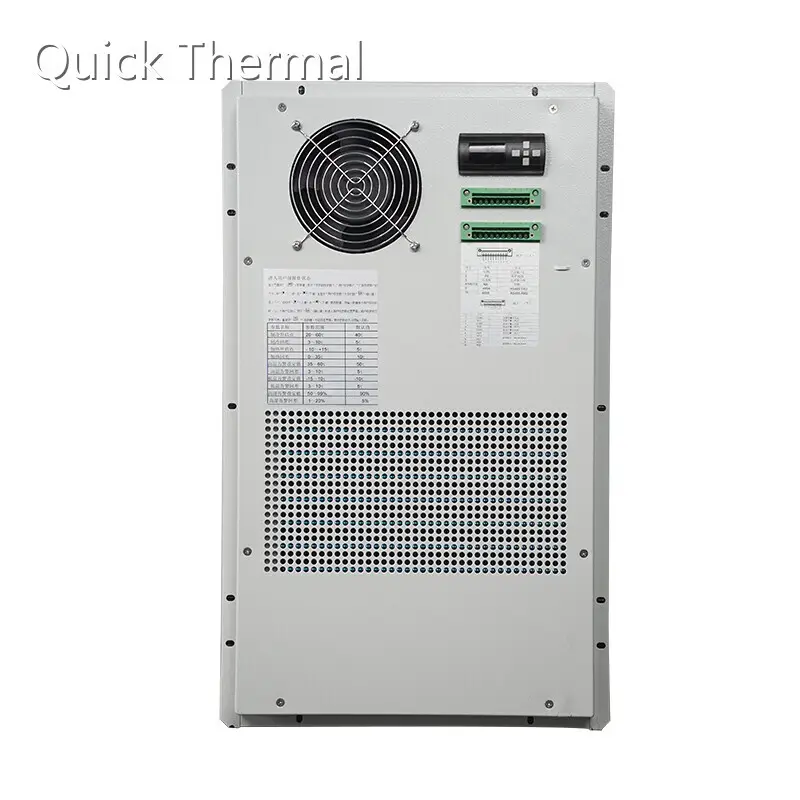

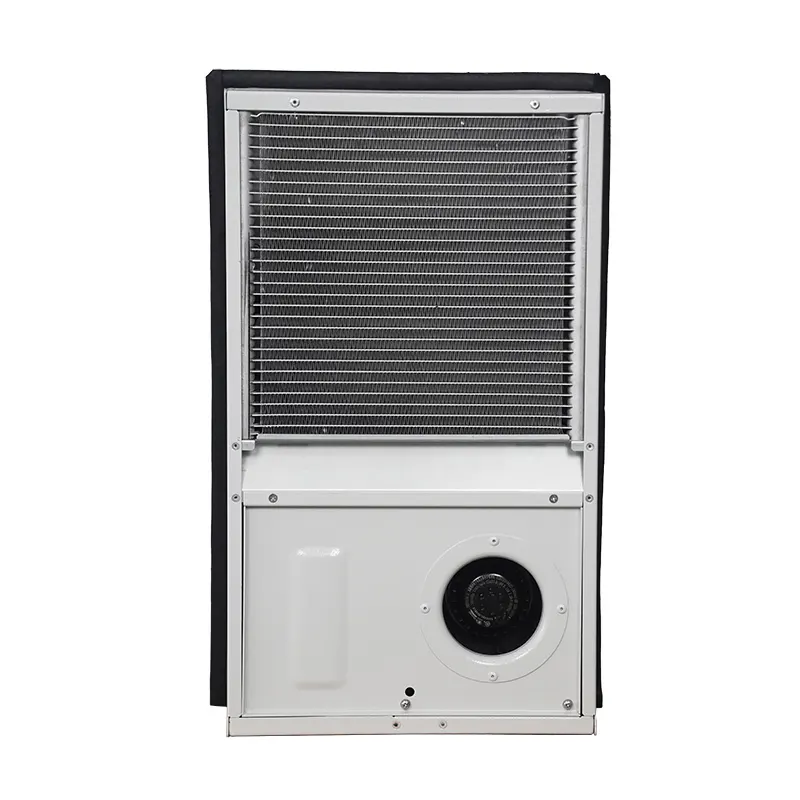

The TA 005 S/A features an RS485 communication port that supports the MODBUS-RTU protocol, enabling users to conduct remote monitoring and control operations efficiently. This feature significantly enhances the convenience of operation by allowing for centralized management of climate conditions across expansive or segmented industrial areas.
The air conditioner is also fitted with an LED display that, along with field-adjustable settings, provides an intuitive and flexible user experience. Users can easily configure the unit to meet specific temperature requirements and monitor system status in real-time.
Furthermore, the TA 005 S/A comes with multiple self-protection features and an integrated condensate evaporator, which not only boosts the unit's reliability but also simplifies maintenance routines. The lightweight design, weighing only 15kg, and the compact dimensions facilitate easy installation, relocation, and integration into existing spaces without the need for extensive structural modifications.
In summary, the TA 005 S/A air conditioner is a versatile, user-friendly, and environmentally considerate unit that offers a combination of advanced control, adaptability, and portability, making it an excellent choice for a wide range of indoor climate control applications.
Product parameter
| Name | Intdoor Cabinet Air Conditioner |
| Model | TA 005/S/A |
| Mounting Method | Side Mounting |
| Power Supply | 230VAC±15%50Hz/60Hz |
| Cooling Capacity | 500W@L35/L35 |
| Power Consumption | 210W@L35/L35 |
| Cooling Capacity | 300W@L35/L55 |
| Power Consumption | 260W@L35/L55 |
| Internal Airflow | 120 m³/h |
| Working Temperature Range | -40℃~+55℃ |
| Max Noise Level | 60dB(A) |
| IPGrade | IP55 |
| Net Weight | 15kg |
| Refrigerant | R134a |
| Dimensions(nominal) | 546x315x175(mm,HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating,standard color:RAL7035 |
| Filter net | Optional |
| Condensed water evaporator | Optional |
