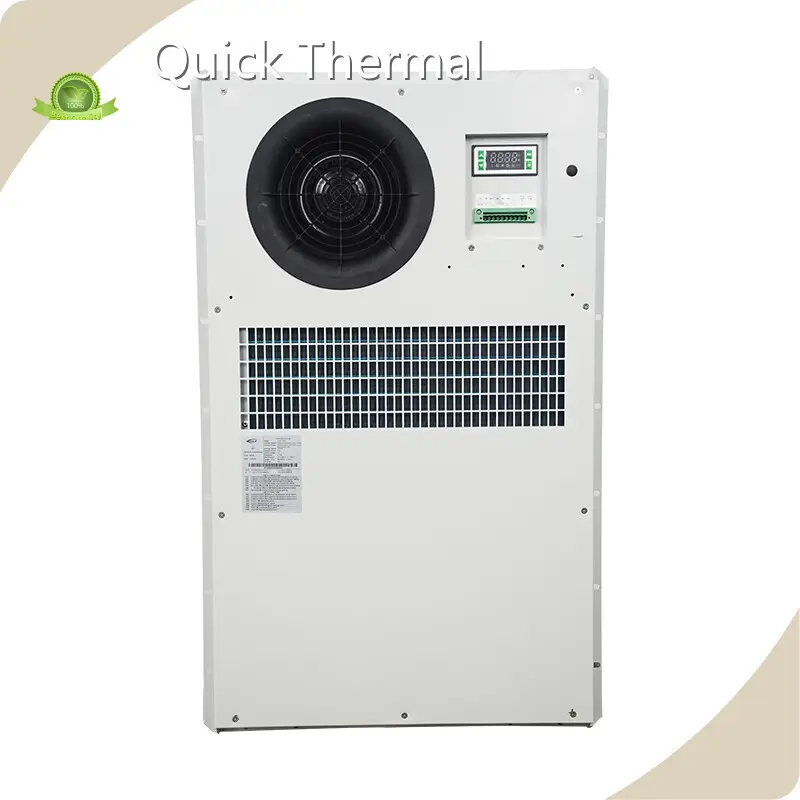

Product details of the industrial enclosure air conditioner
Product Introduction
industrial enclosure air conditioner is well sold in the state, and exported to many overseas markets. Compared with other products, this product has obvious advantages, longer service life and more stable performance. It has been tested by an authoritative third party. Suzhou Quick Thermal Control Technology Co.,LTD always defines products with standards and production guide.
Product Design Feature
Equipped with remote measurement, communication, and control capabilities, the product seamlessly integrates into existing automation systems through its RS422/RS485 communication port compatible with the MODBUS-RTU protocol. The intuitive LED display simplifies on-site parameter setting and monitoring, enhancing user convenience.
The product's energy-saving control technology and DC fan's PWM speed control not only optimize energy efficiency but also significantly reduce noise during low-speed operation, meeting the need for quiet environments. Additionally, the use of the environmentally friendly R134a refrigerant adapts to T3 high-temperature conditions while minimizing environmental impact.
Multiple self-protection designs, such as overheating and overload protection, provide additional safety for stable equipment operation. These designs ensure that the equipment can respond safely to abnormal conditions, reducing potential damage.
The surface treatment of the TAE 015/080 series uses outdoor powder coating, with the standard color being RAL7032, enhancing the product's corrosion resistance and weather resistance, making it suitable for various outdoor environments. The product design, compliant with CE and RoHS standards, demonstrates a commitment to safety and environmental protection.
Product parameter
| Name | Combined Unit of A/C with HEX |
| Model | TAE 015/080 /E/A/H10 |
| Mounting Method | Semi-embedded Mounting |
| AC Power Supply | 230V±15%/50Hz 60Hz |
| DC Power Supply | 48V±20% |
| Cooling Capacity | 1500W@L35/L35 |
| Cooling Consumption | AC560W @L35/L35 |
| DC 68W @L35/L35 | |
| Cooling Capacity | 1100W@L35/L55 |
| Cooling Consumption | AC 700W @L35/L55 |
| DC 68W @L35/L55 | |
| Heat Exchange Capacity | 80W/K |
| Heat Exchange Consumption | DC 68W |
| Internal Airflow | 450m³/h |
| Cooling Working | -15℃~+55℃ |
| Temperature Range | |
| Heat Exchange internal | 40℃~+65℃ |
| circulation Temperature Range | |
| Heat Exchange external | -40℃~+55℃ |
| circulation Temperature Range | |
| Max Noise Level | 65dB(A) |
| IP Grade | IP55 |
| Net Weight | 35kg |
| Refrigerant | R134a |
| Dimensions | 783x479x250 (mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface treatment | Outdoor type powdercoating, standardcolor: RAL7032 |
| Heater | Optional (1000W) |
Company Feature
• Founded in our company has explored a unique development path through the hard work of years.
• Our company is rich in talents, and has gathered a group of professional talents. They have excellent performance in R&D, technology, marketing and management.
• Quick Thermal's Air Condionner,Heat Exchanger,Air Conditonner and Heat Exchangers solutions for industries like telecom,electric power,elevators are not only sold well in the domestic first- and second-tier cities, but also exported to foreign markets in Southeast Asia, Central Asia, North America, and others.
Your contact is welcome. We have more discounts waiting for you!
