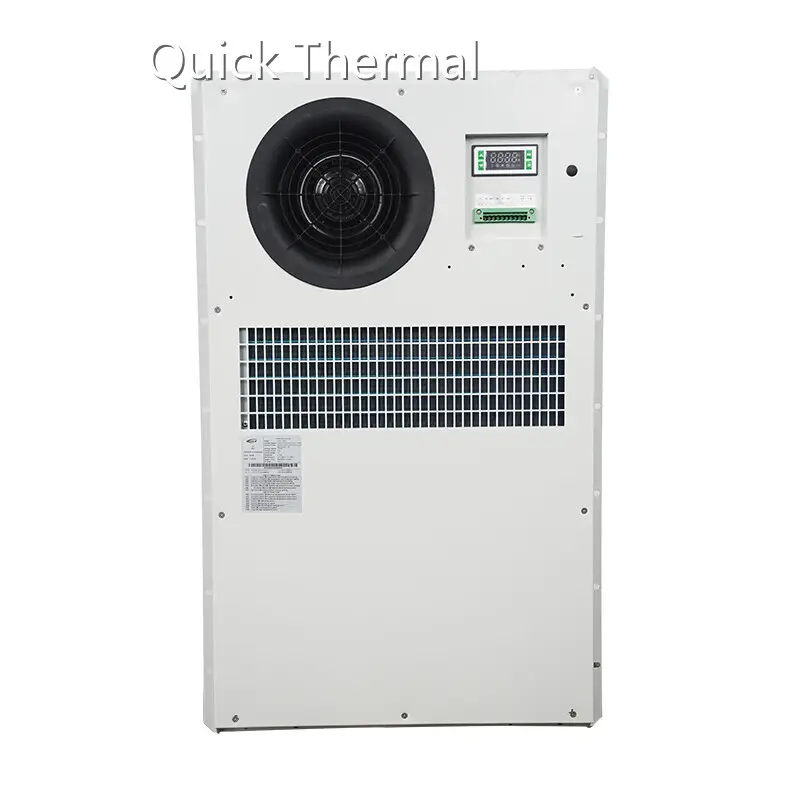

Heater Air Conditioner Combo by Quick Thermal
Product Design Feature
Equipped with remote measurement, communication, and control capabilities, the product seamlessly integrates into existing automation systems through its RS422/RS485 communication port compatible with the MODBUS-RTU protocol. The intuitive LED display simplifies on-site parameter setting and monitoring, enhancing user convenience.
The product's energy-saving control technology and DC fan's PWM speed control not only optimize energy efficiency but also significantly reduce noise during low-speed operation, meeting the need for quiet environments. Additionally, the use of the environmentally friendly R134a refrigerant adapts to T3 high-temperature conditions while minimizing environmental impact.
Multiple self-protection designs, such as overheating and overload protection, provide additional safety for stable equipment operation. These designs ensure that the equipment can respond safely to abnormal conditions, reducing potential damage.
The surface treatment of the TAE 015/080 series uses outdoor powder coating, with the standard color being RAL7032, enhancing the product's corrosion resistance and weather resistance, making it suitable for various outdoor environments. The product design, compliant with CE and RoHS standards, demonstrates a commitment to safety and environmental protection.
Product parameter
| Name | Combined Unit of A/C with HEX |
| Model | TAE 015/080 /E/A/H10 |
| Mounting Method | Semi-embedded Mounting |
| AC Power Supply | 230V±15%/50Hz 60Hz |
| DC Power Supply | 48V±20% |
| Cooling Capacity | 1500W@L35/L35 |
| Cooling Consumption | AC560W @L35/L35 |
| DC 68W @L35/L35 | |
| Cooling Capacity | 1100W@L35/L55 |
| Cooling Consumption | AC 700W @L35/L55 |
| DC 68W @L35/L55 | |
| Heat Exchange Capacity | 80W/K |
| Heat Exchange Consumption | DC 68W |
| Internal Airflow | 450m³/h |
| Cooling Working | -15℃~+55℃ |
| Temperature Range | |
| Heat Exchange internal | 40℃~+65℃ |
| circulation Temperature Range | |
| Heat Exchange external | -40℃~+55℃ |
| circulation Temperature Range | |
| Max Noise Level | 65dB(A) |
| IP Grade | IP55 |
| Net Weight | 35kg |
| Refrigerant | R134a |
| Dimensions | 783x479x250 (mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface treatment | Outdoor type powdercoating, standardcolor: RAL7032 |
| Heater | Optional (1000W) |
Company Advantages
· heater air conditioner combo will impress users with compelling features and distinctive styles.
· The product beats its competitors in overall performance and durability.
· Suzhou Quick Thermal Control Technology Co.,LTD has the perfect service quality and rigorous attitude of continuous improvement on heater air conditioner combo.
Company Features
· Among other similar heater air conditioner combo manufacturer, Quick Thermal is able to provide you with the finest products at a very reasonable price.
· The factory production lines of Suzhou Quick Thermal Control Technology Co.,LTD are all run under the international standard.
· To serve our customers with heart and soul is what we should do in Suzhou Quick Thermal Control Technology Co.,LTD. Call now!
Application of the Product
Our heater air conditioner combo is available in a wide range of applications.
Quick Thermal provides comprehensive and reasonable solutions based on customer's specific situations and needs.
