Electrical Cabinet Ac Unit Factory Price
Product details of the electrical cabinet ac unit
Product Overview
Quick Thermal electrical cabinet ac unit is the perfect example of the most exquisite craftsmanship in the industry. Stringent testings are performed to ensure quality, performance, and longevity. The electrical cabinet ac unit developed by our company can play a role in various fields. It is favored by customers both at home and abroad.
Product Description
In order to know electrical cabinet ac unit better, Quick Thermal will show you the specific details in the following section.
Product Design Feature

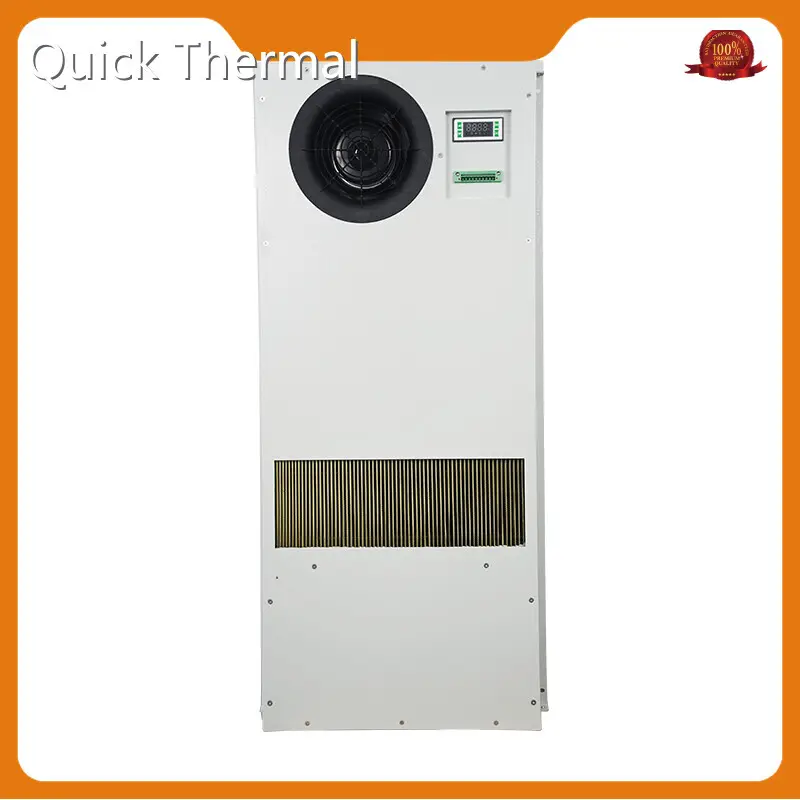

The 1168B TE 018 D D model features an LED display for intuitive and convenient on-site operation, enabling users to easily change settings to adapt to different working environments. Additionally, this model offers an optional heating function to meet specific temperature control needs in certain environments.
In terms of manufacturing, the 1168B TE 018 D D model employs strict quality control processes and uses components from internationally renowned brands, ensuring the product's high quality and long-term stable operation. It has multiple self-protection designs and interchangeable monitoring software interfaces, supporting the RS485 communication protocol for more intelligent and flexible device management.
Notably, the model's dry contact alarm output function provides both Normally Open (NO) and Normally Closed (NC) options to accommodate different safety monitoring requirements. Operating on a 48V DC power supply and equipped with an RS485 interface, the 1168B TE 018 D D model not only enables remote communication but also offers great convenience for system integration and management. It complies with the CE standard, demonstrating high standards in safety, health, and environmental protection.
In summary, the 1168B TE 018 D D model DC cabinet heat exchanger is an ideal choice for outdoor cabinet cooling, especially suitable for applications with higher heat dissipation requirements, thanks to its efficient heat dissipation, intelligent control, flexible configuration, and high standards of environmental safety performance.
Product parameter
| Name | Heat Exchanger |
| Code | 1168B |
| Model | TE 018/D/D |
| Mounting Method | Door Mounting |
| Power Supply DC | -48V±20% |
| Rated current DC | 4.4A |
| Start-up current DC | 5.3A |
| Cooling Capacity | 180W/K |
| Fans Power Consumption | 190W |
| Fans | 2*225 |
| Internal Airflow | 950m³/h |
| Rated voltage AC | NA |
| Frequency AC | NA |
| Rated current AC | NA |
| Heater Power | NA |
| Working Temperature Range | -40℃~+65℃ |
| Noise Level | 65dB(A) |
| IP Grade | IP55 |
| Net Weight | 50kg |
| Dimensions | 1250*522*240 (mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface Treatment | Outdoor type powder coating |
| standard color: RAL7035 |
