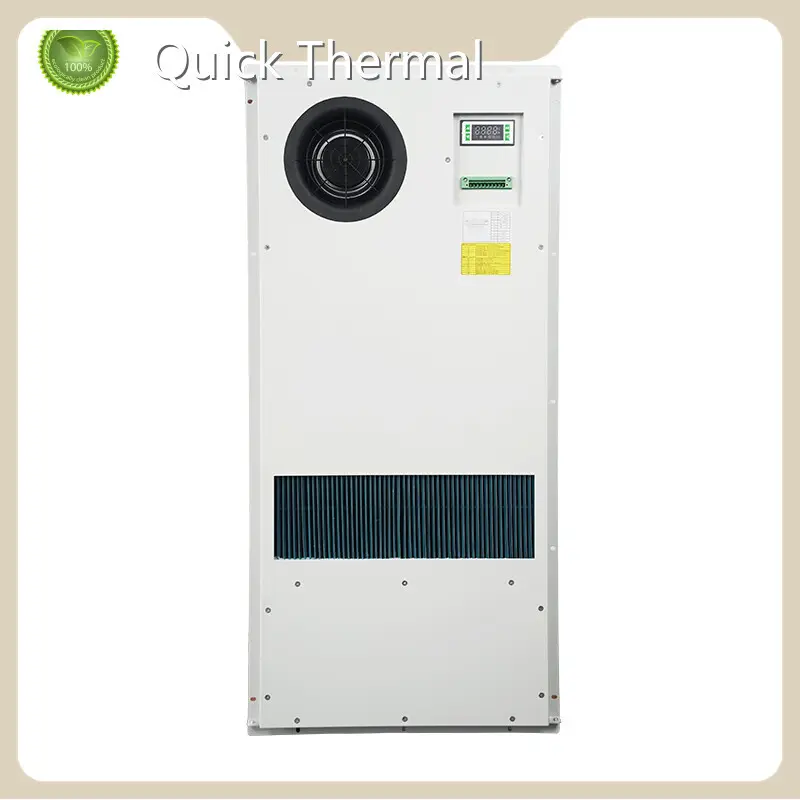

Electrical Cabinet Ac Unit by Quick Thermal-1
Company Advantages
· Quick Thermal electrical cabinet ac unit is manufactured adhering to international industry standards.
· The product is well-received in the market for its long service life and stable performance.
· Suzhou Quick Thermal Control Technology Co.,LTD expands current production facilities to boost shipping volume and to shorten lead-time.
Product Design Feature
Another significant advantage of the 12320 TE 004 E D model is its dry contact alarm output function, which offers normally open and normally closed options, providing flexibility for users to choose the configuration that best suits their specific monitoring and safety needs. Additionally, this heat exchanger is equipped with an RS485 interface, fully compliant with the MODBUS protocol, making it easy to integrate with existing intelligent control systems or automation systems for convenient remote monitoring and management.
High-Efficiency Cooling: With a cooling capacity of 40 watts per kilowatt, it ensures efficient heat dissipation under high thermal load conditions.
Environmental Adaptability: The IP55 protection rating allows the device to adapt to outdoor environments with dust and humidity.
Eco-Friendly Design: Both material selection and energy efficiency meet environmental requirements, reducing the impact on the environment.
Stepless Speed Regulation Technology: The stepless speed regulation function of the circulating fan adjusts the air volume according to real-time thermal load, improving energy efficiency.
Flexible Alarm System: The dry contact alarm output offers a choice between normally open and normally closed configurations to meet diverse monitoring needs.
Easy Integration: Support for RS485 and the MODBUS protocol simplifies the integration process with intelligent control systems.
The 12320 TE 004 E D model heat exchanger, with its high efficiency, eco-friendly design, strong adaptability, and integration capabilities, is an ideal cooling solution for outdoor communication cabinets. Whether in the hot summer or the cold winter, it ensures the stable operation of the equipment inside the cabinet, extends the service life of the equipment, reduces energy consumption, and aligns with the requirements for sustainable development.
Product parameter
| Name | DC Cabinet Heat-Exchanger |
| P/N | 12320 |
| Model | TE 004 /E/D |
| Mounting method | Door mounting |
| Power supply DC | -48VDC +/-20% |
| Rated current DC | 1.67A |
| Start-up current DC | 2.4 A |
| Cooling capacity | 40 W/K |
| Fan | MGT1748YB |
| Fan consumption | 80W |
| Internal airflow | 350 m³/h |
| Heater rated voltage AC | 220V |
| Heater frequency AC | 50Hz |
| Heater rated current AC | 2.27A |
| Heater power | Option(500W) |
| Working temperature range | - 10°C~+65°C |
| Noise level | 64dB(A) |
| IP grade | IP55 |
| Net weight | 20Kg |
| Dimensions | 622x344x200 (mm, HxWxD) |
| CE& RoHS compliant | Yes |
| Surface treatment | Outer door type powder coating |
| Standard color:RAL7035 |
Company Features
· With the huge advantages of large factories, Suzhou Quick Thermal Control Technology Co.,LTD is in the leading position in electrical cabinet ac unit field.
· All production equipment in Suzhou Quick Thermal Control Technology Co.,LTD is advanced in electrical cabinet ac unit industry.
· Our high-quality electrical cabinet ac unit enables us to bring a unique and substantial impact on our customers. Inquire online!
Product Details
The processing of electrical cabinet ac unit is carried out with the most advanced technology in the industry to ensure that the following details are better.
Product Comparison
We demand ourselves in the production of electrical cabinet ac unit with stricter standards. Based on this, we ensure that our products have advantages over the general products in the following aspects.
Enterprise Advantages
In recent years, our company has selected outstanding talents from many well-known institutions at home and abroad. After training, they became a highly educated team of high quality. Based on that, our company could achieve long-term development.
Quick Thermal, guided by customer needs, is committed to providing the best services for customers.
As a company with social responsibility, Quick Thermal has always adhered to the enterprise spirit of 'concentration, dedication, and professionalism'. We pay great attention to the reputation, customers, and integrity during business development. We constantly innovate and pursue excellence, with the commitment of becoming a modern enterprise with a good reputation in the domestic market.
Quick Thermal was established in We have rich industry experience because we have been focusing on the production and sales of Air Condionner,Heat Exchanger,Air Conditonner and Heat Exchangers solutions for industries like telecom,electric power,elevators for years.
Based on the domestic market, Quick Thermal is actively exploring foreign markets.
