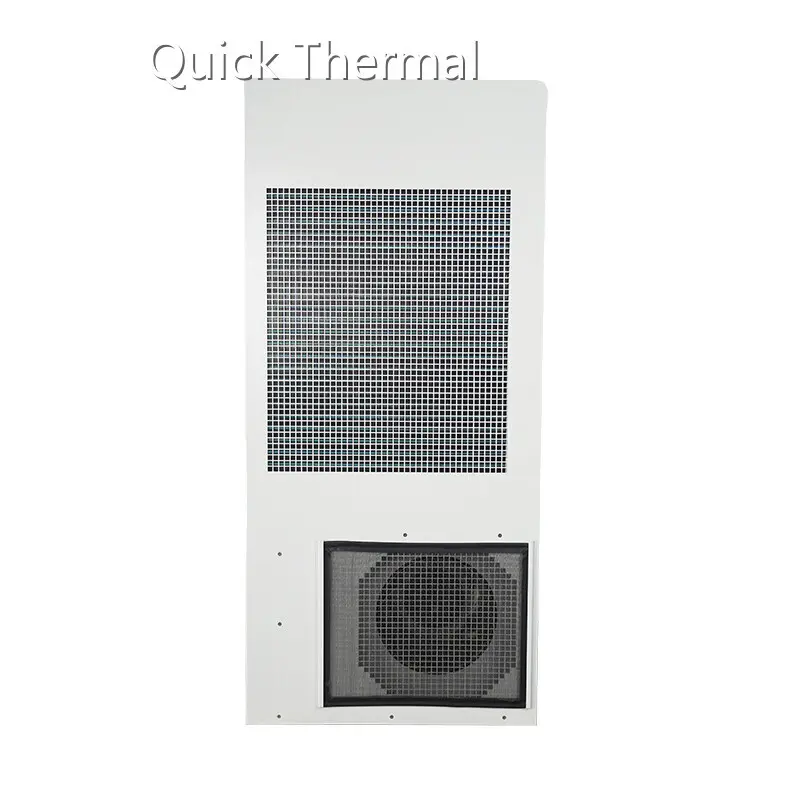

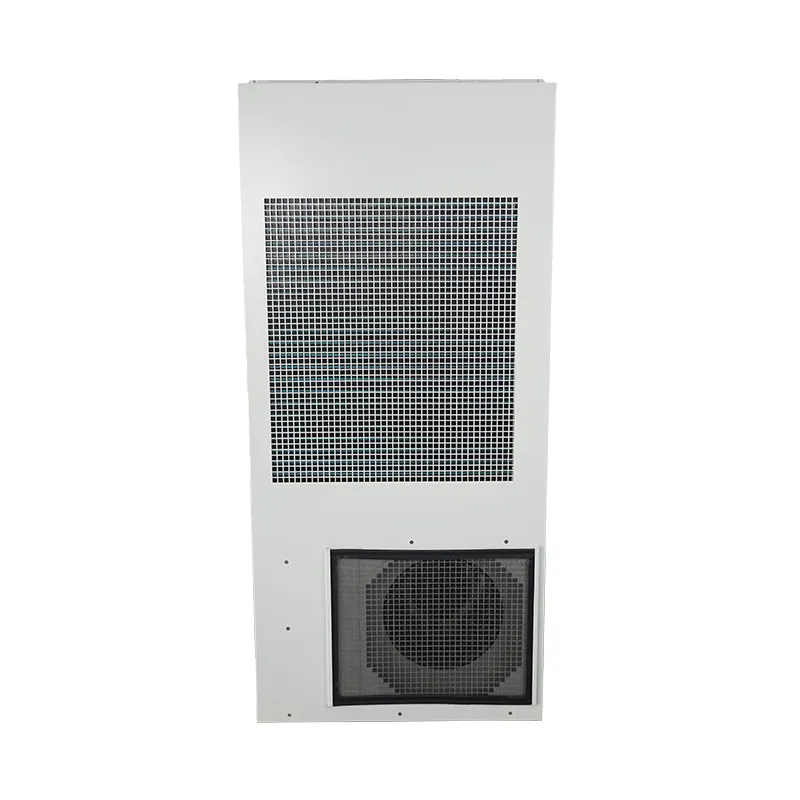

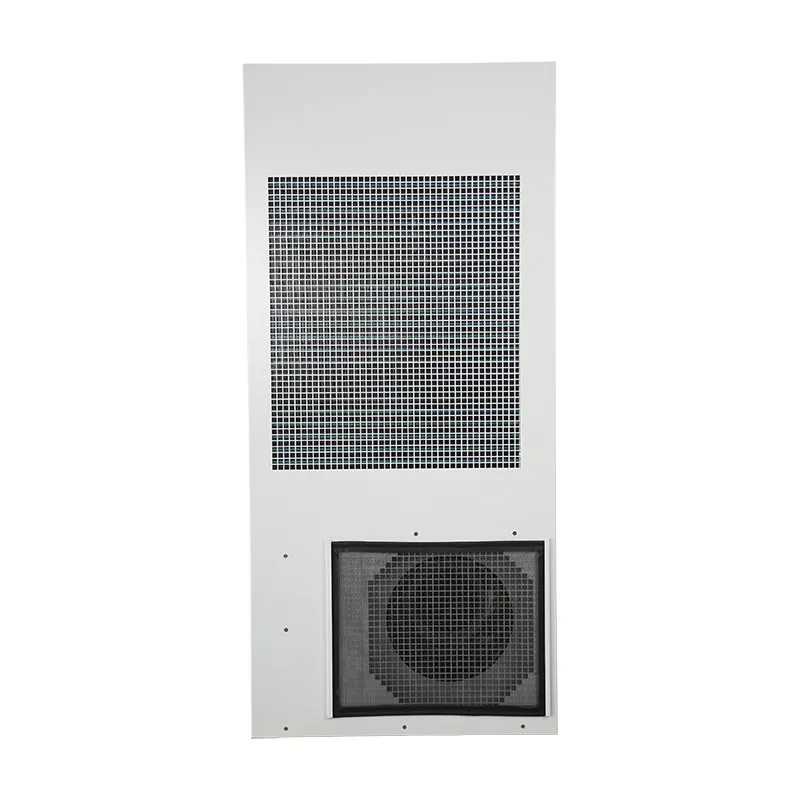

Product details of the cabinet ac unit
Product Information
Quick Thermal cabinet ac unit is designed to be as accessible and usable as possible. cabinet ac unit offer the best performance for its price. With our continual efforts in product R&D, the product is sure to have a greater market application in the future.
Product Design Feature
The LED digital tube display provides users with an intuitive operation interface, facilitating on-site parameter setting and adjustment. High-quality components from well-known international brands and exquisite craftsmanship ensure the long-term stability and reliability of the equipment.
The environmentally friendly R134a refrigerant and multiple self-protection designs, such as overheating protection, further enhance the safety and environmental friendliness of the equipment. The product surface is treated with outdoor powder coating, with the standard color being RAL7035, enhancing corrosion resistance and weather resistance.
The TAE030/015/E/A series, compliant with CE and RoHS standards, demonstrates its commitment to high standards and quality, emphasizing safety and environmental protection.
Product parameter
| Name | Combined Unit of A/C with HEX |
| Model | TAE030/015/E/A |
| Mounting Method | Semi-embedded Mounting |
| AC Power Supply | 230V+15%/50Hz |
| DC Power Supply | 48V±20% |
| Cooling Capacity | 3000W@L35/L35 |
| Cooling Consumption | AC 1100W @L35/L35 |
| DC 200W @L35/L35 | |
| Cooling Capacity | 2300W@L35/L55 |
| Cooling Consumption | AC 1430W @L35/L55 |
| DC 200W @L35/L55 | |
| Heat Exchange Capacity | 150W/K |
| Heat Exchange Consumption | DC 200W |
| Internal Airflow | 850m³/h |
| Cooling Working | -15℃~+55℃ |
| Temperature Range | |
| Heat Exchange internal | -40℃~+65℃ |
| circulation Temperature Range | |
| Heat Exchange external | -40℃~+55℃ |
| circulation Temperature Range | |
| Max Noise Level | 65dB(A) |
| IP Grade | IP55 |
| Net Weight | 65kg |
| Refrigerant | R134a |
| Dimensions | 1304x504x250 (mm, HxWxD) |
| CE&RoHS Compliant | YES |
| Surface treatment | Outdoor type powdercoating, standardcolor: RAL7035 |
| Heater | Optional(800W) |
