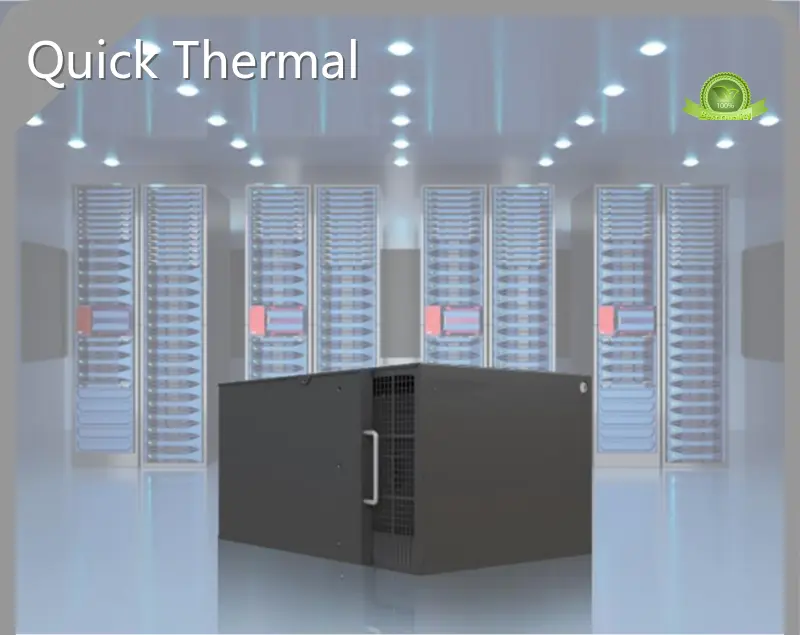

Cabinet Ac - - Quick Thermal
Product Design Feature
Product parameter
| Model/Spec | 3.5kw | 5.0kw | 7.5kw | 12.5kw |
| Model | TAR 0004 | TAR 0005 | TAR 0008 | TAR 0013 |
| Function | Cooling + heating/constant temperature and humidity | |||
| 760 Depth (W×D×H)(mm) | 443×715×218 | 443×715×218 | 443×715×351 | 443×715×440 |
| Function | Cooling + heating | |||
| 400 Depth (W×D×H)(mm) | 444×395×352 | 444×395×352 | 444×395×529 | / |
| Max Cooling Capacity (kW) | 3.5 | 5 | 7.5 | 12.5 |
| Air Flow (m³/h ) | 800 | 1100 | 1650 | 2200 |
| Max Operating Current (A) | 11.5 | 16.5 | 20 | 35 |
| Power Supply | 220V1Ph/50Hz | |||
| Heater (kW） | 1 | 1 | 1 | 2 |
| Humidification (kg/h) | 1 | 1 | 1.5 | 3 |
| Dimensions (W×D×H)(mm) | 794×310×537 | 794×310×537 | 1045 ×431×760 | 1045 ×431 ×1375 |
| Indoor unit weight for 760mm depth (kg) | 27 | 28 | 36 | 42 |
| Indoor unit weight for 400mm depth (kg) | 25 | 26 | 36 | / |
| Outdoor unit weight ( kg ) | 30 | 34 | 60 | 85 |
| Strong drainage components | Standard | |||
| Low-temperature start-up components | Optional | |||
Company Advantages
· Quick Thermal cabinet ac is fabricated using the best grade raw material and sophisticated technology.
· The product quality is reliable, the performance is stable, the service life is long.
· Suzhou Quick Thermal Control Technology Co.,LTD increases the added value of traditional cabinet ac products.
Company Features
· Primarily producing a wide range of cabinet ac, Suzhou Quick Thermal Control Technology Co.,LTD is popular among customers.
· We have employed a team of testing engineers. They take meticulous steps to fully verify each product we manufacture, ensuring the product can meet the quality standards.
· Quality is the principle of producing cabinet ac.
Application of the Product
Quick Thermal's cabinet ac is widely applicable in the industry.
While providing excellent products, Quick Thermal is dedicated to providing personalized solutions for customers according to their needs and actual situations.
